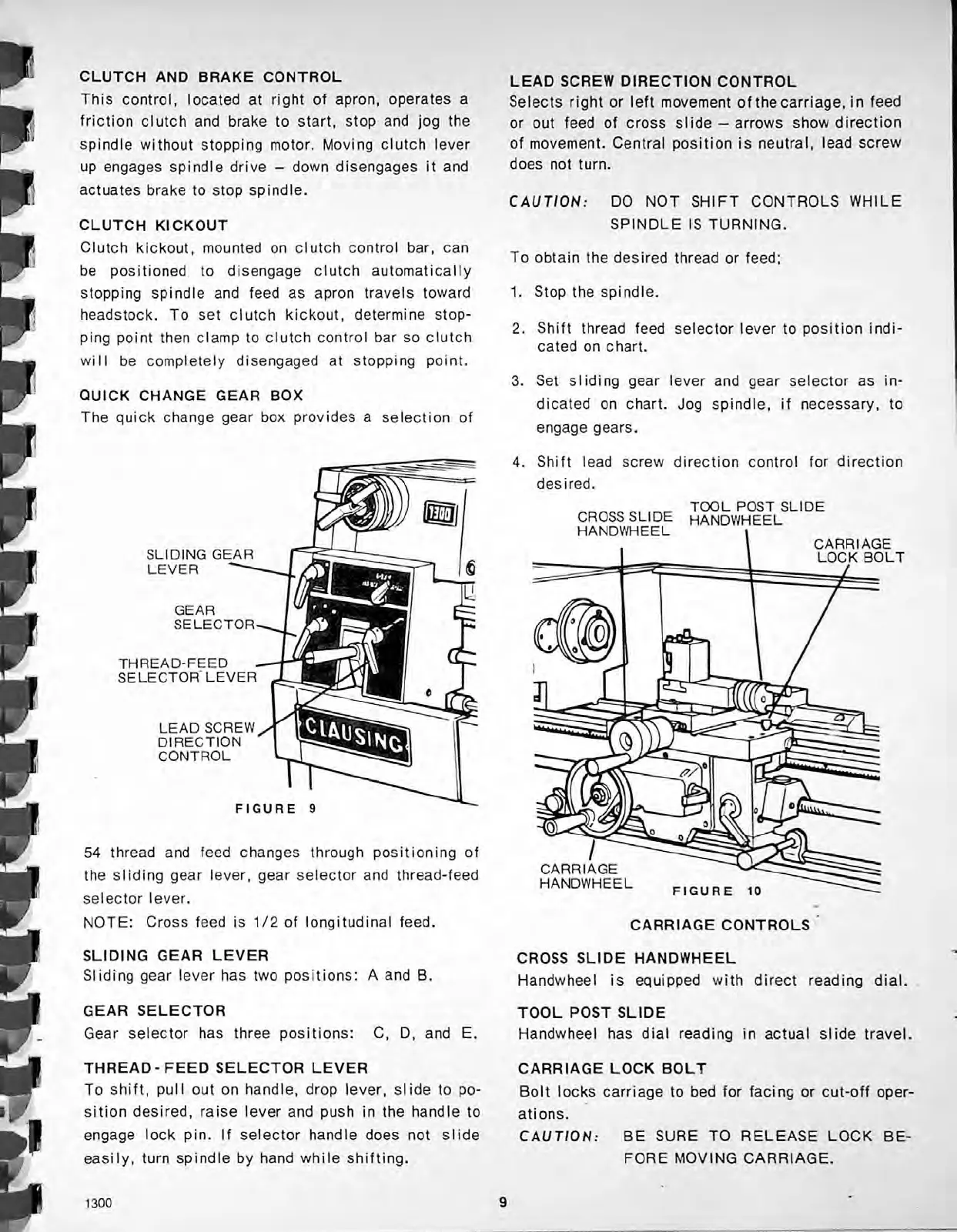

CLAUSING 1300 Series - Clutch and Brake Controls; Gear Box Controls; Lead Screw Control; Carriage Controls

CLUTCH AND BRAKE CONTROL
This control, located at right of apron, operates a
friction clutch and brake to start, stop and jog the
spindle without stopping motor. Moving clutch lever
up engages spindle drive - down disengages it and
actuates brake to stop spindle.
LEAD SCREW DIRECTION CONTROL
Selects right or left movement of the carriage, in feed
or out feed of cross slide - arrows show direction
of movement. Central position is neutral, lead screw
does not turn.
CAUTION: DO NOT SHIFT CONTROLS WHILE
SPINDLE IS TURNING.
CLUTCH KICKOUT
Clutch kickout, mounted on clutch control bar, can
be positioned to disengage clutch automatically
stopping spindle and feed as apron travels toward
headstock. To set clutch kickout, determine stop 
ping point then clamp to clutch control bar so clutch
will be completely disengaged at stopping point.
To obtain the desired thread or feed;
1. Stop the spindle.
2. Shift thread feed selector lever to position indi 
cated on chart.
3. Set sliding gear lever and gear selector as in 
dicated on chart. Jog spindle, if necessary, to
engage gears.
QUICK CHANGE GEAR BOX
The quick change gear box provides a selection of
I
i
4. Shift lead screw direction control for direction
desired.
^ TOOL POST SLIDE
CROSS SLIDE HANDWHEEL
HANDWHEEL l
JR
CARRIAGE
LOCK BOLT
SLIDING GEAR
LEVER
GEAR
SELECTOR
\
THREAD-FEED
SELECTOR LEVER
e
o
LEAD SCREW/
DIRECTION
CONTROL
c
FIGURE 9
c
3
O
.0
0
/
54 thread and feed changes through positioning of
the sliding gear lever, gear selector and thread-feed
selector lever.
NOTE: Cross feed is 1/2 of longitudinal feed.
CARRIAGE
HANDWHEEL
FIGURE 10
CARRIAGE CONTROLS
SLIDING GEAR LEVER
Sliding
gear lever has two positions: A and B.
CROSS SLIDE HANDWHEEL
Handwheel
is equipped with direct reading dial.
GEAR SELECTOR
Gear selector has three positions:
TOOL POST SLIDE
Handwheel has dial reading in actual slide travel.
C, D, and E.
THREAD-FEED SELECTOR LEVER
To shift, pull out on handle, drop lever, slide to po 
sition desired, raise lever and push in the handle to
engage lock pin. If selector handle does not slide
easily, turn spindle by hand while shifting.
CARRIAGE LOCK BOLT
Bolt locks carriage to bed for facing or cut-off oper 
ations.
CAUTION:
BE SURE TO RELEASE LOCK BE 
FORE MOVING CARRIAGE.
9 1300
