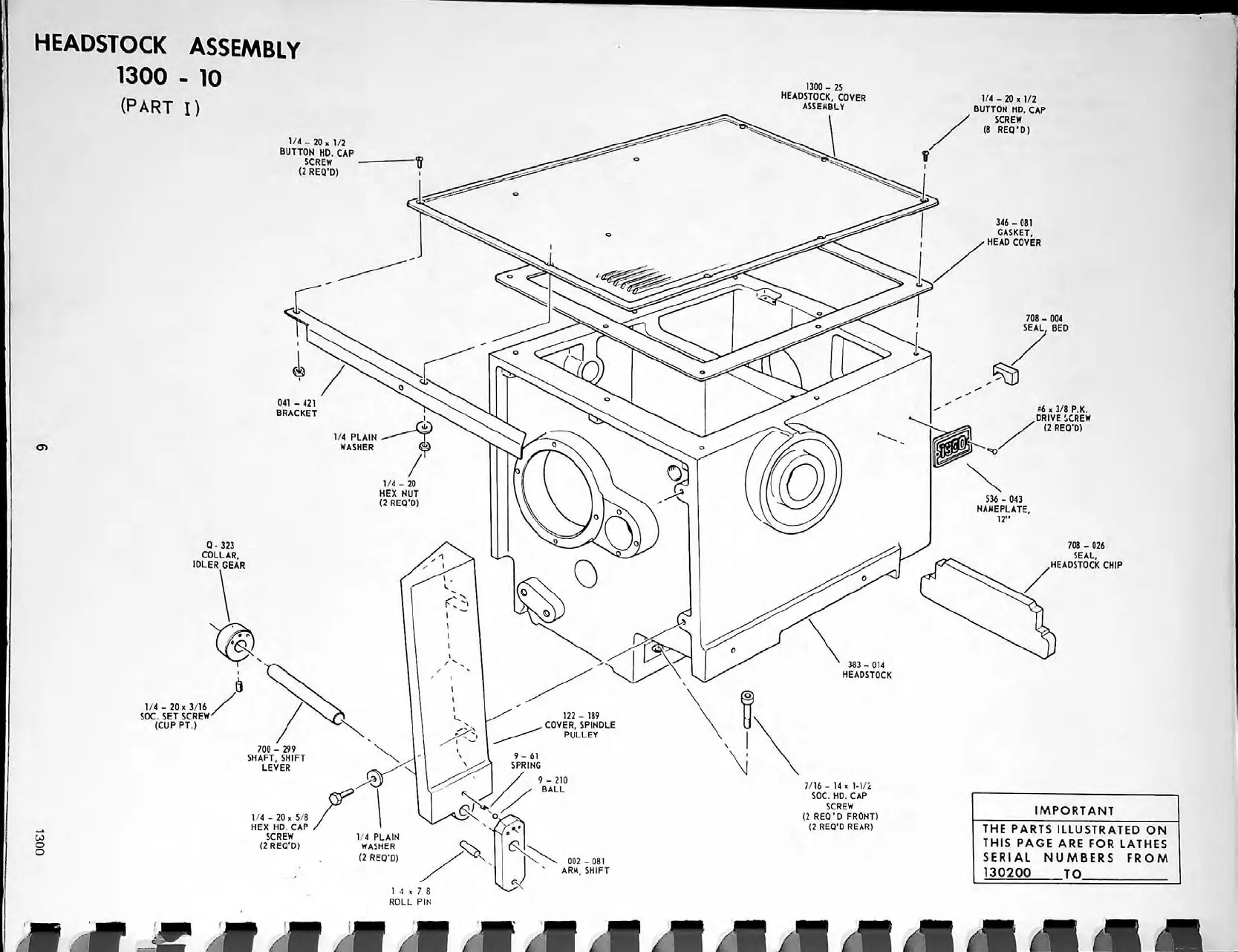

CLAUSING 1300 Series - Headstock Assembly (Part I)

HEADSTOCK ASSEMBLY
1300 - 10
(PART I)
1300 - 25
HEADSTOCK, COVER
ASSEMBLY
1/4 - 20 x 1/2
BUTTON HD. CAP
SCREW
(8 REQ ’ D)
1/4 - 20 x 1/2
BUTTON HD. CAP
SCREW
(2 REQ'D)
346 - 081
GASKET,
HEAD COVER
708 - 004
SEAL, BED
041 - 421
«6 x 3/8 P.K.
DRIVE SCREW
(2 REQ'D)
BRACKET
1/4 PLAIN
WASHER
CD
1/4 - 20
HEX NUT
536 - 043
(2 REQ'D]
!
NAMEPLATE,
12 ”
Q- 323 708 - 026
SEAL,
HEADSTOCK CHIP
COLLAR,
IDLER GEAR
383 - 014
HEADSTOCK
1/4 - 20 x 3/16
SOC. SET SCREW
(CUP PT.)
700 - 299
SHAFT, SHIFT
LEVER
7/16 - 14 x 1-1/2
BALL
SOC. HD. CAP
SCREW
IMPORTANT
(2 REQ'D FRONT)
1/4 - 20 x 5/8
(2 REQ'D REAR) HEX HD. CAP
THE PARTS ILLUSTRATED ON
THIS PAGE ARE FOR LATHES
SERIAL NUMBERS FROM
CO
SCREW
14 PLAIN
(2 REQ ’ D)
O
WASHER
O
(2 REQ'D)
002 - 081
ARM. SHIFT
130200
TO
14x78
ROLL PIN
