CLAUSING 1300 Series - Mounting Chucks and Face Plates

REFERENCE MARK ON SPINDLE NOSE
CAM RELEASE LINE
CORRECT ^
CAM LOCK LINE
BETWEEN ARROWS
I
WRONG
TURN STUD OUT
ONE TURN
WRONG
TURN STUD IN
ONE TURN

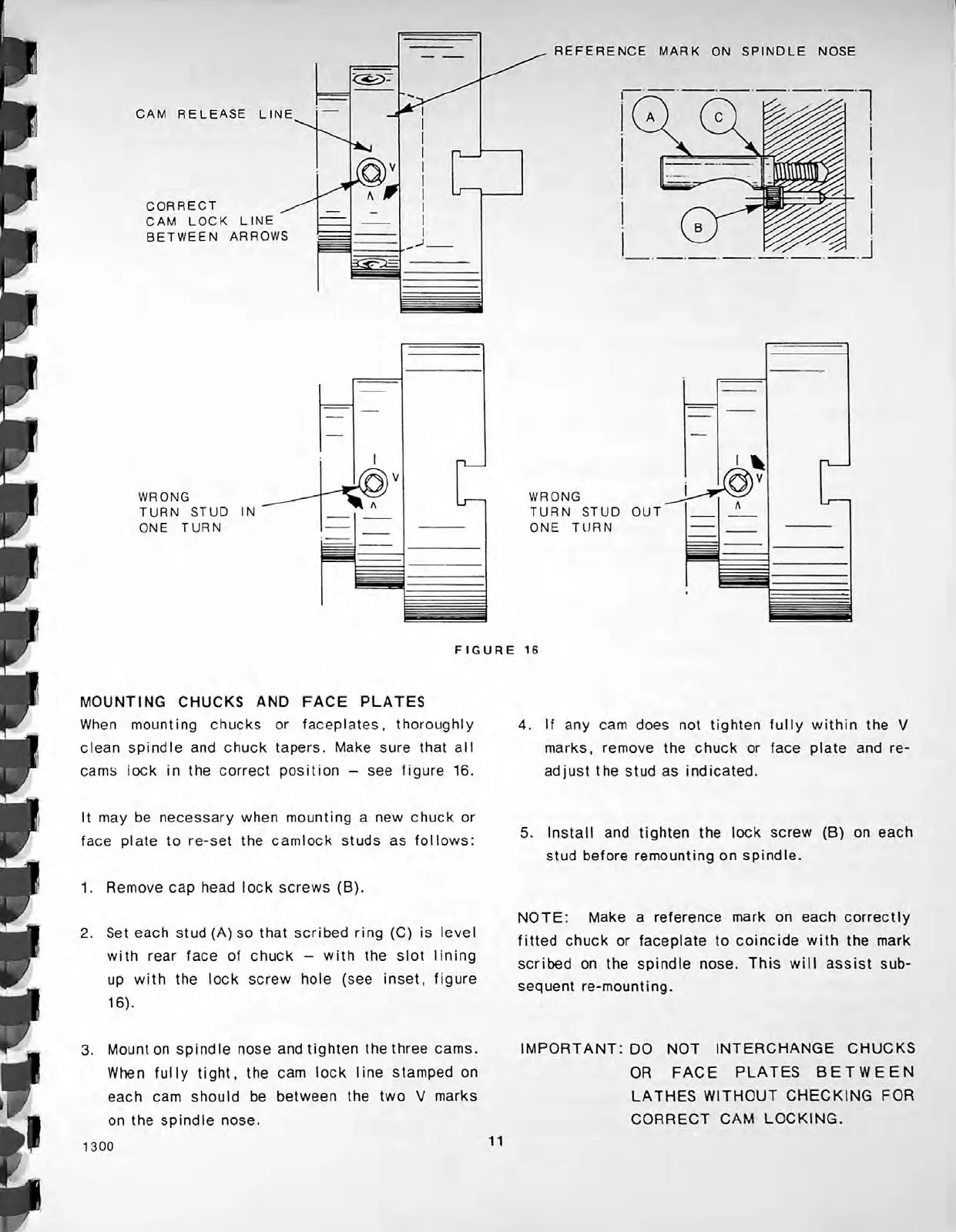

FIGURE 16
MOUNTING CHUCKS AND FACE PLATES
When
mounting chucks or faceplates, thoroughly
clean spindle and chuck tapers. Make sure that all
cams lock in the correct position — see figure 16.
4. If any cam does not tighten fully within the V
marks, remove the chuck or face plate and re 
adjust the stud as indicated.
It may be necessary when mounting a new chuck or
face plate to re-set the camlock studs as follows:
5. Install and tighten the lock screw (B) on each
stud before remounting on spindle.
Remove cap head lock screws (B).
1.
Make a reference mark on each correctly
fitted chuck or faceplate to coincide with the mark
scribed on the spindle nose. This will assist sub 
sequent re-mounting.
NOTE:
Set each stud (A) so that scribed ring (C) is level
with rear face of chuck - with the slot lining
up with the lock screw hole (see inset, figure
16).
2.
IMPORTANT:DO NOT INTERCHANGE CHUCKS
OR FACE PLATES BETWEEN
LATHES WITHOUT CHECKING FOR
CORRECT CAM LOCKING.
Mount on spindle nose and tighten the three cams.
When fully tight, the cam lock line stamped on
each cam should be between the two V marks
on the spindle nose.
3.
