CLAUSING 1300 Series - Gear Train Assembly

■■

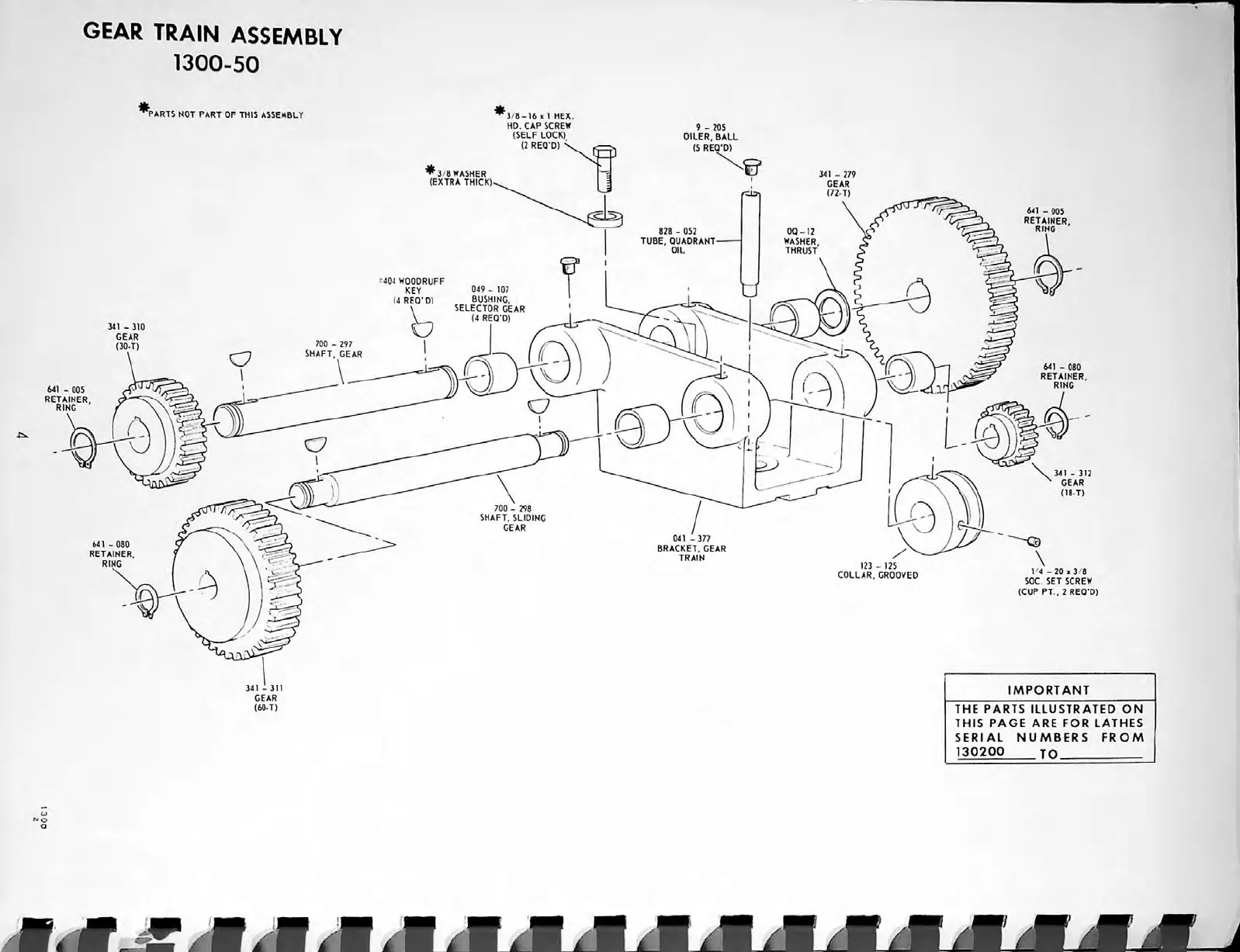

GEAR TRAIN ASSEMBLY
1300-50
^PARTS NOT PART OF THIS ASSEMBLY
**3/8-16 * 1 HEX.
HD. CAP SCREW
(SELF LOCK)
(2 REQ ’ D)
9 - 205
OILER, BALL
(5 REQ ’ D)
■**3/8 WASHER 341 - 279
(EXTRA THICK)
GEAR
641 - 005
RETAINER,
•404 WOODRUFF
049 - 107
KEY
BUSHING,
(4 REQ ’ D)
641 - 080
RETAINER,
641 - 005
RETAINER.
341 - 312
GEAR
(18-T)
641 - 080
RETAINER.
14 - 20 » 3 8
COLLAR,GROOVED
SOC SET SCREW
(CUP PT., 2 REQ ’ D)
341 - 311
GEAR
(60-T)
IMPORTANT
THE PARTS ILLUSTRATED ON
THIS PAGE ARE FOR LATHES
SERIAL NUMBERS FROM
130200
TO
£J
N> O
