CLAUSING 1300 Series - Page 32

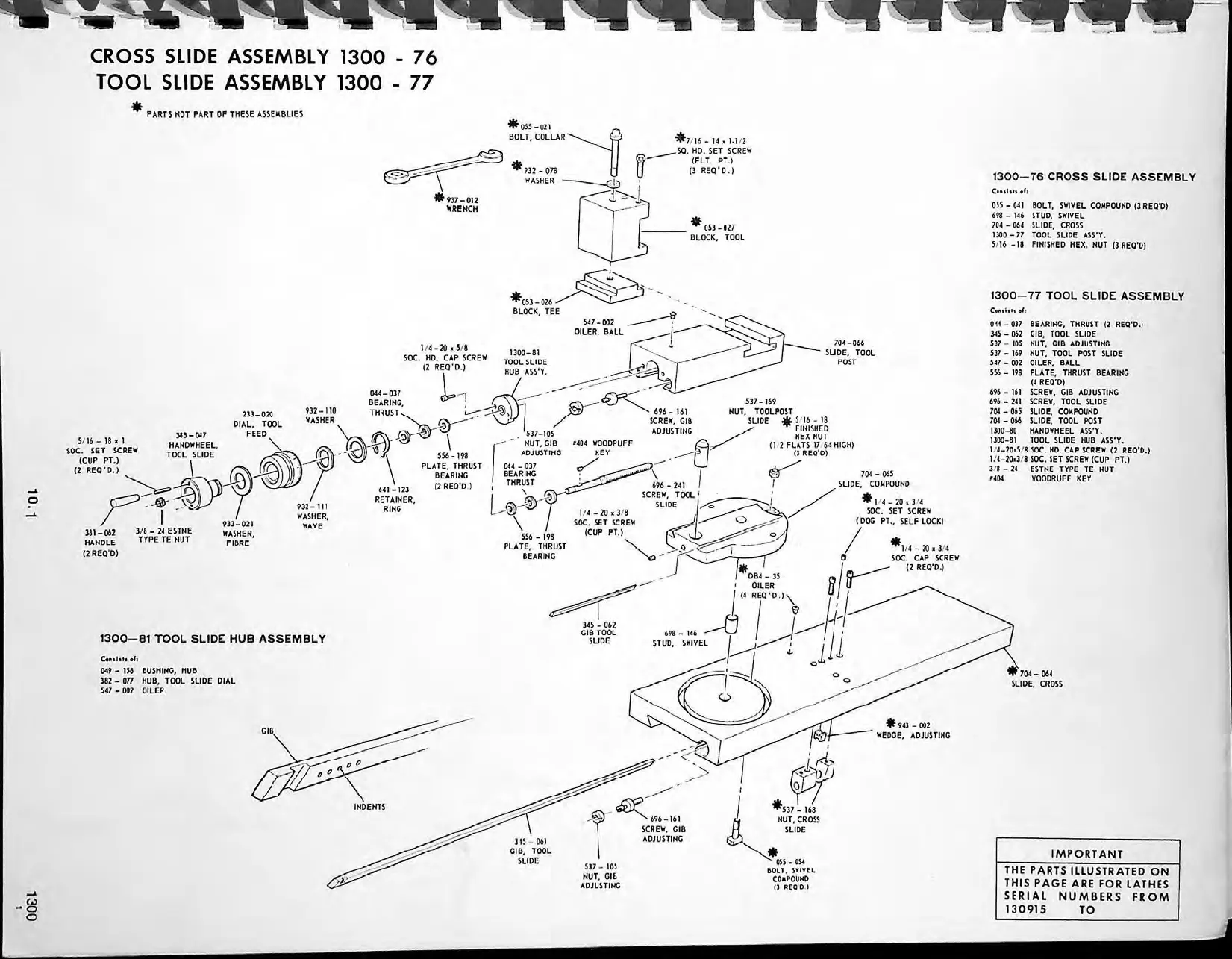

CROSS SLIDE ASSEMBLY 1300 - 76
TOOL SLIDE ASSEMBLY 1300 - 77
*
PARTS NOT PART OF THESE ASSEMBLIES
■#■055 -021
BOLT, COLLAR
‘ 7/16 - 14 * 1.1/2
SQ. HO. SET SCREW
(FLT. PT.)
(3 REQ ’ D.) 932 - 078
1300 — 76 CROSS SLIDE ASSEMBLY
WASHER
Comliti of:
#937-012
055 - 041 BOLT, SWIVEL COMPOUND (3 REQ ’ D)
693 - 146 STUD, SWIVEL
704 - 064 SLIDE. CROSS
1300 - 77 TOOL SLIDE ASS ’ Y.
5/16 -18 FINISHED HEX. NUT (3 REQ ’ D)
WRENCH
053-027
BLOCK, TOOL
1300-77 TOOL SLIDE ASSEMBLY
*1*053-026
BLOCK. TEE
Contittt of:
044 - 037 BEARING, THRUST (2 REQ ’ D.)
345 - 062 GIB, TOOL SLIDE
537 - 105 NUT, GIB ADJUSTING
537 - 169 NUT, TOOL POST SLIDE
547 - 002 OILER, BALL
556 - 198 PLATE, THRUST BEARING
(4 REQ'D)
696 - 161 SCREW, GIB ADJUSTING
696 - 241 SCREW, TOOL SLIDE
704 - 065 SLIDE, COMPOUND
704 - 066 SLIDE, TOOL POST
1300-30
1300-81
OILER. BALL
704-066
SLIDE, TOOL
POST
1/4-20 * 5/8
1300-81
SOC. HD. CAP SCREW
TOOL SLIDE
(2 REQ ’ D.)
044-037
537- 169
BEARING.
932-110
596 - 161
NUT, TOOLPOST
THRUST
233-020
XL 5 16 - 18
^ FINISHED
HEX NUT
(12 FLATS 17 64 HIGH)
(3 REQ'D)
WASHER
SCREW, GIB SLIDE
DIAL, TOOL
HANDWHEEL ASS ’ Y.
TOOL SLIDE HUB ASS ’ Y.
1/4-20x5 ‘ 8 SOC. HD. CAPSCREW (2 REQ'D.)
1.4-20.3/8 SOC. SET SCREW (CUP PT.)
ESTNE TYPE TE NUT
WOODRUFF KEY
ADJUSTING
537-105
388 - 047
5/16 - 18 x 1
SOC. SET SCREW
(CUP PT.)
(2 REQ ’ D.)
NUT, GIB *404 WOODRUFF
HANDWHEEL,
ADJUSTING
KEY
TOOL SLIDE
PLATE, THRUST 044 - 037
3/8 - 24
BEARING
704 - 065
BEARING
*404
THRUST
SLIDE, COMPOUND
(2 REQ'D )
U-®
SCREW, TOOL 1
■#1 4 - 20 x 3 A
as
RETAINER, O
SLIDE
932- 111
RING
SOC. SET SCREW
1/4 - 20 x 3/8
WASHER,
\
[DOG PT,, SELF LOCK)
SOC, SET SCREW
933-021
WASHER,
FIBRE
WAVE
3/8 - 24 ESTNE
TYPE TE NUT
(CUP PT.) 381-062
HANDLE
(2 REQ'D)
556 - 198
PLATE, THRUST
1/4 - 20 x 3/4
BEARING
CAP SCREW
(2 REQ'D.)
1300-81 TOOL SLIDE HUB ASSEMBLY
oil
049 - 158 BUSHING, HUB
382 - 077 HUB, TOOL SLIDE DIAL
547 - 002 OILER
SLIDE, CROSS
#943 - 002
WEDGE, ADJUSTING
INDENTS
537 - 168
NUT, CROSS
SLIDE
315 - 061
GIB, TOOL
SLIDE
IMPORTANT
055 - 0S4
BOLT. SWIVEL
COMPOUND
() REQ'D )
537 - 10S
NUT, GIB
ADJUSTING
THE PARTS ILLUSTRATED ON
THIS PAGE ARE FOR LATHES
SERIAL NUMBERS FROM
130915
03
- O
TO
o
