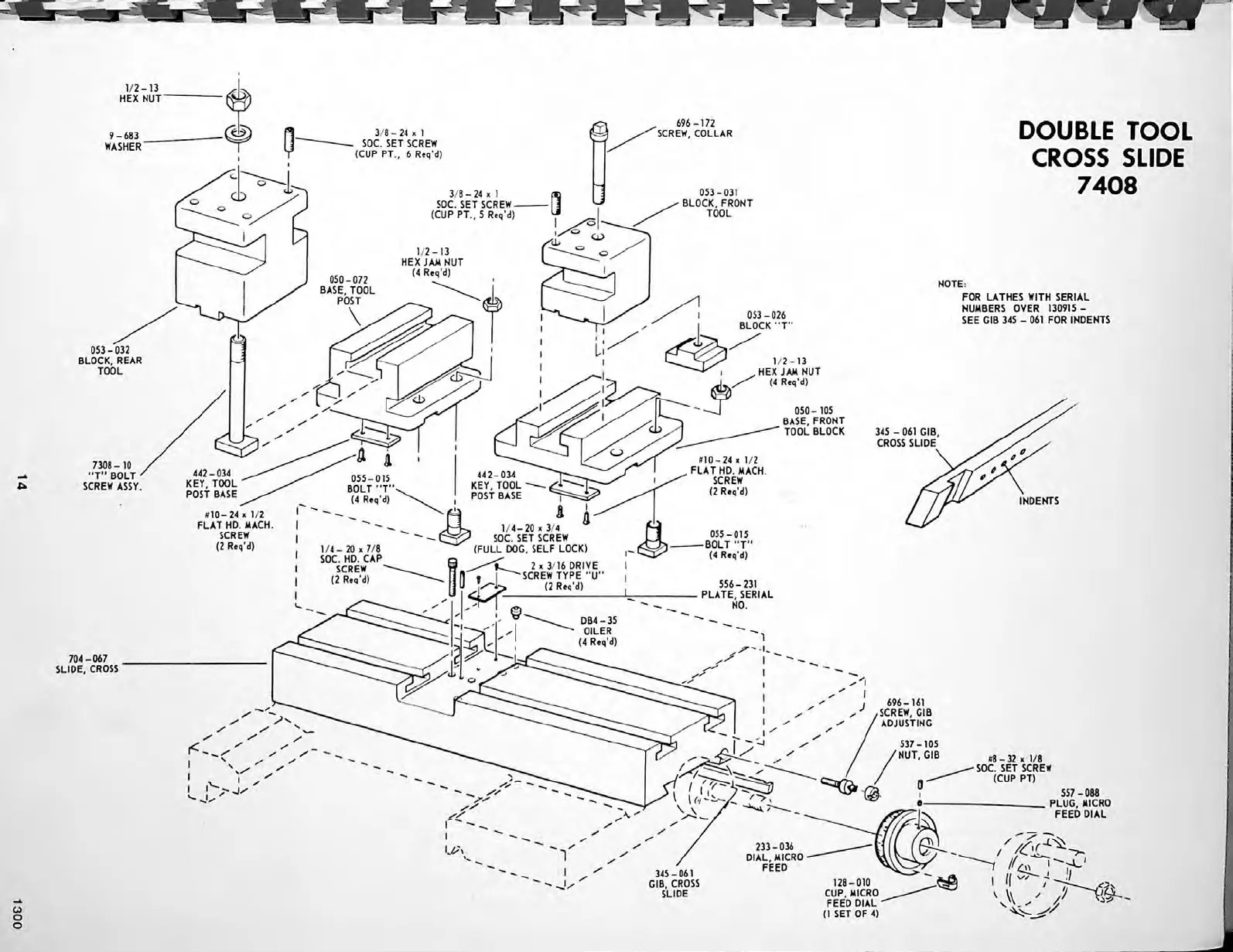

CLAUSING 1300 Series - Page 36

wSz
1/2-13
HEX NUT
696 - 172
DOUBLE TOOL
CROSS SLIDE
7408
a
3/8 - 24 * 1
SCREW, COLLAR
9-683
WASHER
SOC. SET SCREW
(CUP PT., 6 Req ’ d)
053-031
3/8 - 24 * 1
BLOCK,FRONT
SOC. SET SCREW
TOOL
(CUP PT., 5 Req'd)
1/2-13
HEX JAM NUT
NOTE:
FOR LATHES WITH SERIAL
NUMBERS OVER 130915 -
053 -026
SEE GIB 345 - 061 FOR INDENTS
BLOCK ,, T"
053-032
BLOCK, REAR
TOOL
HEX JAM NUT
050- 105
BASE, FRONT
TOOL BLOCK 345 - 061 GIB,
CROSS SLIDE
010-24 * 1/2
7308- 10
"T" BOLT /
SCREW ASSY.
FLAT HD. MACH
442-034
442-034
055-015
SCREW
KEY, TOOL
KEY, TOOL
BOLT “ T"
(2 Req ’ d)
POST BASE
POST BASE
INDEKTS
010-24 * 1/2
FLAT HD. MACH.
1/4-20 x 3/0
055-015 SCREW
SOC. SET SCREW
---------- BOLT "T"
(2 Req'd)
(FULL DOG, SELF LOCK) 1/4- 20 x 7/8
(4 Req'd)
SOC. HD. CAP
2 x 3/16 DRIVE
SCREW
SCREW TYPE
(2 Req'd)
556-231
(2 Req'd)
PLATE. SERIAL
NO.
704-067
SLIDE. CROSS
SCREW. GIB
ADJUSTING
537- 105
NUT, GIB
08 -32 x 1/8
SOC. SET SCREW
(CUP PT)
557 - 088
. PLUG. MICRO
FEED DIAL
