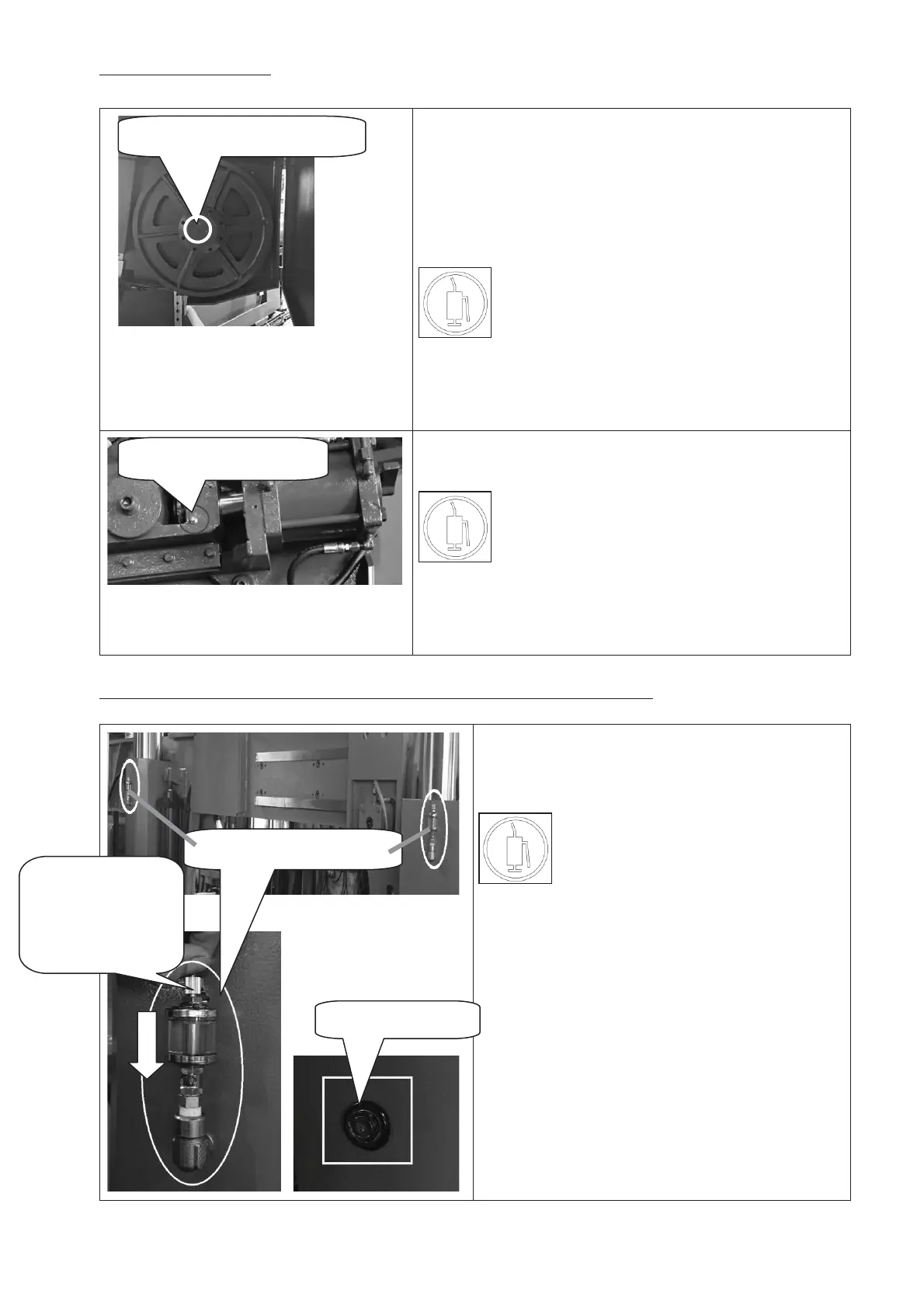

Grease Injection Hole:

!!







1. Grease Injection Nozzles at the middle of drive wheel
and idle wheel;
(You need to rotate the wheel until you ssee the Grease
injection nozzle.)
: The position of injection indicating.
2.
Please inject the grease into the Nozzle.
!
1.
Grease Injection Nozzle on the blade tension device.
: The position of injection indicating.
3.
Please inject the grease into the Nozzle.
Lubricating
Oil Injection for Main shaft (double column) ( if applicable ):

















1. Two manual injection device for two main
shafts (double column)
: The position of injection indicating.
2.
Pull up & inject lubricating oil for seconds
3.
Recommend always
keeping the volume over
50% inside the vessel of volume window.˛

*UHDVH,QMHFWLRQ1R]]OH
!
*UHDVH,
QMHFWLRQ1R]]OH!
0DQXDOLQMHFWLRQGHYLFH
!
Volume window
Pull up & inject for
seconds until the
volume over 50%.
