CleaverBrooks CBEX Elite User Manual

Parts
9-28
750-368
CBEX Elite 100-1200 HP

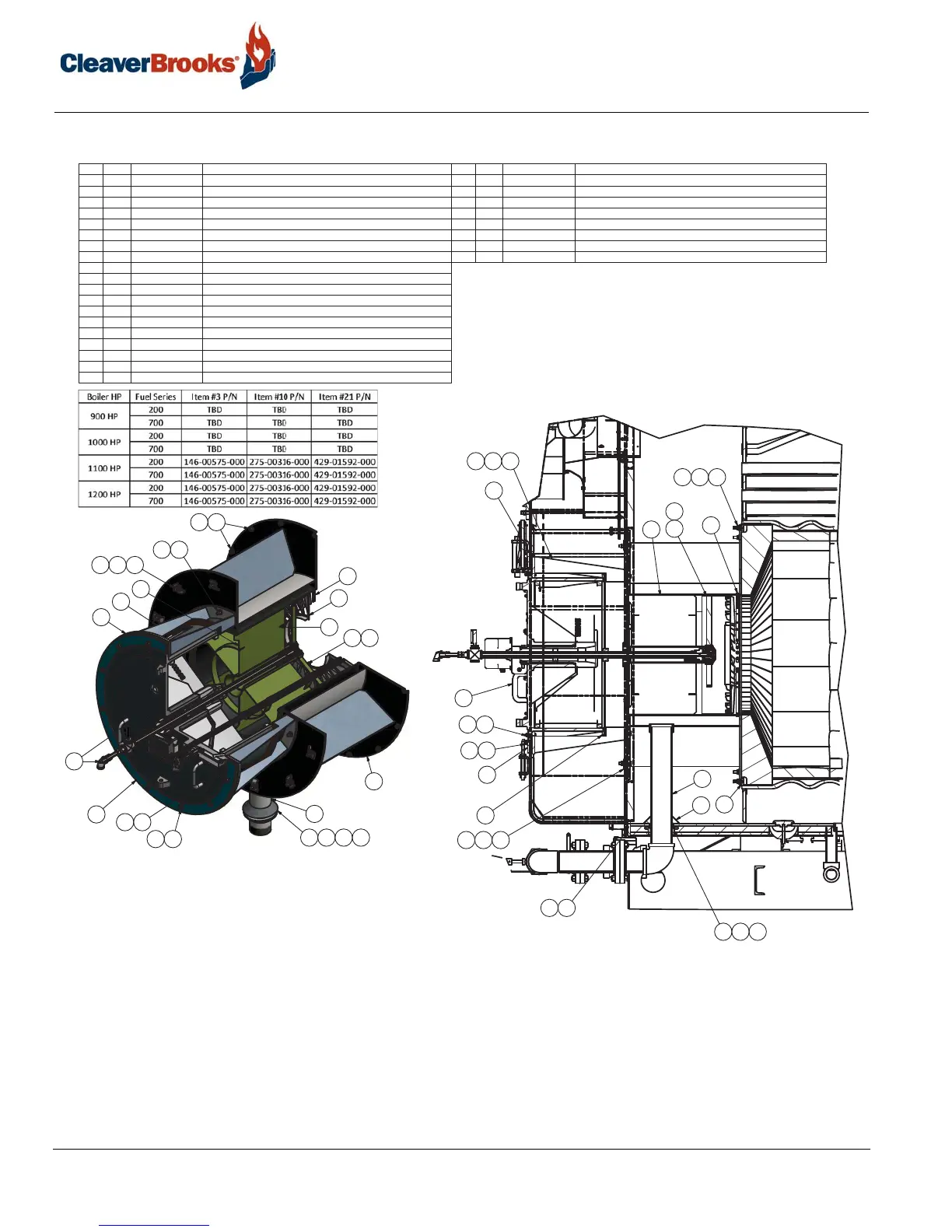

9.17.4 — 106”
ITEM
QTY
Part No.
Description
11
656-07965-000 INSTALLATION, BURNER HOUSING TO FURNACE
2 1 040-00745-000
HOUSING, BURNER, 106" DIA. CBEX-ELITE BOILERS
3 1 SEE TABLE SPUD KIT & PATTERN, 1100-1200 HP CBEX-ELITE - 30 PPM
41
057-03928-000 PIPE, 4" SCH. 40 X 25-1/2" LG. SA106 GR. B
5 12 oz. 872-00558-000 THERMO CEMENT, HI TEMP, 2000 DEG. F.
6
1
853-00348-000 BULK PACKING, 1/4" DIA. X 22" LG.
7 1 065-00177-000 RETAINER GASKET
8 3 860-00015-000
SET SCREW, SOCKET HD. 3/8-16 UNC X 1/2" LG.
9
1
134-00926-000 SPIDER, DIFFUSER, 106" CBEX-ELITE BOILERS
10 1 SEE TABLE DIFFUSER, BURNER AIR, 1100 HP CBEX-ELITE BOILERS, 30 PPM
11
3 860-00051-000 MACH. SCREW, FILLISTER HD. #10-24 UNC X 1/2" LG.
12 1 022-00431-000
AIR STABILIZER, 106" DIA. CBEX-ELITE BOILERS
13 1 032-02599-000 GASKET, FRONT DOOR
14
33 841-00507-000 FASTENER, AUEVCO #1202
15 12 296-00019-000
CLAMP, INNER PLATE, 78" THRU 106" DIA. BOILERS
16
1
853-09296-000 TAPE, SILICONE, 3/8" X 1-1/2" X 8.3 FT. LG.
17 1 032-02680-000
GASKET, BURNER SUPPORT, BURNER DRAWER, & FRONT HEAD
18
1 040-00746-000
HOUSING, BURNER SUPPORT, 106" DIA. CBEX-ELITE BOILERS
19 2 006-00459-000 GLIDE BAR, 900-1200 HP BURNER SUPPORT
ITEM QTY Part No.
Description
20 10 860-00258-000 MACHINE SCREW, FLAT HD. SLOTTED, #6-32 UNC 2A X 1/2" LG.
21 1 SEE TABLE BURNER DRAWER, 1100 HP CBEX-ELITE BOILERS, 30 PPM
22 1 015-00170-000
CLAMP RING, FRONT DOOR, 106" DIA. CBEX-ELITE BOILERS
23 52 952-00108-000 WASHER, FLAT, 1/2" S.A.E. PLAIN STEEL
24 36 869-00015-000
NUT, HEX HD. 1/2-13 UNC ASTM A563 GR. A
25 18 869-00030-000 NUT, HEX, 3/8-16 UNC A307 GR. A
26 18 952-00106-000
WASHER, FLAT, 3/8" PLAIN STEEL
27 16 869-00029-000
NUT, HEX, 1/2-13 UNC, BRASS
1
27231
4
5
6
7
8
12
2425
15
16
20
1918
17
21
22
2423
26
25
12
242315
4
5 6 7 8
2423
22
17
18
2723
3
11
9
3
9
11
10
14
13
2625
2423
2
12
21
