CleaverBrooks CBEX Elite - Oil Fuel Flow

Burner and Fuel System
2-8
750-368
CBEX Elite 100-1200 HP
2.9 — Oil Fuel Flow
In Figure 2-9 the oil flow is indicated by arrows and the pertinent controls are identified.

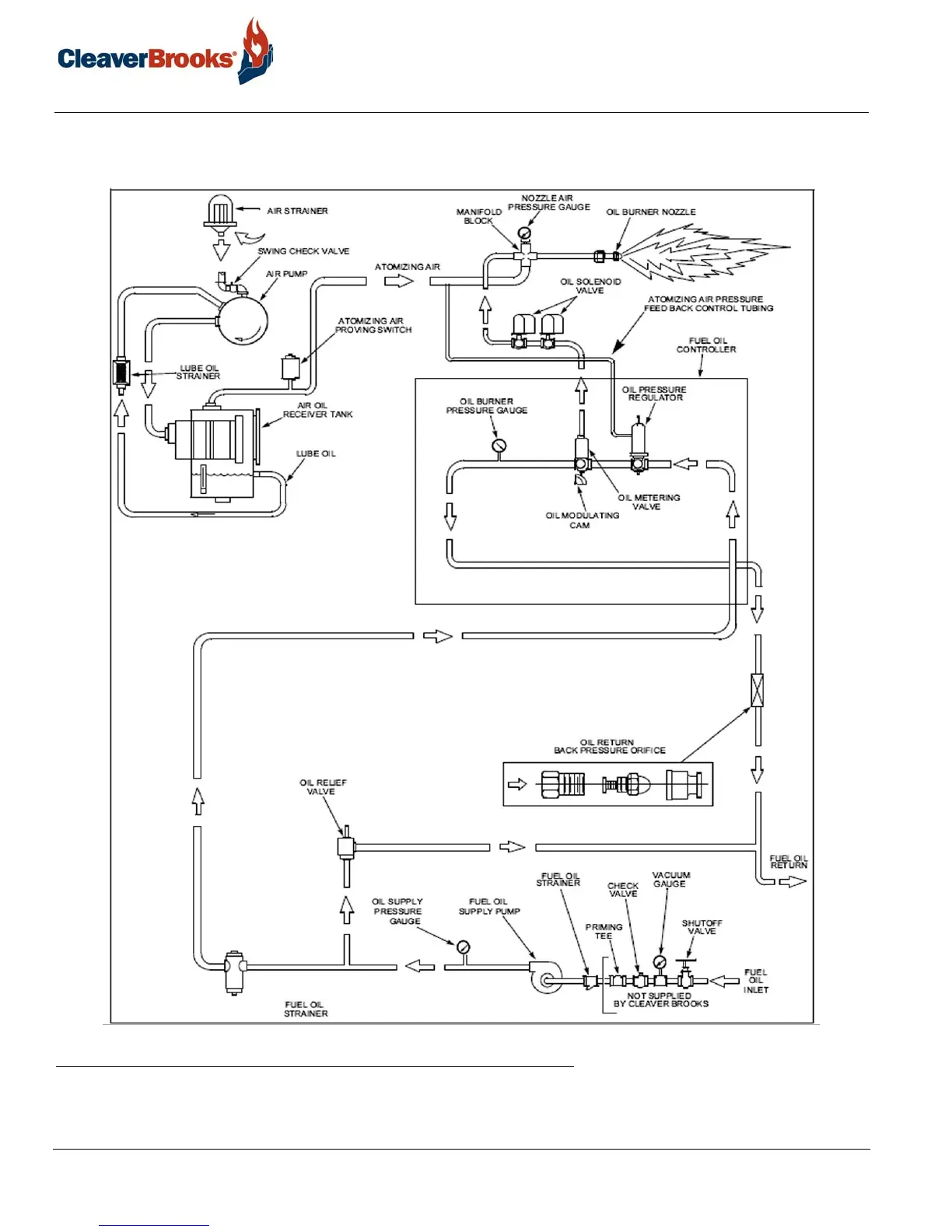

FIGURE 2-5. Diagram for Light Oil Flow
