Set-Up Guide
1
1.9.2 RF (Radio Frequency) Settings
Setting Up the LiveWire Tool

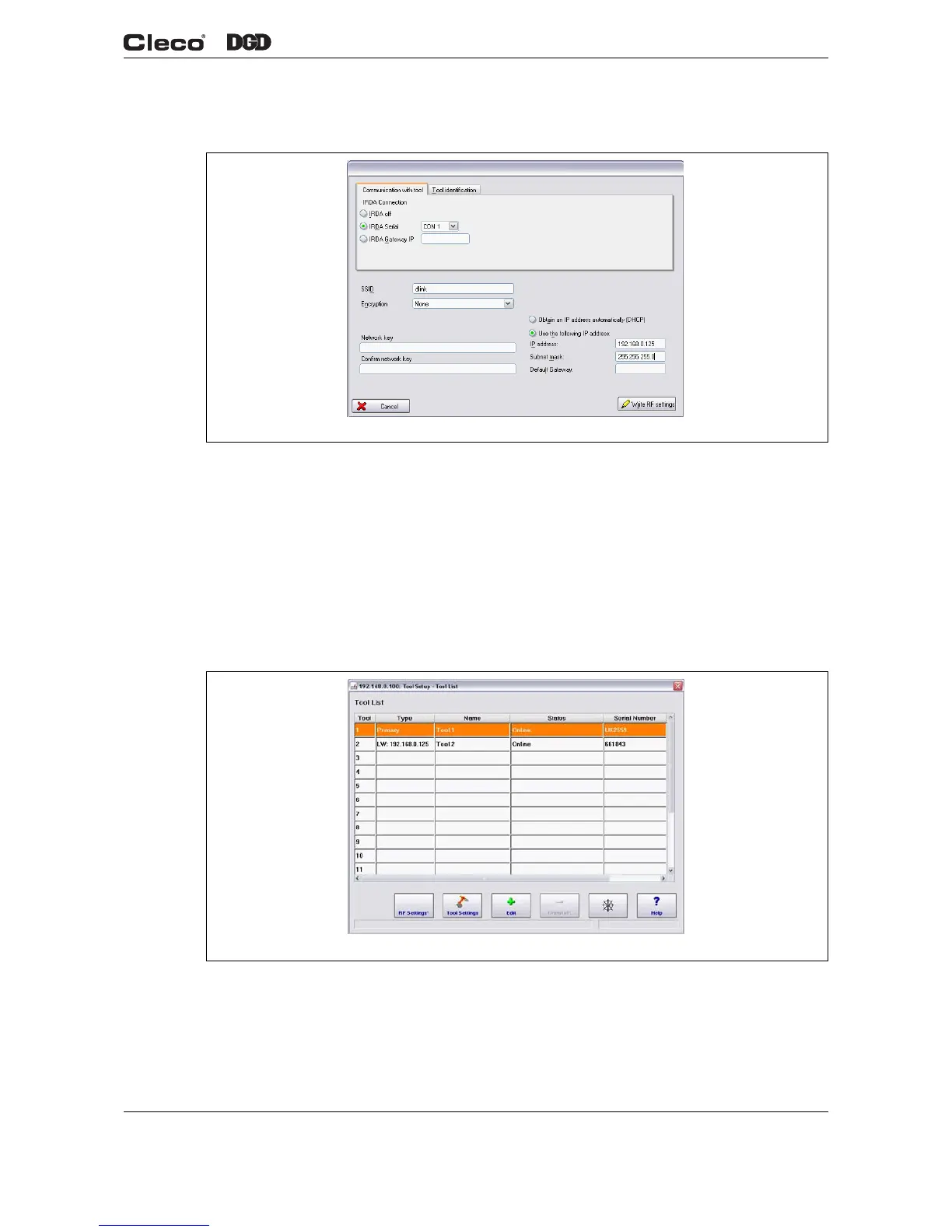

Fig. 1-7 Tool Setup – RF Settings
1. Select Navigator Menu > Tool Setup > RF Settings > IRDA Serial. Correct port depending on the port
connected to at the base of the controller. (CON 1 and CON 2 are X4 and X5 respectively at the con-
troller.)
2. If serial connectivity has been made the SSID, Encryption, and remaining fields will become avail-
able for programming. Enter a value for SSID. If Encryption is selected enter a Network Key and
confirm it by re-entering it below the initial Network key entry. If DHCP is not being used select Use
the following IP address and enter the IP address and Subnet mask. Press <Write RF settings>.
1.9.3 Tool Install
Fig. 1-8 Tool Setup – Tool List
1. Select Navigator Menu > Tool Setup. Press the screen at the tool number location you wish to install
the tool. The row should highlight in orange. Position 1 is reserved for the Primary or corded tool.
To Next Page
