en03d441.fm, 07.04.2011 PL12EN-1001 2011-04 25
Programming
3
3 Programming
3.1 Navigator

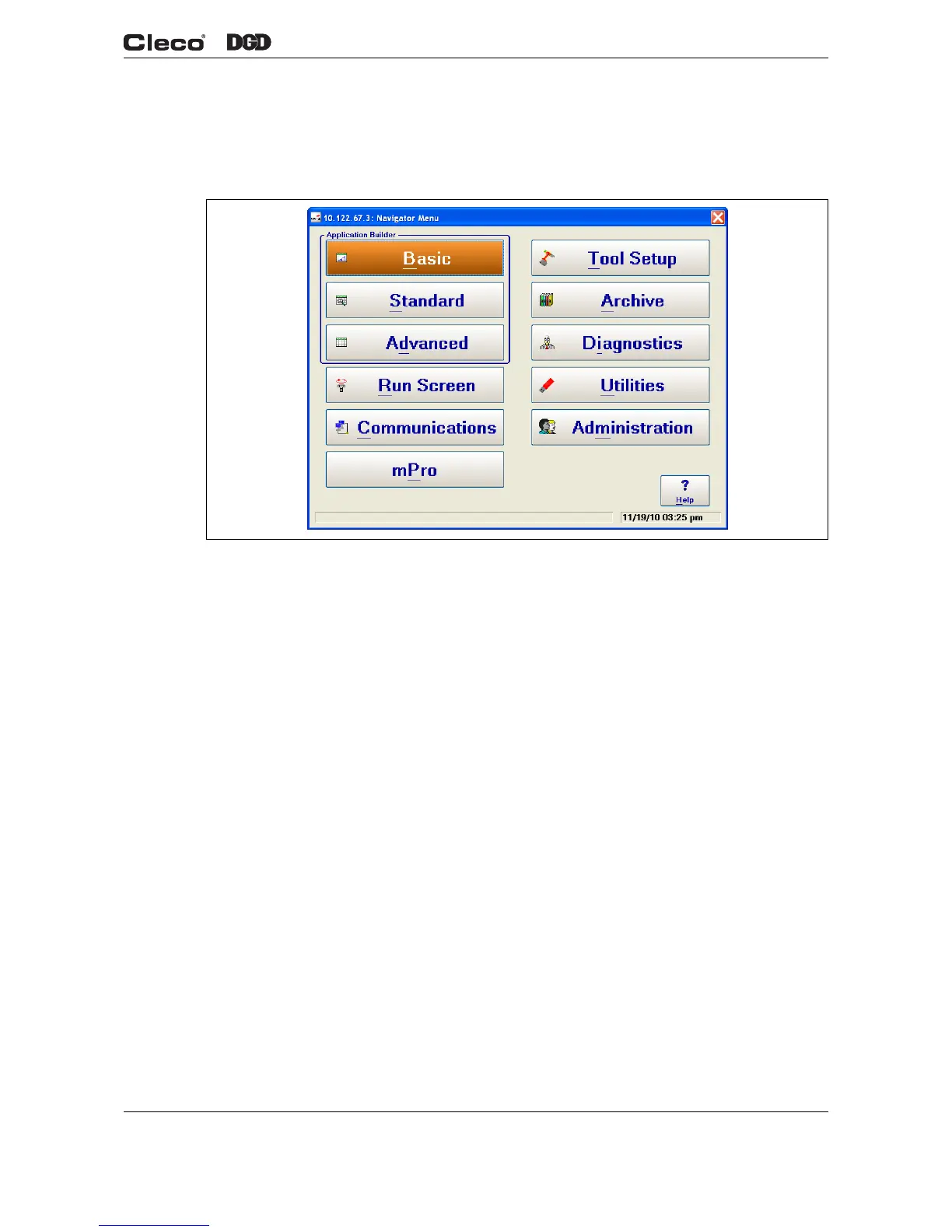

Fig. 3-1 Navigator Menu
Application Builder
<Basic>
Allows the user to graphically select and program a two-stage rundown for Torque Control/Angle Monitor
(SEQ 11 + SEQ 30) or Angle Control/Torque Monitor (SEQ 11 + SEQ 50) for any of the 99 Applications.
The user only enters Torque, Angle, and Speed parameters in one screen. Other parameters such as tim-
ers, etc are automatically defaulted to predetermined values.
<Standard>
Allows the user to program up to a 6-stage rundown for any of the 99 Applications. Once the sequences are
selected for each stage, the associated Torque, Angle, Speed, and Advanced parameters can be pro-
grammed.
<Advanced>
Allows the user access to the Matrix, Inputs, Outputs, Linking, Controller Settings and Tool Settings.
<Run Screen>
Takes the user directly to the display for Torque, Angle, and Status Indicator Labels. The Oscilloscope func-
tion used for diagnosing torque traces is also located in the Run Screen.
<Communications>
Allows the user to configure the Serial and Ethernet protocol data transmissions, the Part ID settings, and
Network settings.
<Tool Setup>
Allows the user to install, uninstall, and configure tool settings.
