Programming
3
3.7 Tool Setup
For accepting a tool see 1.8 Accepting a Corded Tool, page 10 and 1.9 Accepting a LiveWire Tool, page 12.
3.7.1 Tool List

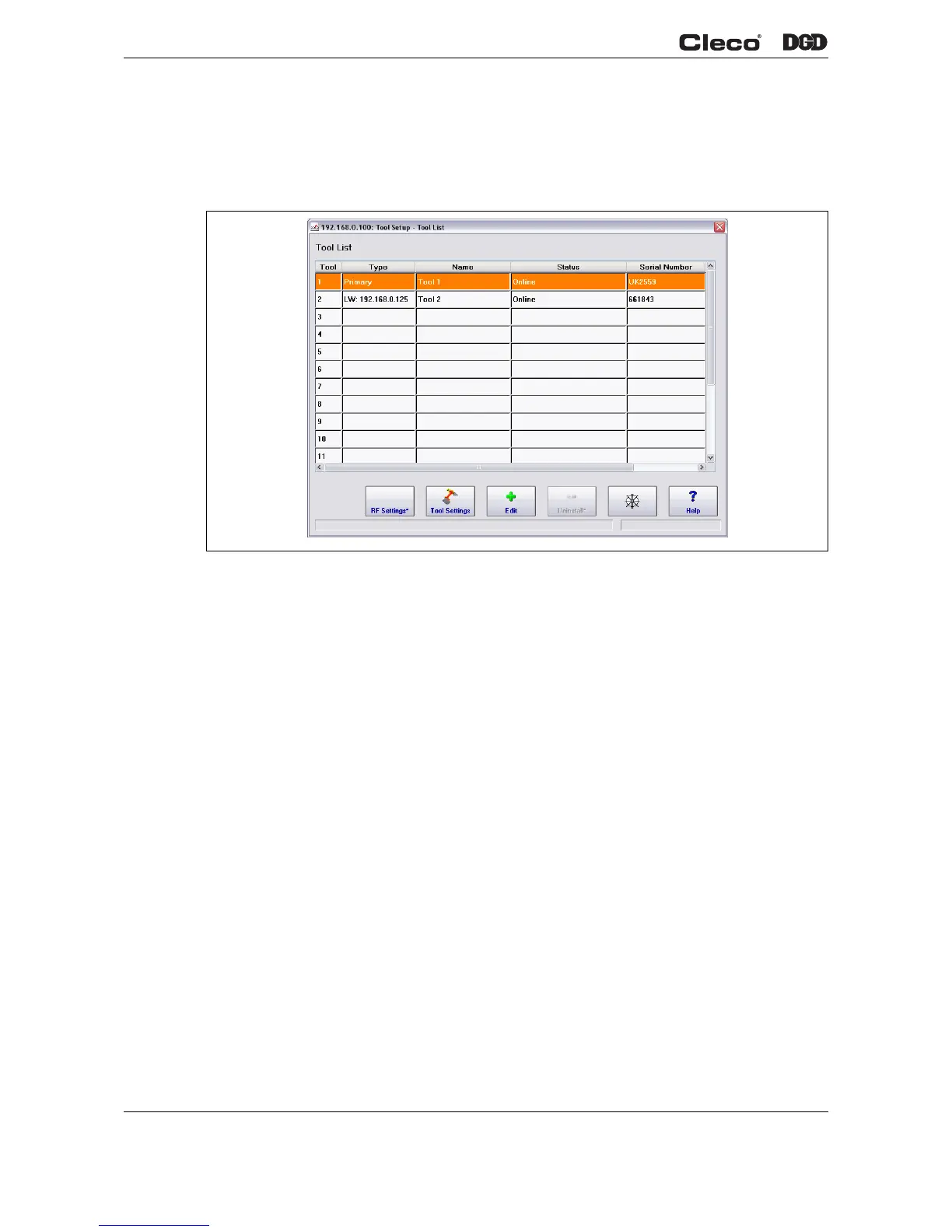

Fig. 3-17 Tool List
The Tool List displays installed tools, and gives a user the ability to install, edit and uninstall tools.
Tool List Table:
Tool Displays the associated tool's number. This number is assigned by the user once a tool
is installed.
Type Identifies the type of tool associated with the assigned tool number.
• Primary: the corded tool associated with a Primary unit
• LW: < IP address >: the LiveWire tool and matching IP address associated with a
LiveWire tool installed on a Master or Primary unit
• Secondary: the corded tool associated with a Secondary unit paired to either a Mas-
ter or Primary unit
Name Column displays the user assigned name of a tool at installation
Status Column displays the state of a given tool
• Online: tool is installed and ready for use
• Needs User Acceptance: tool is installed and waiting for user acceptance
• Not Compatible: tool is not supported by the controller
• Tool Not Connected: LiveWire tool is installed, but not online
• Servo Not Connected: tool is installed, but the secondary unit is not attached
Serial Num-
ber
Displays the installed tool's serial number
Tool Model Displays the installed tool‘s model number
• Tube-Nut Tool
The automatic selection of a tube nut tool depends on a 'T' in the tool model number.
That means, if a 'T' appears in the model number a tube nut tool is expected. Every
other trigger pull return a tubenut tool to the home position.
