9 Connections

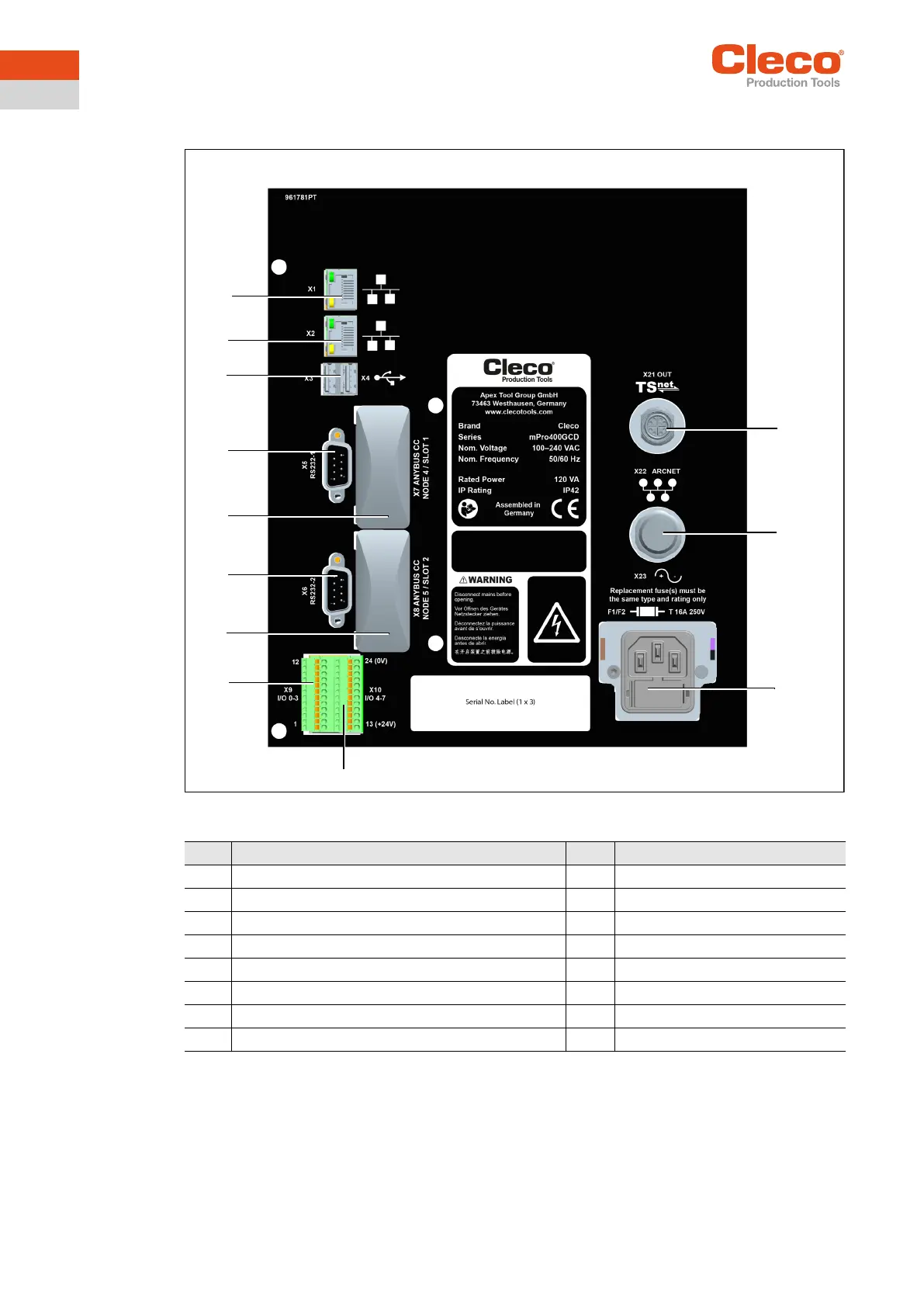

Abb. 9-1: Connections positions
X21
X1
X2
X3
X4
X7
X5
X6
X9
X10
X8
X23
X22
No. Designation No. Designation
X1 Ethernet RJ45 10/100 BASE-T Connector #1 X9 I/O Connector
X2 Ethernet RJ45 10/100 BASE-T Connector #2 X10 I/O Connector
X3 USB V2.0 Port #1 X21 System Bus Connector TSnet
X4 USB V2.0 Port #2 X22 System Bus Connector ArcNet
X5 Serial RS232-1 Connector #1 X23 Power supply connection
X6 Serial RS232-2 Connector #2
X7 Anybus CC – Fieldbus
X8 Anybus CC – Fieldbus
