Clevertouch CTL-55DS4KV - VESA Mount and Wall Installation

English - 66 -

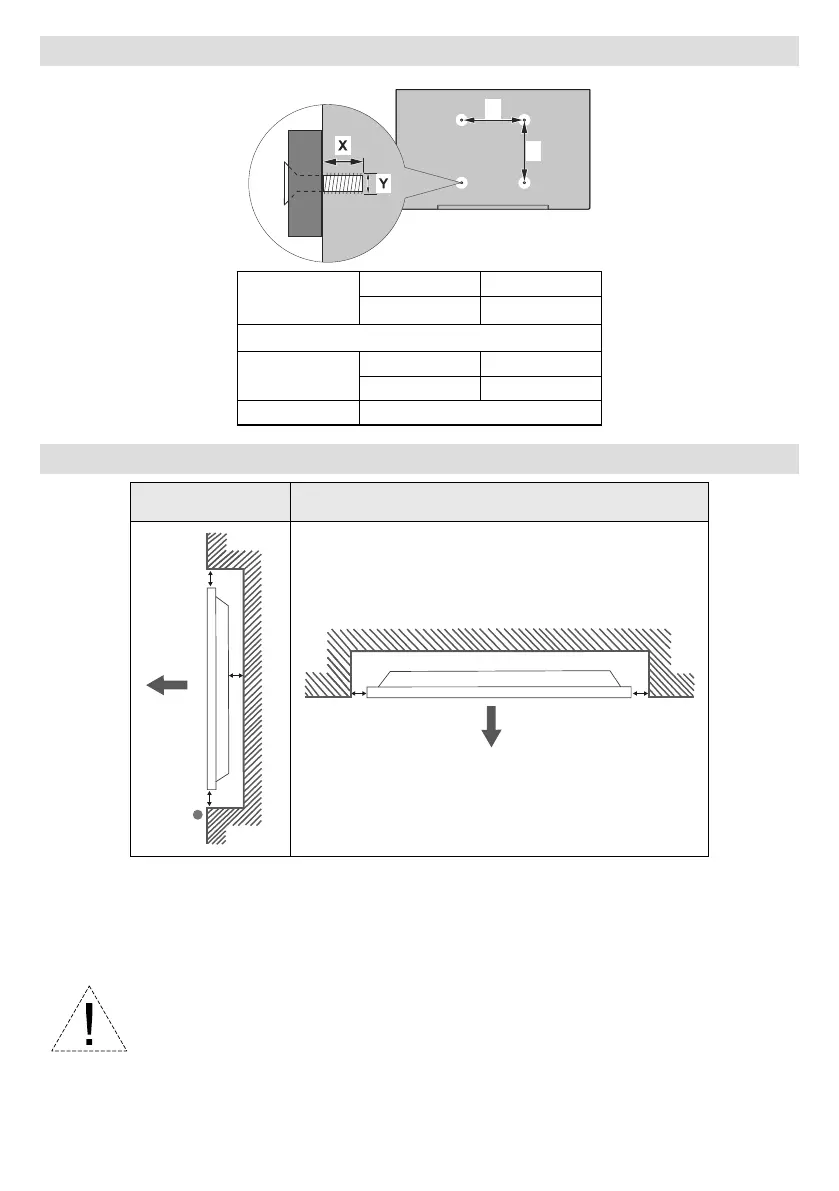

Vesa Wall Mount Measurements
W
H
Hole Paern
Sizes (mm)
W H
400 200
Screw Sizes
Length (X)
min. (mm) 9,5
max. (mm) 21
Thread (Y) M6
Installation On An Indented Wall
Side view
E
A
B
C
Plane view
D D
A 
B 
C 
D 
E 

the product and wall for ventilation and ensure that the ambient temperature is kept between

Do not expose the product to direct sunlight.
We will take no responsibility for any damages or failures in case our products are not being used subject to
these recommendations and/or instructions for use.
