Clevo P151EM1 - Mainboard Overview - Bottom (Key Parts)

Introduction
Mainboard Overview - Bottom (Key Parts) 1 - 9
1.Introduction

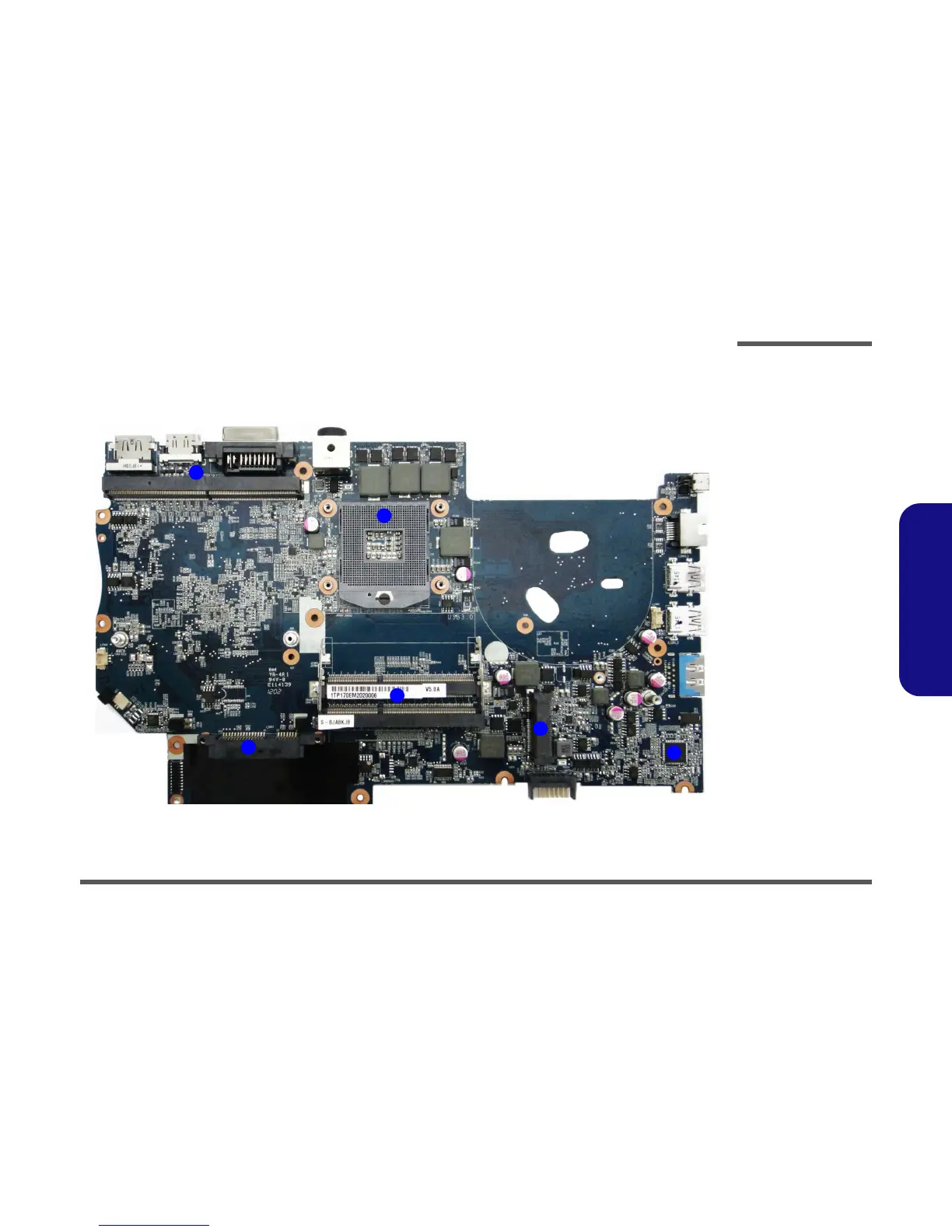

Mainboard Overview - Bottom (Key Parts)
Figure 8
Mainboard Bottom
Key Parts
1. VGA-Card
Connector
2. CPU Socket (no
CPU installed)
3. Memory Slots
DDR3 SO-DIMM
(Primary)
4. Hard Disk
Connector
5. MSATA Connector
6. RTL8411
5
2
1
4
3
6
