Clevo P151EM1 User Manual

Disassembly
2 - 20 Removing and Installing the Video Card
2.Disassembly
Removing and Installing the Video Card
Video Card Removal Procedure
1. Turn off the computer, turn it over and remove the battery (page 2 - 5) and component cover (page 2 - 10).
2.
Remove screws - from the heat sink unit in the order indicated on the label (i.e screw 7 first through to screw
1 last)
(Figure 16a).
3.
Carefully (they may be hot) remove the heat sink units & (Figure 16b).
4. Remove screws & from the video card and the video card will pop up (Figure 16c).
5. Remove the video card (Figure 16d).

8 & 9.Heat Sink Units
12. Video Card
•9 Screws

Caution
The heat sink, and video
card area in general,
contains parts which are
subject to high tempera-
tures. Allow the area
time to cool before re-
moving these parts.

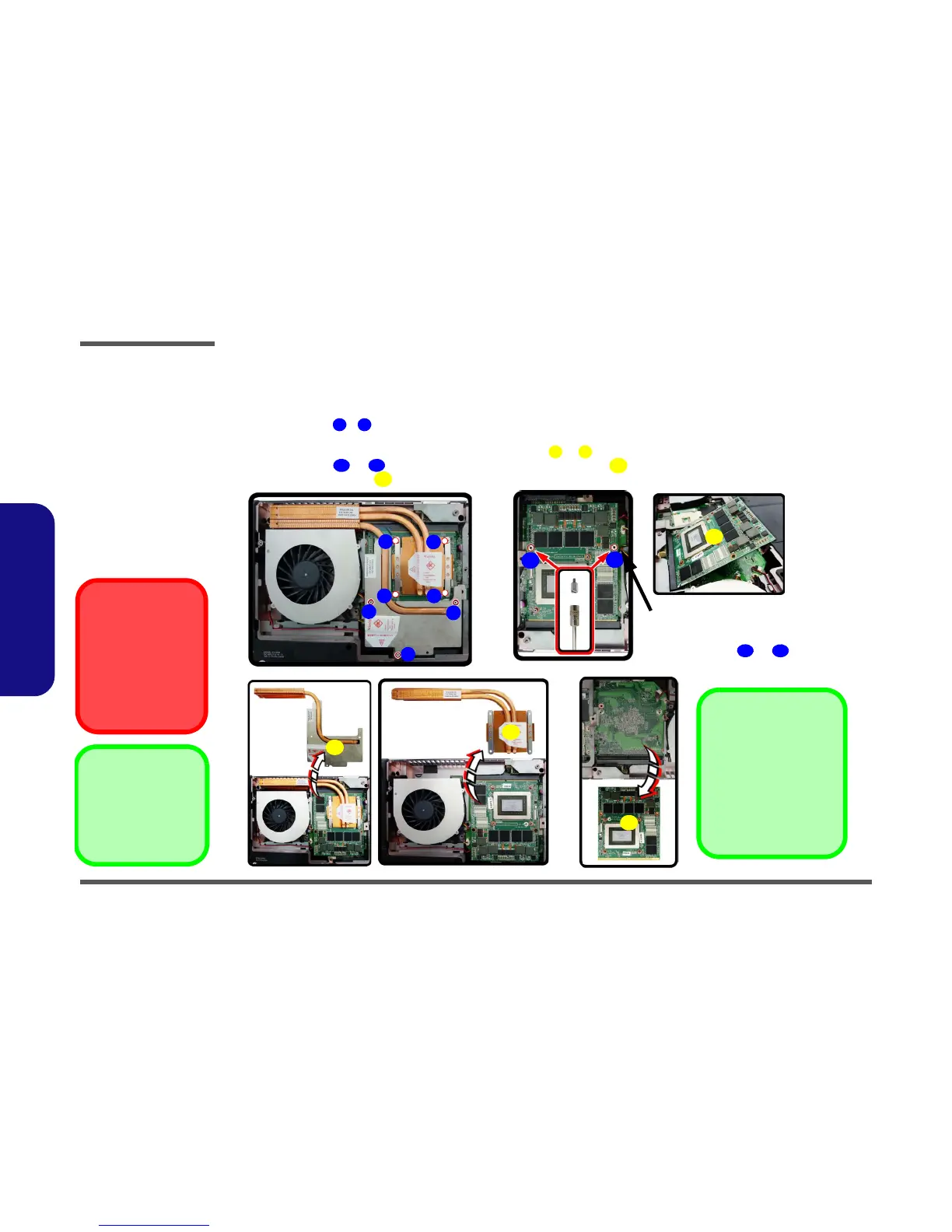

Figure 16
Video Card
Removal Procedure
a. Remove the screws in
the correct order.
b. Carefully remove the
heat sink units.
c. Remove the video card
screws. The video card
will pop up.
d. Remove the video card.
1
7
8
9
10
11
12
12
3
a.
2
1
4
6
7
5
9
12
c.
b.
8
d.

Heat Sink Screw Removal
and Insertion
Remove the screws from the
heat sink in the order indicated
here: 7-
6-5-4-3-2-1 .
When tightening the screws,
make sure that they are tight-
ened in the order:
1-2-3-4-5-6-7 .
15
10
11
9
c.
d.
12
Note:
Please use a flat head screwdriver to
remove screws & .
10
11
