Clevo P151EM1 User Manual

Disassembly
2 - 22 Removing the Microphone
2.Disassembly
Removing the Microphone
1. Turn off the computer, and remove the battery (page 2 - 5), component bay cover (page 2 - 10), processor (page
2 - 17), hard disk (page 2 - 6) (page 2 - 10), optical device (page 2 - 9), and video card (page 2 - 20).
2. Remove screws - and carefully push the bottom of the top case at point (Figure 18a)
3. Lift the top case up, keeping it level (do not tilt it) Figure 18b.
4. Disconnect the microphone cable (Figure 18c).
5. Remove the microphone (Figure 18d).

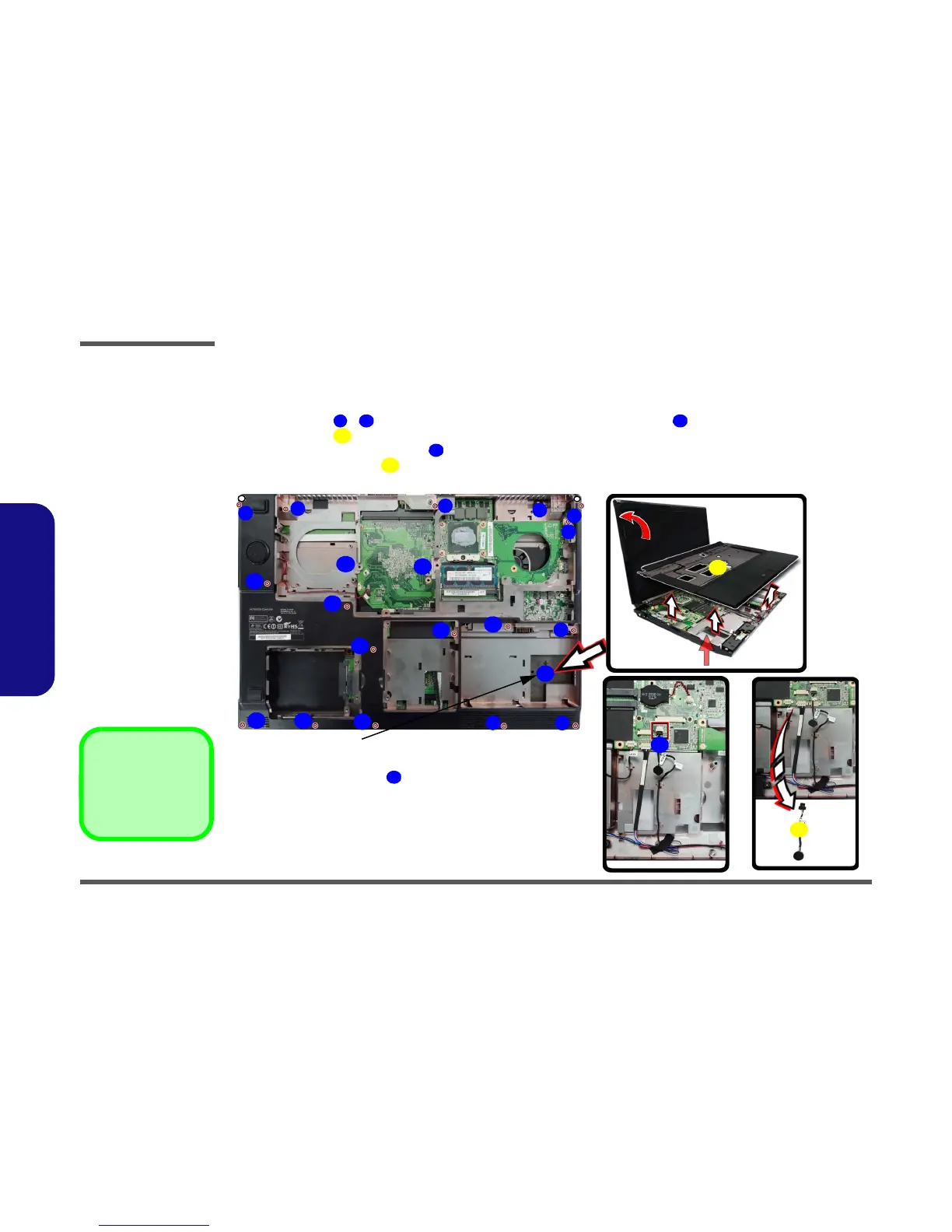

Figure 18
Microphone Removal
a. Remove the screws.
b. Lift the top case up, keep-
ing it level (do not tilt it).
c. Disconnect the micro-
phone cable.
d. Remove the microphone.

21. Top Case
23. Microphone
• 19 Screws
1
19
20
21
22
a. b.
c.
Note:
Carefully push the bottom of the top case at
point .
20
d.
21
6
3
2
5
7
8
9
4
12
13
11
14
15
10
23
1
16
17
18
22
20
19
23
