Introduction
1 - 10 Mainboard Overview - Top (Connectors)
1.Introduction
Mainboard Overview - Top (Connectors)
1
2
3
4
5
6
7
8
9
10
11

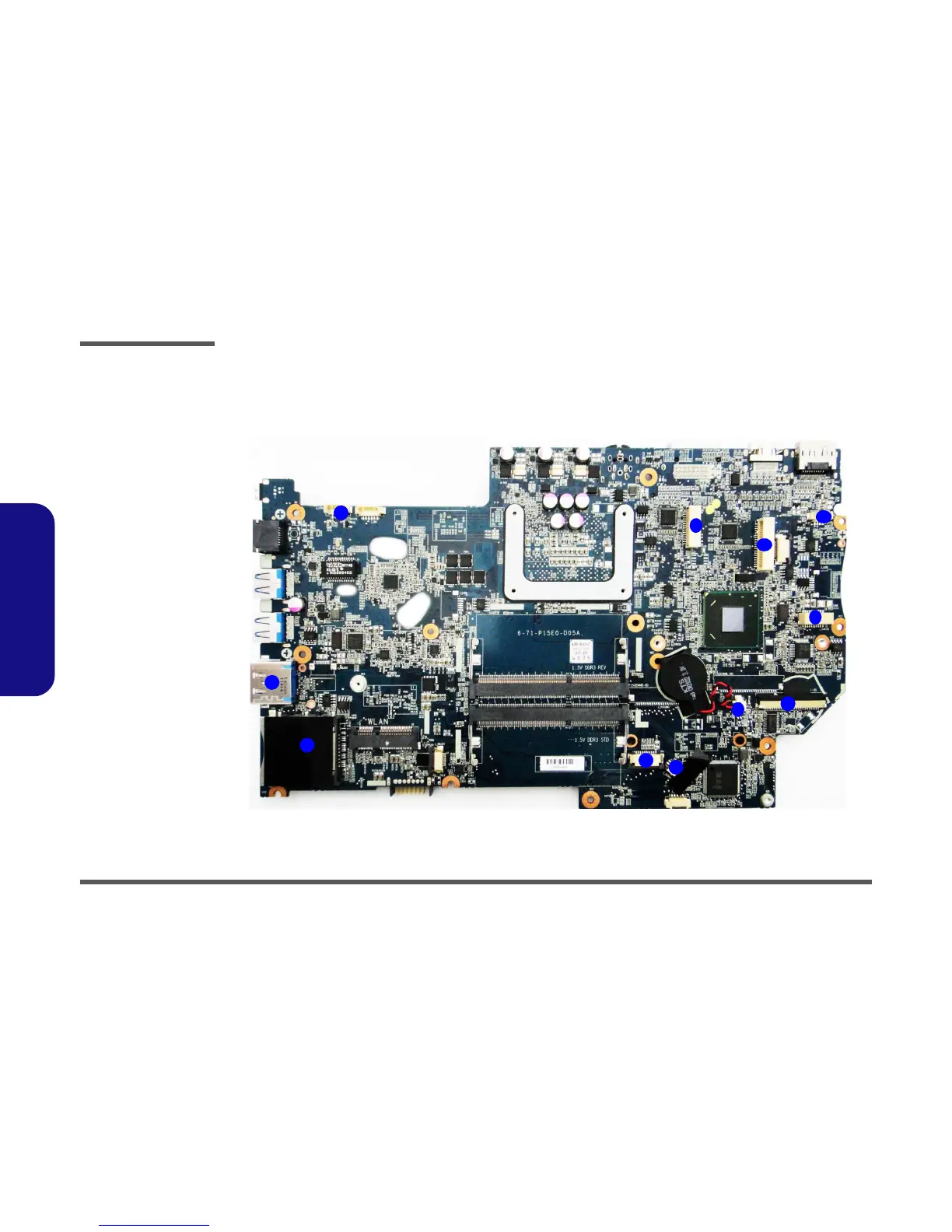

Figure 9
Mainboard Top
Connectors
1. CCD Connector
2. USB 3.0 Port /
eSATA
3. Multi-in-1 Card
Reader
4. TouchPad Cable
Connector
5. Microphone
Cable Connector
6. Keyboard Cable
Connector
7. CMOS Battery
Connector
8. Audio Cable
Connector
9. LCD Cable
Connector 2
10.LCD Cable
Connector 1
11. Speaker
Connector
