DESIGN NOTE:PEQ
Programmalbe input equalization levels;internal pull
down at~150k ,3.3v I/O
L: default, LEQ, compensate channel loss up to 12dB at
HBR2
H: HEQ, compensate channel loss up to 15dB at HBR2
M:LLEQ, compensate channel loss up to 5dB at HBR2
DESIGN NOTE:CFG0
Configuration pin for automatic EQ and
Aux interception; Internal pull down at
~150Kohm,3.3V I/O
L: default, automatic EQ enable and Aux interception enable
H: automatic EQ disable and AUX interception enable
M: automatic EQ disable and AUX interception
disable,no pre-emphasis, 600mVpp swing
DESIGN NOTE:CFG1
Configuration pin for auto test and input offset
cancellation,3.3V IO, internal pull up at~150K
H: default, auto test disable and input offset cancellation
enable
L: auto test enable and input offset cancellation enable
M: auto test disable and input offset cancellation disable
From NV Port_A
From NV Port_A
From TBT
To TBT
PDB PIN:
L:Chip power down
H:Normal operation(default)
close PS8330B
To TBT
mDP REDRIVER
20180413 del resistors
co-lay with IC pin
To NV Port_A
20180420
Del co-lay circuit
20180420
Del co-lay circuit
20180420
Del co-lay circuit
20180420
Del co-lay circuit
DIFF=90ohm, Total L<6" DIFF=100ohm, L<2"
DIFF=100ohm, L<2"
DIFF=90ohm, Total L<6"
20180430 Del PS8338B
20180430 Del PS8338B
20180430 Del PS8338B
MLCC Comm part
D02 1012
use non-dongle Cable, TBT no display
3.3VS
3.3VS
3.3VS
3.3VS
3.3VS 3.3VS 3.3VS
3.3VS
3.3VS
3.3VS8,9,10,11,12,14,29,34,35,37,38,39,40,43,44,46,47,53,54,55,56,57,60,63,64,70,71,77
PS8330B_HPD 59
PS8330B_D3N 59
PS8330B_D3P 59
PS8330B_D2N 59
PS8330B_D2P 59
PS8330B_D1N 59
PS8330B_D1P 59
PS8330B_D0N 59
PS8330B_AUXn_SDA 59
PS8330B_D0P 59
PS8330B_AUXp_SCL 59
MDP_A027
MDP_A227
MDP_A#127
MDP_A127
MDP_A#027
MDP_A#327
MDP_A327
MDP_A#227
MDP_A_AUX#_SDA27
MDP_A_AUX_SCL27
MDP_A_TBT_HPD34,39
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB500-D03
D03

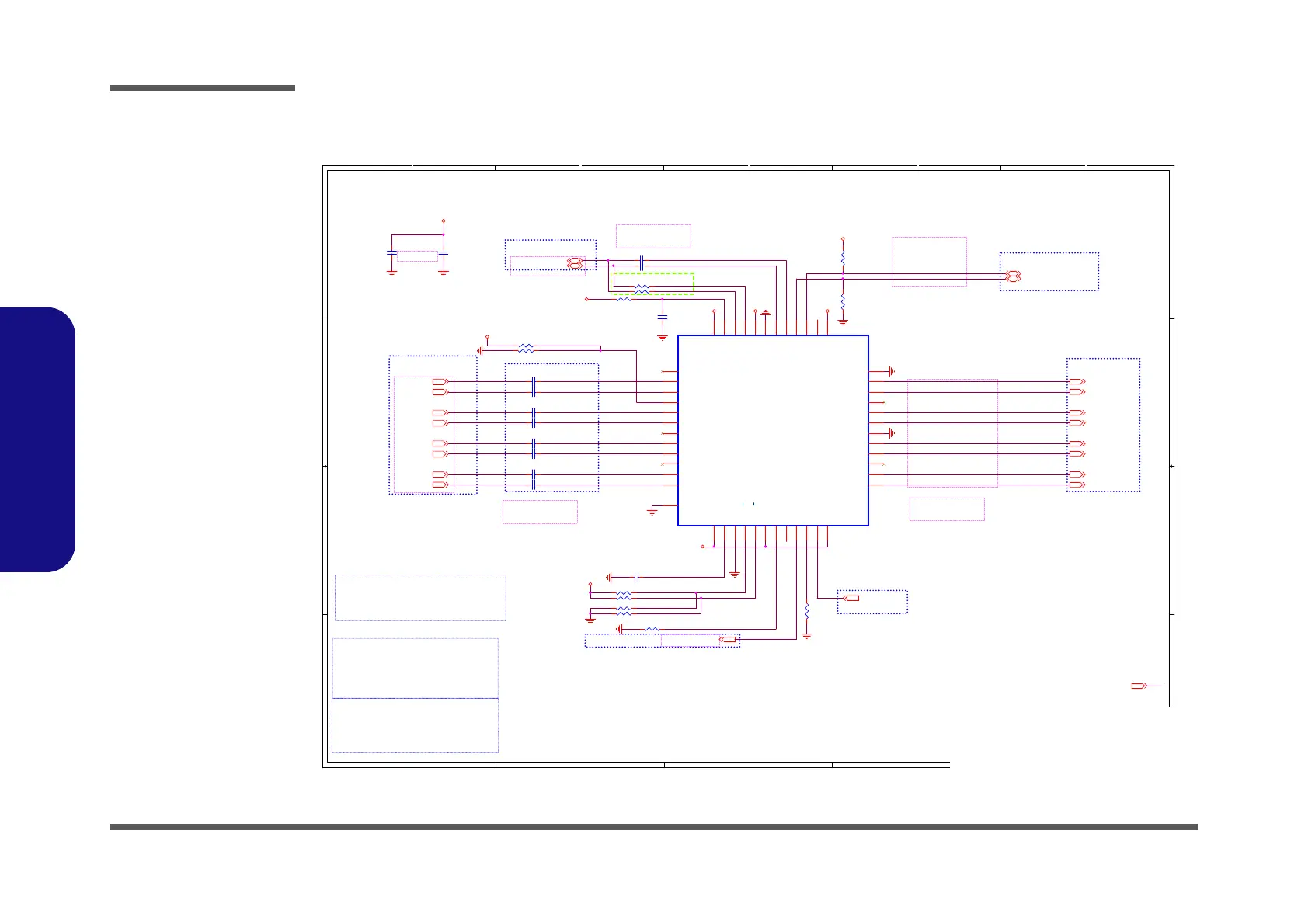

[13] 04-4-2 DP REPEATER PS8330B
A3
13 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB500-D03
D03
[13] 04-4-2 DP REPEATER PS8330B
A3
13 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB500-D03
D03
[13] 04-4-2 DP REPEATER PS8330B
A3
13 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
C1083 0.1u_10V_X7R_04 TBT
R321 *4.7K_04 TBT
C1035 0.1u_10V_X7R_04 TBT
R274
100K_04
TBT
R320 *4.7K_04 TBT
C1032
0.1u_6.3V_X5R_02
TBT
C1106
0.01u_16V_X7R_04
TBT
R322 *4.7K_04 TBT
C1067 0.1u_10V_X7R_04 TBT
R892 0_04 TBT
C1049 0.1u_10V_X7R_04 TBT
R727 *4.7K_04 TBT
C1059 0.1u_10V_X7R_04 TBT
R722 *4.7K_04 TBT
R893 0_04 TBT
R325
1M_04
TBT
R324 4.99K_1%_04 TBT
C1033
2.2u_6.3V_X5R_04
TBT
C1094 0.1u_10V_X7R_04 TBT
C1034 0.1u_10V_X7R_04 TBT
R323 *4.7K_04 TBT
C1090 0.1u_10V_X7R_04 TBT
C1054 0.1u_10V_X7R_04 TBT
R273 10K_04 TBT
C1072 0.1u_10V_X7R_04 TBT
C1105 2.2u_6.3V_X5R_04
TBT
R275
100K_04
TBT
PS8330B
U19
PS8330B
TBT
VDD33
1
CEXT
2
I2C_ADDR
3
SCL_CTLPEQ
4
SDA_CLTCFG0
5
VDD33
6
REXT
7
CAD_SRC
8
HPD_SRC
9
CAD_SNK
10
HPD_SNK
11
VDD33
12
OUT3n
13
OUT3p
14
NC
15
OUT2n
16
OOUT2p
17
GND
18
OUT1n
19
OUT1p
20
NC
21
OUT0n
22
OUT0p
23
GND
24
VDD33
36
RST#
35
SDA_DDC
34
SCL_DDC
33
VDD33
32
GND
31
AUX_SRCp
30
AUX_SRCn
29
AUX_SNKp
28
AUX_SNKn
27
PD#
26
VDD33
25
IN3n
48
IN3p
47
NC
46
IN2n
45
IN2p
44
NC
43
IN1n
42
IN1p
41
CFG1
40
IN0n
39
IN0p
38
NC
37
EPAD
49
PS8330B_AUXn
PS8330B_AUXp
PS8330B_CFG0
PS8330B_CFG1
CEXT
PS8330B_PEQ
PS8330_REXT
IN0P_R
IN0N_R
IN1N_R
IN1P_R
IN2N_R
IN2P_R
IN3N_R
IN3P_R
To Next Page
