Clevo PB50EF - Hdmi

5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
HDMI CONNECTOR
ESD
From Nvidia
20180420 follow PA70 cost down
DIFF=95ohm, L<5.5"
From Nvidia
DIFF=95ohm, L<5.5"
MLCC Comm part
100mA
20180503
Follow common design
Add co-lay solution
20180718
Del uP7549UMA5-20
HDMI_5VS
NV3V3
NV3V3
3.3VS
HDMI_5VS
HDMI_5VS
5VS
5VS
NV3V312,15,28,29,31,50,64,74,75
3.3VS8,9,10,12,13,14,29,34,35,37,38,39,40,43,44,46,47,53,54,55,56,57,60,63,64,70,71,77
5VS12,28,31,44,47,54,56,57,63,64
HDMI_CTRLDATA27
HDMI_CTRLCLK27
HDMI_HPD34,39
HDMI_DATA1N27
HDMI_DATA1P27
HDMI_CLOCKN27
HDMI_CLOCKP27
HDMI_DATA0N27
HDMI_DATA0P27
HDMI_DATA2N27
HDMI_DATA2P27
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB500-D03
D03
[11] 04-3 HDMI PORT
A4
11 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB500-D03
D03
[11] 04-3 HDMI PORT
A4
11 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB500-D03
D03
[11] 04-3 HDMI PORT
A4
11 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
T41
Q33
UK3018 2.5V drive
G
D S
R455 6.04_1%_04
R470 499_1%_04
C1192 0.1u_10V_X7R_04
R449 6.04_1%_04
C1175 1.5P_50V_04
D6
BAV99 RECTIFIER
A C
AC
D50
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
C8
22u_6.3V_X5R_06
C1187 0.1u_10V_X7R_04
R444
2K_04
C1189 0.1u_10V_X7R_04
R439 *180_1%_04
R456 6.04_1%_04
C1184 0.1u_10V_X7R_04
C15
*22u_6.3V_X5R_06
C1193 0.1u_10V_X7R_04
R472 499_1%_04R440 *180_1%_04
R450 6.04_1%_04
R461 499_1%_04
R459
10K_04
S D
G
Q34A
MTDK3S6R
2
61
C1186 0.1u_10V_X7R_04
R458 6.04_1%_04
C1188 0.1u_10V_X7R_04
R451 6.04_1%_04
R463 499_1%_04
R468
10K_04
C1185 0.1u_10V_X7R_04
R464 499_1%_04
S D
G
Q34B
MTDK3S6R
5
34
D55
RB751S-40H
AC
Q1
UK3018 2.5V drive
G
DS
C14
*10u_6.3V_X5R_06
R445 *180_1%_04
R446 *180_1%_04
R3
20K_04
R462 499_1%_04
R443
2K_04
R1
1M_04
J_HDMI1
1169-1A002-22C
PCB Footprint = c12807-119a5-L
P/N = 6-21-14K60-019
SHIELD2
2
TMDS DATA1+
4
TMDS DATA1-
6
SHIELD0
8
TMDS CLOCK+
10
TMDS CLOCK-
12
RESERVED
14
SDA
16
+5V
18
TMDS DATA2+
1
TMDS DATA2-
3
SHIELD1
5
TMDS DATA0+
7
TMDS DATA0-
9
CLK SHIELD
11
CEC
13
SCL
15
DDC/CEC GND
17
HOT PLUG DETECT
19
GND1
GND1
GND2
GND2
GND3
GND3
GND4
GND4
R457 6.04_1%_04
R471 499_1%_04
R469 499_1%_04
D49
TVUDF1004AD0
5
1
2
3
4
10
9
8
7
6
D52
BAV99 RECTIFIER
A C
AC
R448 6.04_1%_04
U31
APL3517A
PCB Footprint = m-sot23-123
VIN
3
VOUT
2
GND
1
D51
BAV99 RECTIFIER
A C
AC
TMDS_DATA2J
TMDS_DATA2#J
TMDS_DATA2
TMDS_DATA2#
TMDS_CLOCK
TMDS_CLOCK#
TMDS_DATA0J
TMDS_DATA0#J
TMDS_DATA0
TMDS_DATA0#
TMDS_DATA1#JTMDS_DATA1#
TMDS_DATA1JTMDS_DATA1
HDMI_CEC
HDMI_SDA-C
HDMI_SCL-C
HDMI_HPD-C
TMDS_DATA0J
TMDS_DATA2#J
TMDS_DATA2J
TMDS_DATA0#J
TMDS_DATA1J
TMDS_DATA1#J
TMDS_CLOCKJ
TMDS_CLOCK#J
HDMI_SCL-C
HDMI_SDA-C
HDMI_HPD-C
HDMI_SDA-C
HDMI_HPD-C
HDMI_SCL-C
TMDS_CLOCK#_R
TMDS_DATA1#_R
TMDS_CLOCK_R
TMDS_DATA1_R
TMDS_DATA0#_R
TMDS_DATA0_R
TMDS_DATA2_R
TMDS_DATA2#_R
TMDS_DATA0
TMDS_DATA0#
TMDS_CLOCK#
TMDS_CLOCK
TMDS_DATA2#
TMDS_DATA2
TMDS_DATA1#
TMDS_DATA1
GND_HDMI
TMDS_DATA2 TMDS_DATA2#
TMDS_DATA1 TMDS_DATA1#
TMDS_DATA0 TMDS_DATA0#
TMDS_CLOCK TMDS_CLOCK#
TMDS_CLOCKJ
TMDS_CLOCK#J
Sheet 11 of 91

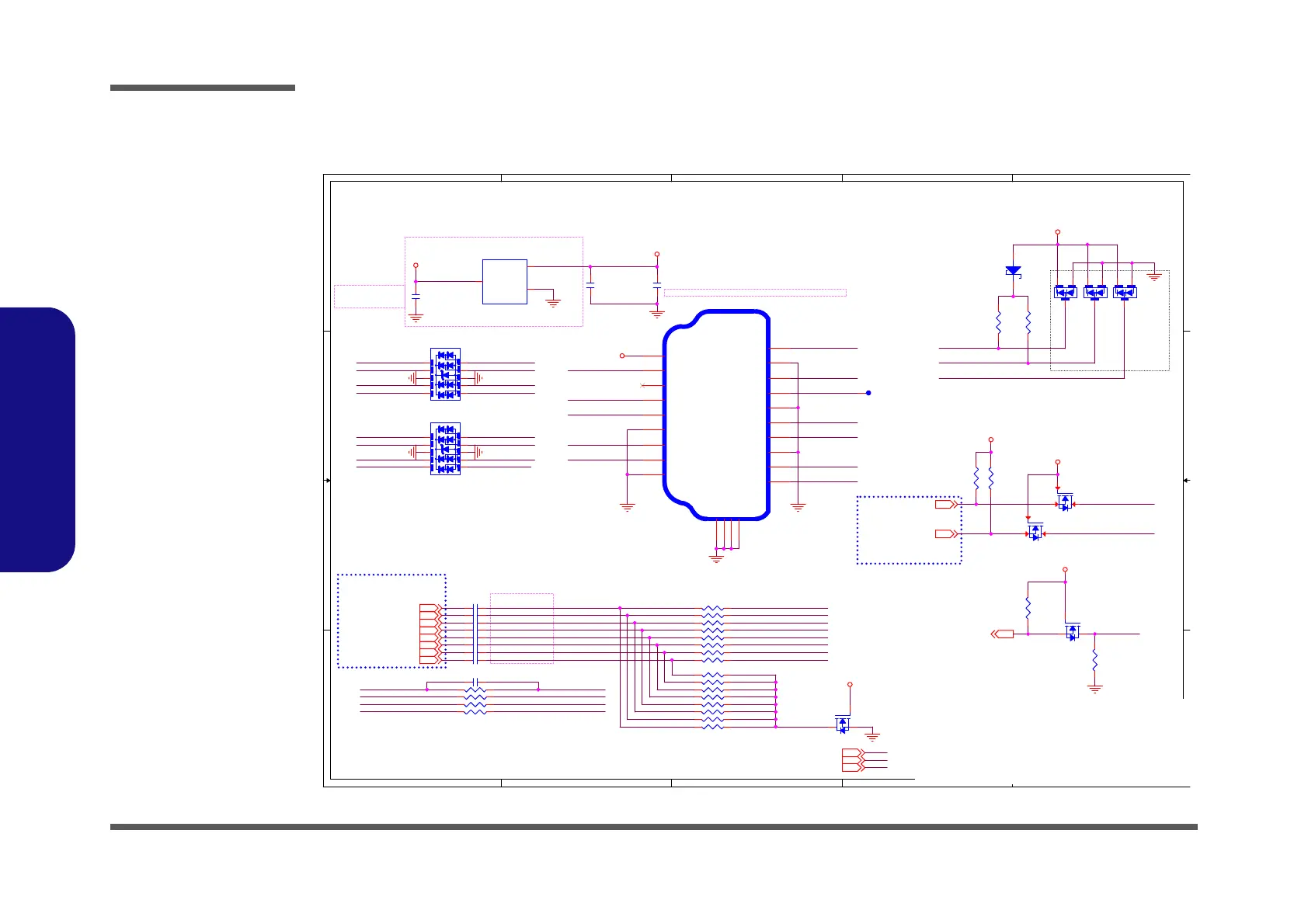

HDMI
Schematic Diagrams
B - 12 HDMI
B.Schematic Diagrams
HDMI
