Clevo PB50EF - Removing the M.2 SSD Module

Disassembly
2 - 10 Removing the M.2 SSD Module
2.Disassembly
Removing the M.2 SSD Module
M.2 SSD Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5), keyboard (page 2 - 6) and bottom cover (page 2 - 7).
2. The M.2 SSD modules will be visible at point on the mainboard (Figure 6a).
3. Remove the screw
(Figure 6b).
4. The M.2 SSD module (Figure 6c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3
3
2
1

3.M2 SSD Module
•1 Screw
Figure 6

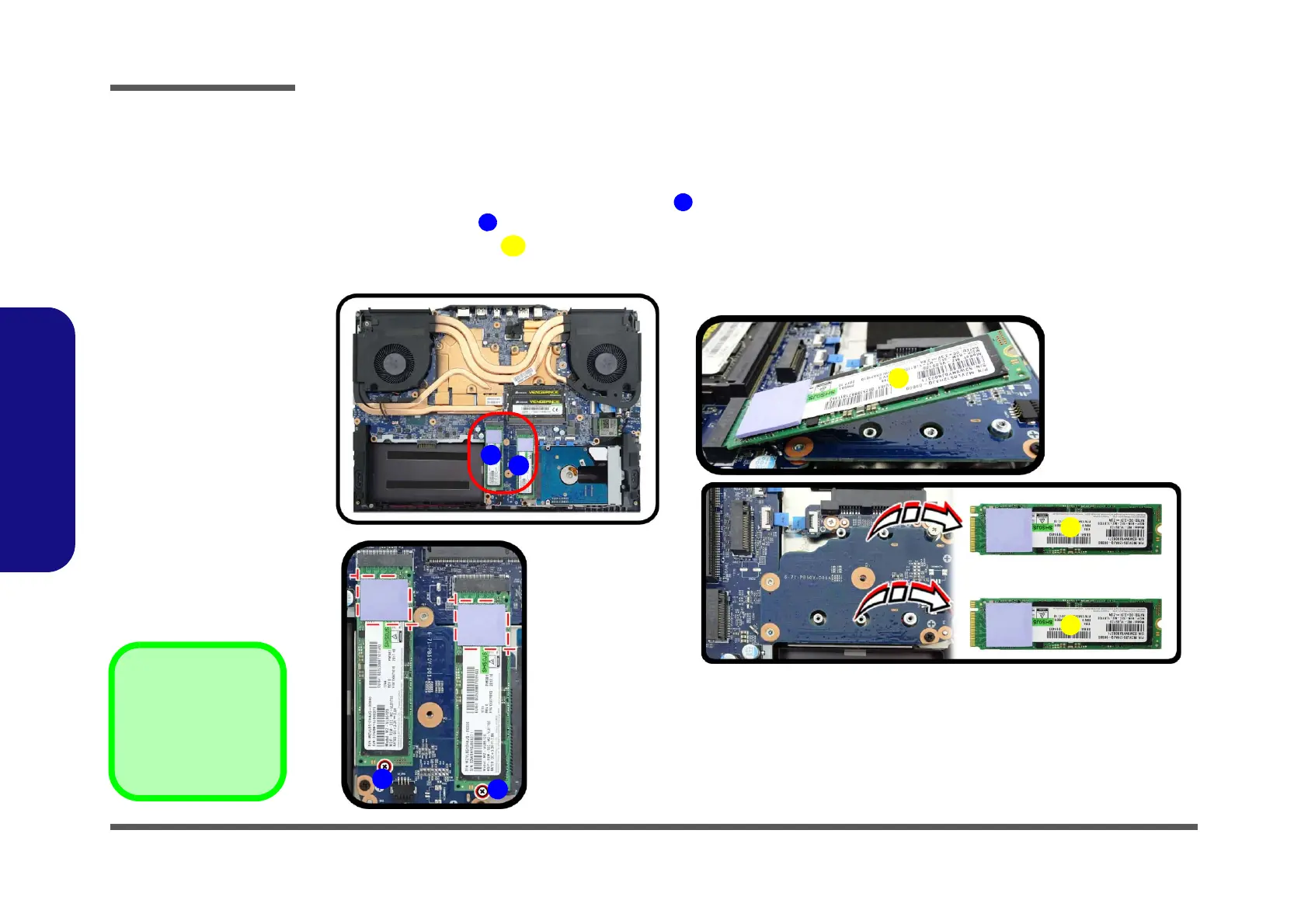

M.2 SSD-1 Module
Removal
a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
