Clevo PB50EF - Smart AMP for Subwoofer

Schematic Diagrams
Smart AMP for Subwoofer B - 91
B.Schematic Diagrams
Smart AMP for Subwoofer
5
5
4
4
3
3
2
2
1
1
D D
C C
B B
A A
GPIO0 9 DI/O General-purpose input/output, function of this pin can be programmed by register (Register Address 0x60h and 0x61h)
GPIO1 10 DI/O General-purpose input/output, function of this pin can be programmed by register (Register Address 0x60h and 0x62h)
GPIO2 11 DI/O General-purpose input/output, function of this pin can be programmed by register (Register Address 0x60h and 0x63h)
NEAR 5825 PIN3/PIN4
0 ohm
R2 I2C AdrR1
ADR PIN Config
(I2C Slave Address 1)
DNP
DNP
4.7K
15K
1K
ADR3
ADR0
ADR1
DNP
DNP
ADR2
NEAR 5825 PIN21/PIN22

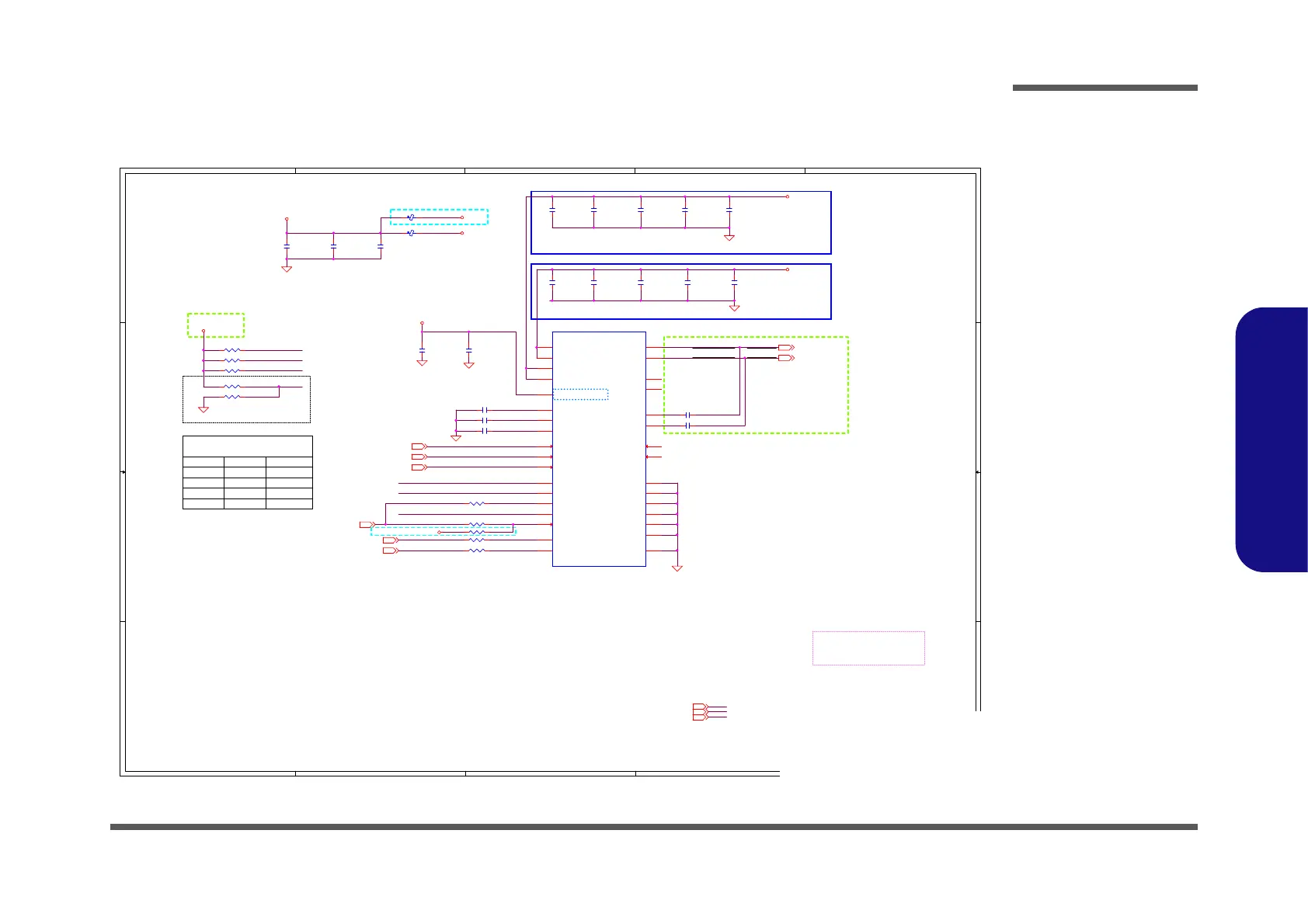

SMART AMP FOR SUBWOOFER
10V
R1
R2
1001111(0x9E).
MAX 25.5mA
20180723 Del XSUB_GND
2A
L-CHANNEL
40 mil
D02 R,L swap
2A
40 mil
D02 10/18 modify PWR net
D02A Modify
D02A rsvd for smart AMP pwr
XAMP_3.3VS_2
XAMP_PWR
XAMP_PWR
X3.3VS
XAMP_3.3VS_2
XAMP_3.3VS_2
XAUDG
XAUDG
XAUDG
XAUDG
XAUDG
XAUDG
XAUDG
XAUDG
XAMP_3.3VS_2
X3.3V
XP_I2S_DOUT186,89
XP_I2S_SCLK86,89
XP_I2S_LRCK86,89
XSDA_582586,89
XSCL_582586,89
XAMP_EN_WOOFER86,88
XAMP_PWR86,88,89
X3.3VS86,88,89,91
XSUBWOOFER+_2 91
XSUBWOOFER-_2 91
X3.3V86,89
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB50V-D03
D03
[90] CR BD SMART AMP For Subwoofer_X
A3
90 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB50V-D03
D03
[90] CR BD SMART AMP For Subwoofer_X
A3
90 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
Title
Size Document Number Rev
Date: Sheet
of
6-71-PB50V-D03
D03
[90] CR BD SMART AMP For Subwoofer_X
A3
90 91Friday, December 07, 2018
ᙔ!Ϻ!ႝ!တ!!DMFWP!DP/
PB50EF
XC42
1u_25V_X5R_06
CR BD S SUB
XC25 1u_25V_X5R_06
CR BD S SUB
XC19 1u_25V_X5R_06
CR BD S SUB
XR13 22_04
CR BD S SUB
XC35
1u_25V_X5R_06
CR BD S SUB
XR91 *100K_04
CR BD S SUB
XL7 HCB1608KF-121T30
CR BD S SUB
XC48 0.22u_16V_X7R_06
CR BD S SUB
XC49
10u_25V_X5R_08
CR BD S SUB
XL17 *HCB1608KF-121T30
CR BD S SUB
XR16 *0_04
CR BD S SUB
XR12 0_04
CR BD S SUB
XC44
10u_25V_X5R_08
CR BD S SUB
XC50
10u_25V_X5R_08
CR BD S SUB
XC17 1u_25V_X5R_06
CR BD S SUB
XC43
10u_25V_X5R_08
CR BD S SUB
XC22
10u_25V_X5R_08
CR BD S SUB
XC40
10u_25V_X5R_08
CR BD S SUB
XC18
22u_6.3V_X5R_06
CR BD S SUB
XC41
10u_25V_X5R_08
CR BD S SUB
XC26
0.1u_6.3V_X5R_02
CR BD S SUB
XR15 *10K_04
CR BD S SUB
XC51
10u_25V_X5R_08
CR BD S SUB
XC29
4.7u_6.3V_X5R_04
CR BD S SUB
XR20 15K_04
CR BD S SUB
XC27
0.1u_6.3V_X5R_02
CR BD S SUB
XC28
0.1u_6.3V_X5R_02
CR BD S SUB
XC47 0.22u_16V_X7R_06
CR BD S SUB
XR18 *10K_04
CR BD S SUB
XR17 *10K_04
CR BD S SUB
XR19 *0_04
CR BD S SUB
TAS5825MRHBR
XU1 TAS5825MRHBR
CR BD S SUB
SCLK
13
LRCLK
12
GVDD
18
VR_DIG
7
SDIN
14
PVDD_AB
4
PVDD_AB
3
PVDD_CD
21
PVDD_CD
22
DVDD
6
ADR
8
GPIO1
9
GPIO2
10
GPIO3
11
PDN
17
SDA
15
SCL
16
DGND
5
AGND
20
PGND
25
PGND
26
PGND
31
PGND
32
BST_D
24
BST_C
28
BST_B
29
BST_A
1
OUT_D
23
OUT_C
27
OUT_B
30
OUT_A
2
AVDD
19
PowerPAD
33
XR14 22_04
CR BD S SUB
XAMP_FAULTZ_2
XAMP_MUTE_2
XAMP_MUTE_2
XGPIO3_5825_2
XAMP_EN_WOOFER
XGPIO3_5825_2
XAMP_FAULTZ_2
XADR_2
XADR_2
XSUBWOOFER+_2
XSUBWOOFER-_2
XAMP_EN_WOOFER
Sheet 90 of 91
Samrt AMP for
Subwoofer
