Disassembly
Removing the Hard Disk Drive 2 - 7
2.Disassembly
Removing the Hard Disk Drive
The hard disk drive can be taken out to accommodate other 2.5" serial (SATA) hard disk drives with a height of 7mm
(h). Follow your operating system’s installation instructions, and install all necessary drivers and utilities (as outlined in
Chapter 4 of the User’s Manual) when setting up a new hard disk.

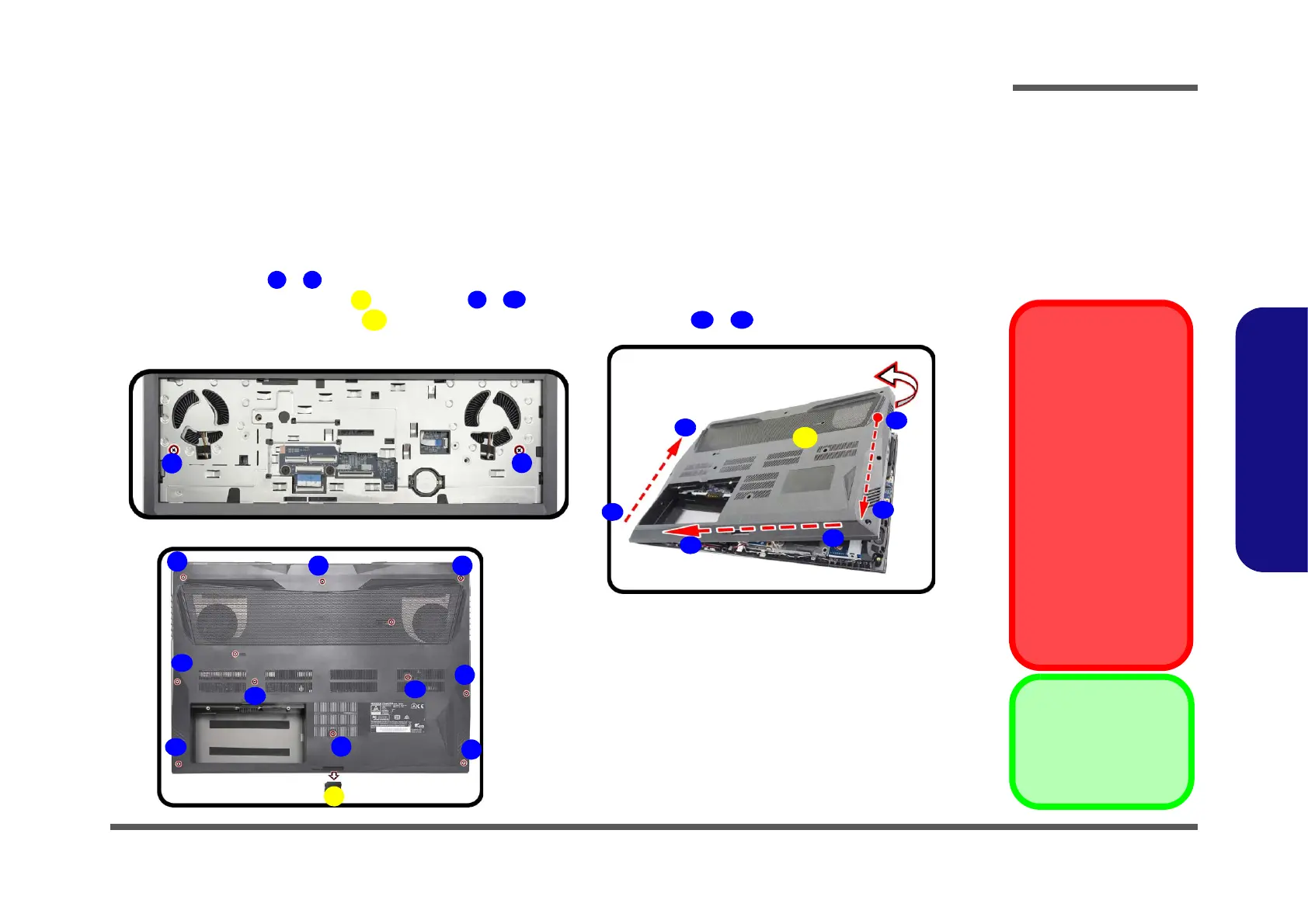

Hard Disk Disassembly Process
Figure 3
HDD Assembly
Removal
a. Remove the screws.
b. Remove the SD cover
and screws.
c. Remove the bottom
case.
3. SD Card Cover
16. Bottom Case
•12 Screws
HDD System Warning
New HDD’s are blank. Be-
fore you begin make sure:
You have backed up any
data you want to keep from
your old HDD.
You have all the CD-ROMs
and FDDs required to install
your operating system and
programs.
If you have access to the in-
ternet, download the latest
application and hardware
driver updates for the operat-
ing system you plan to in-
stall. Copy these to a
removable medium.
1. Turn off the computer, remove the battery (page 2 - 5) and keyboard (page 2 - 6).
2. Remove screws
- (Figure 3a).
3. Remove the SD card cover and screws - (Figure 3b).
4. Carefully lift the bottom case
up in the direction of the arrow at point - and remove it (Figure 3c).
a.
b.
3
13
7
15
8
9
11
12
19
10
14
16
17
18
4
5 6
c.
2
1
20
To Next Page
