1 - 6 External Locator - Left Side & Rear View
1.Introduction
External Locator - Left Side & Rear View
/

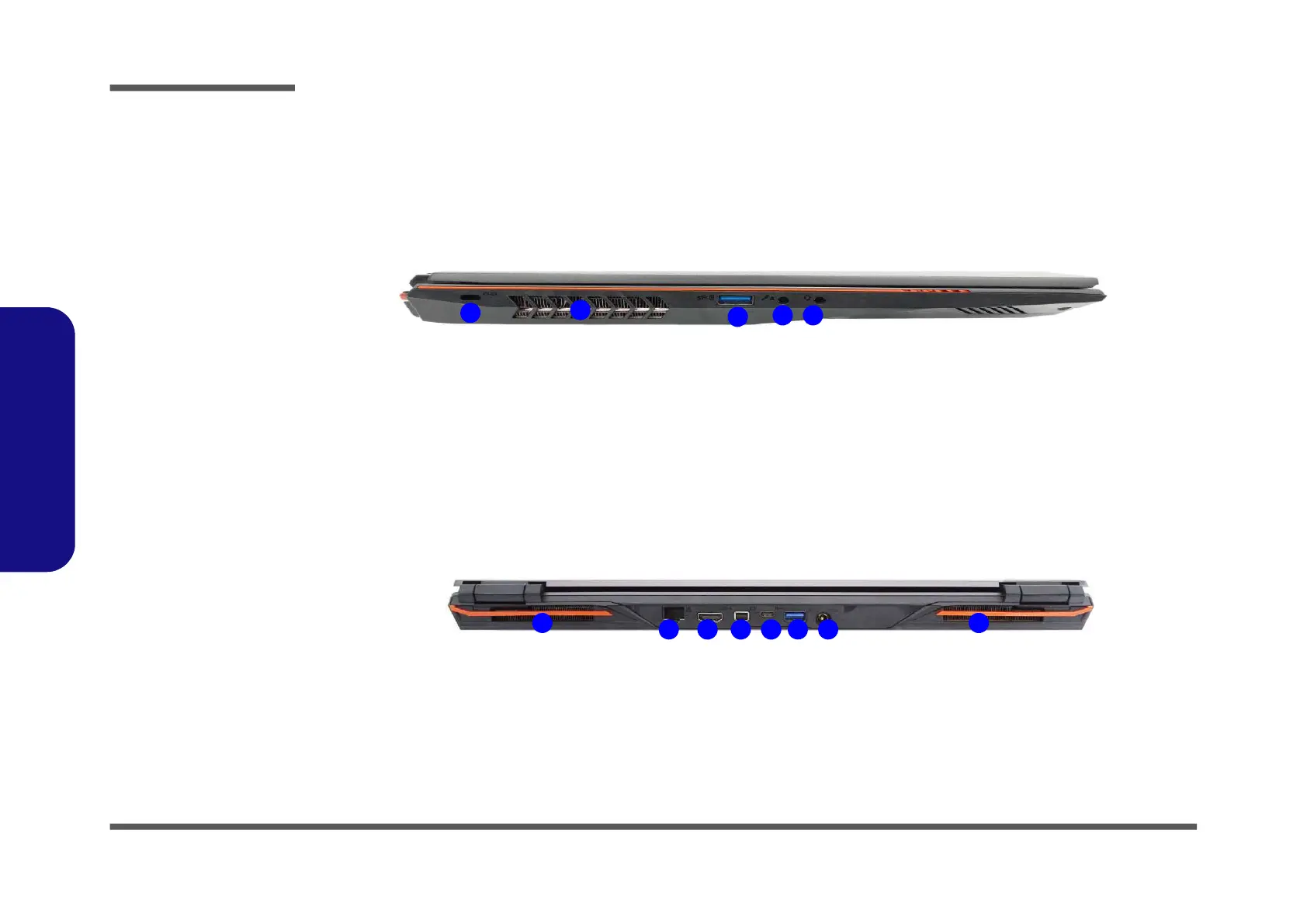

Figure 4
Left Side View
1. Security Lock Slot
2. Vent
3. *Powered USB
3.0 (USB 3.1 Gen
1) Type-A Port
4. 2-In-1 Audio Jack
(Microphone and
S/PDIF Optical)
5. 2-In-1 Audio Jack
(Headphone and
Microphone)
LEFT SIDE VIEW
1
2
3
4 5
Figure 5
Rear View
1. Vent
2. RJ-45 LAN Jack
3. HDMI-Out Port
4. Mini DisplayPort
1.3
5. DisplayPort 1.3
over USB 3.1 Gen
2 Type-C Port
6. USB 3.0 (USB 3.1
Gen 1) Type-A
Port
7. DC-In Jack
REAR VIEW
1 1
2 3 4 5 6 7
