Introduction
Mainboard Overview - Bottom (Connectors) 1 - 11
1.Introduction

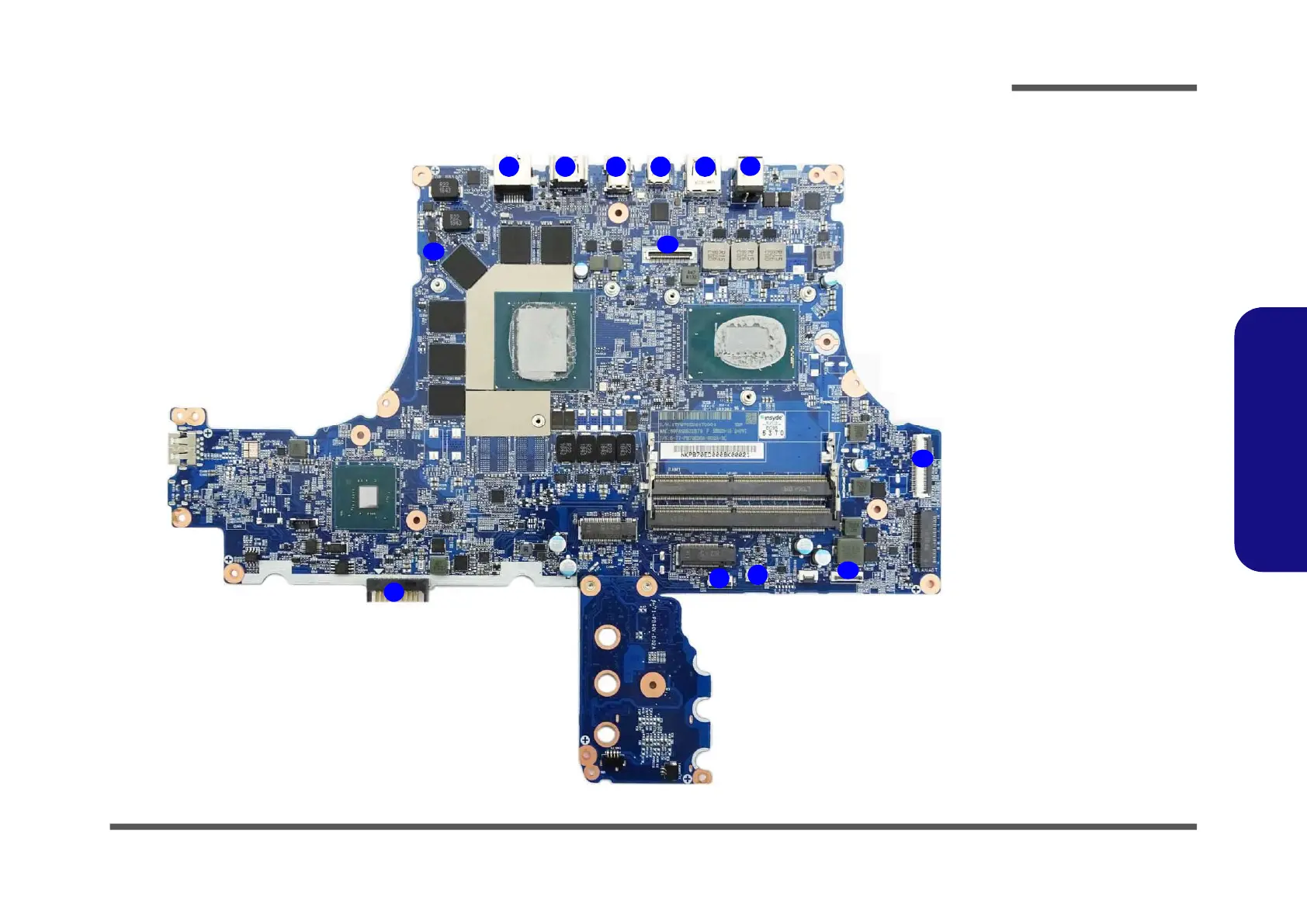

Mainboard Overview - Bottom (Connectors)
Figure 10
Mainboard Bottom
Connectors
1. RJ-45 LAN Jack
2. HDMI-Out Port
3. Mini DisplayPort
1.3
4. DisplayPort 1.3
over USB 3.1 Gen
2 Type-C Port
5. USB 3.0 (USB 3.1
Gen 1) Type-A Port
6. DC-In Jack
7. Battery Connector
8. HDD Cable
Connector
9. Toucpad Cable
Connector
10. LED Indicator
Connector
11. Audio Board
Connector
12. Panel Connector
13. CCD Connector
11
12
1
2 43 5
6
7
8
9
10
13
