Disassembly

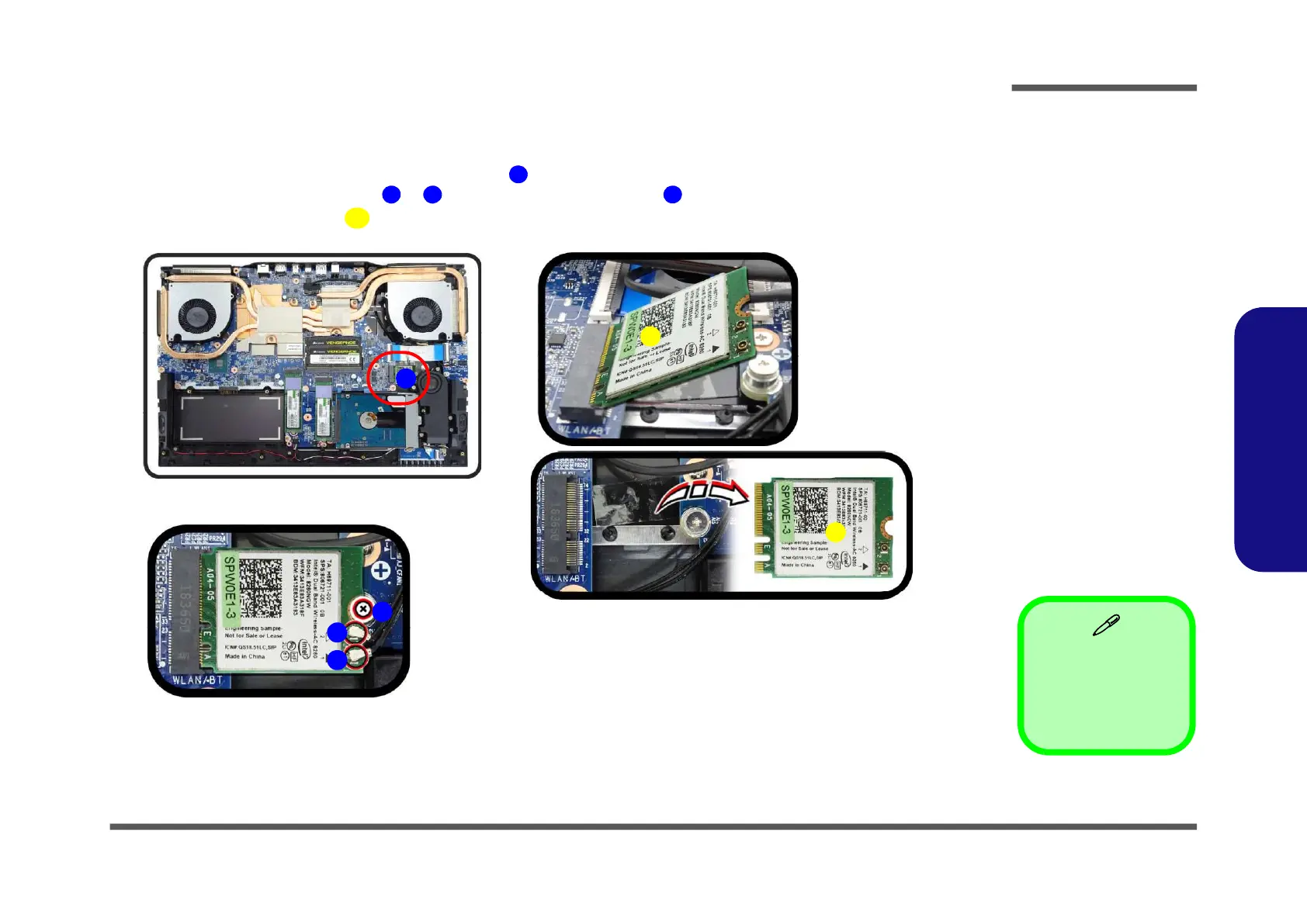

Removing the Wireless LAN Module 2 - 11
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5), keyboard (page 2 - 6) and bottom case (page 2 - 7).
2. The Wireless LAN module will be visible at point on the mainboard (Figure 7a).
3. Carefully disconnect the cables & , and then remove the screw (Figure 7b)
4. The Wireless LAN module (Figure 7c) will pop-up, and you can remove it from the computer.
1
2 3 4
5
b.
c.
a.
5
1
5
2
3
4
5.Wireless LAN Module
• 1 Screw
Figure 7
Wireless LAN
Module Removal
a. Locate the WLAN.
and remove the screw.
pop up.
socket (Figure 7b).
To Next Page
