Disassembly
Removing the CCD 2 - 13
2.Disassembly
Removing the CCD
1. Turn off the computer, turn it over to remove the battery (page 2 - 5).
2. Lay the computer down on a flat surface with the top case up forming a 130 degree angle.

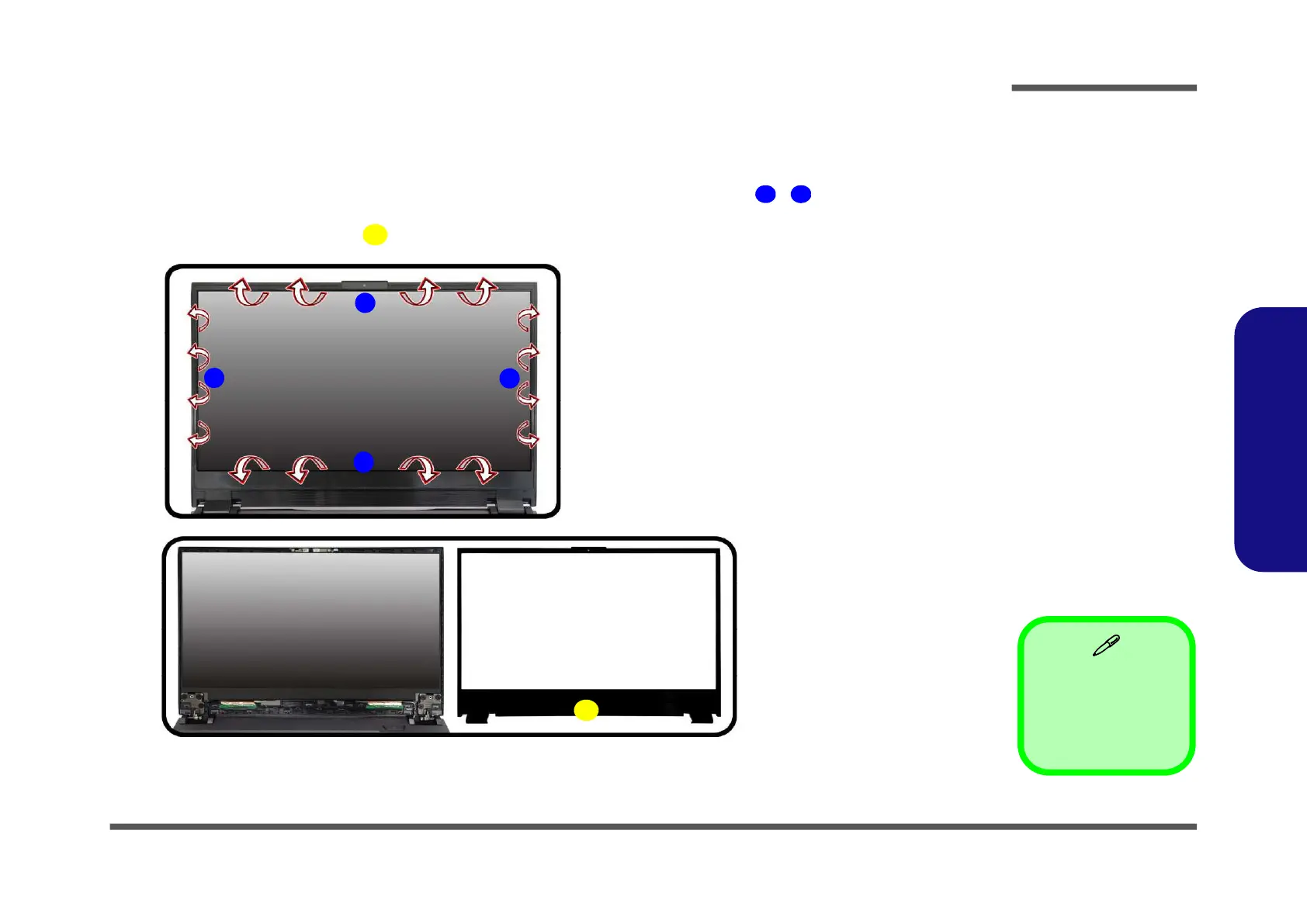

3. Carefully run your fingers around the inner frame of the LCD panel to lift at points - as indicated by the
arrows (Figure 8a).
4. Remove the LCD front cover (Figure 8b).
1 4
5
b.
a.
5
2
1
4
3
5. LCD Front Cover
Figure 8
CCD Removal
a. Carefully release the in-
panel at the points indi-
cated by the arrows.
cover.
