2 - 14 Removing the CCD
2.Disassembly
5. Disconnect the cable from the locking collar socket by using a flat-head screwdriver to pry the locking collar
pins away from the base (Figure 9c).
6. Remove the CCD module (Figure 9d).
7. Reverse the process to install a new CCD module.
6
7
8
d.
c.
8
6
7
8. CCD Module
Figure 9
CCD Removal
(cont’d)

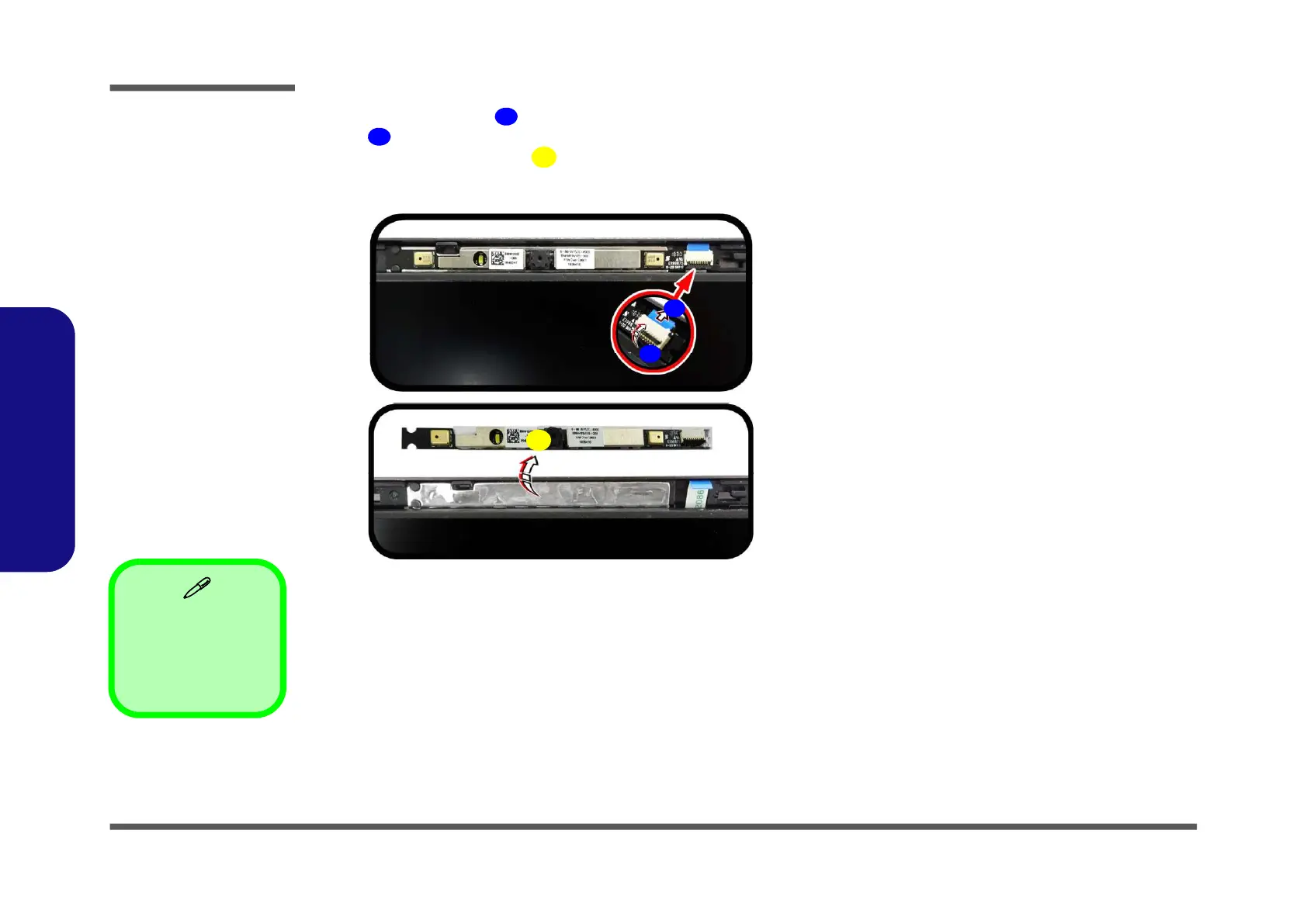

c. Disconnect the cable
from the locking collar
socket.
d. Remove the CCD mod-
ule.
