Clevo PB71EF User Manual

Disassembly
2 - 10 Removing the M.2 SSD Module
2.Disassembly
Removing the M.2 SSD Module
M.2 SSD-1 Removal Procedure
1. Turn off the computer, remove the battery (page 2 - 5), keyboard (page 2 - 6) and bottom case (page 2 - 7).
2. The M.2 SSD module will be visible at point on the mainboard (Figure 6a).
3. Remove the screw (Figure 6b).
4. The M.2 SSD module (Figure 6c) will pop-up, and you can remove it from the computer.
5. Reverse the process to install a new module (do not forget to replace the screws and thermal pad).
1
2
3
b.
c.a.
2
3
1
3
3
2
1
3.M2 SSD Module
• 1 Screw
Figure 6
M.2 SSD-1 Module
Removal

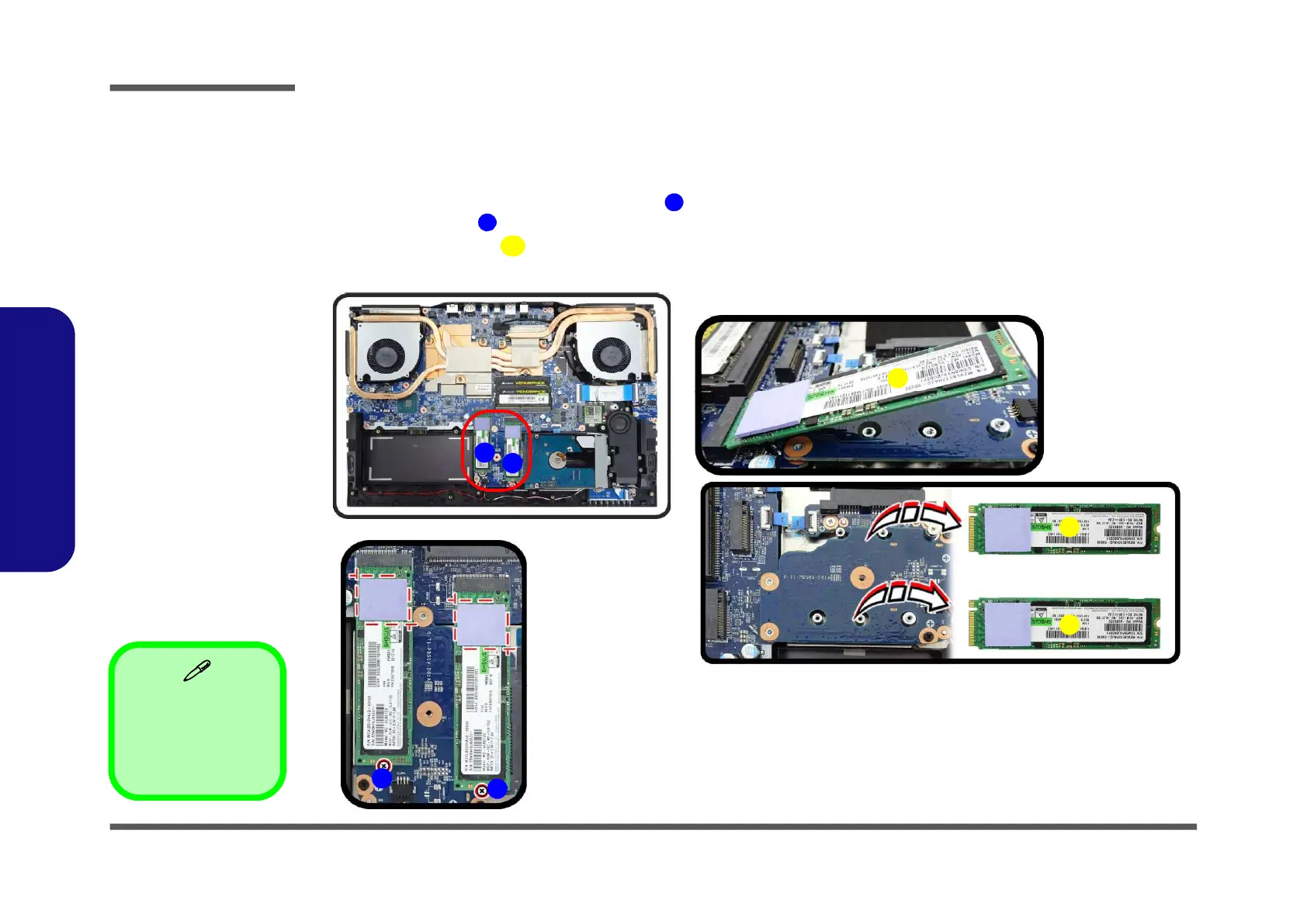

a. Locate the M.2 SSD.
b. Remove the screw.
c. The M.2 SSD module
will pop up.
