Mainboard Overview - Top (Connectors)

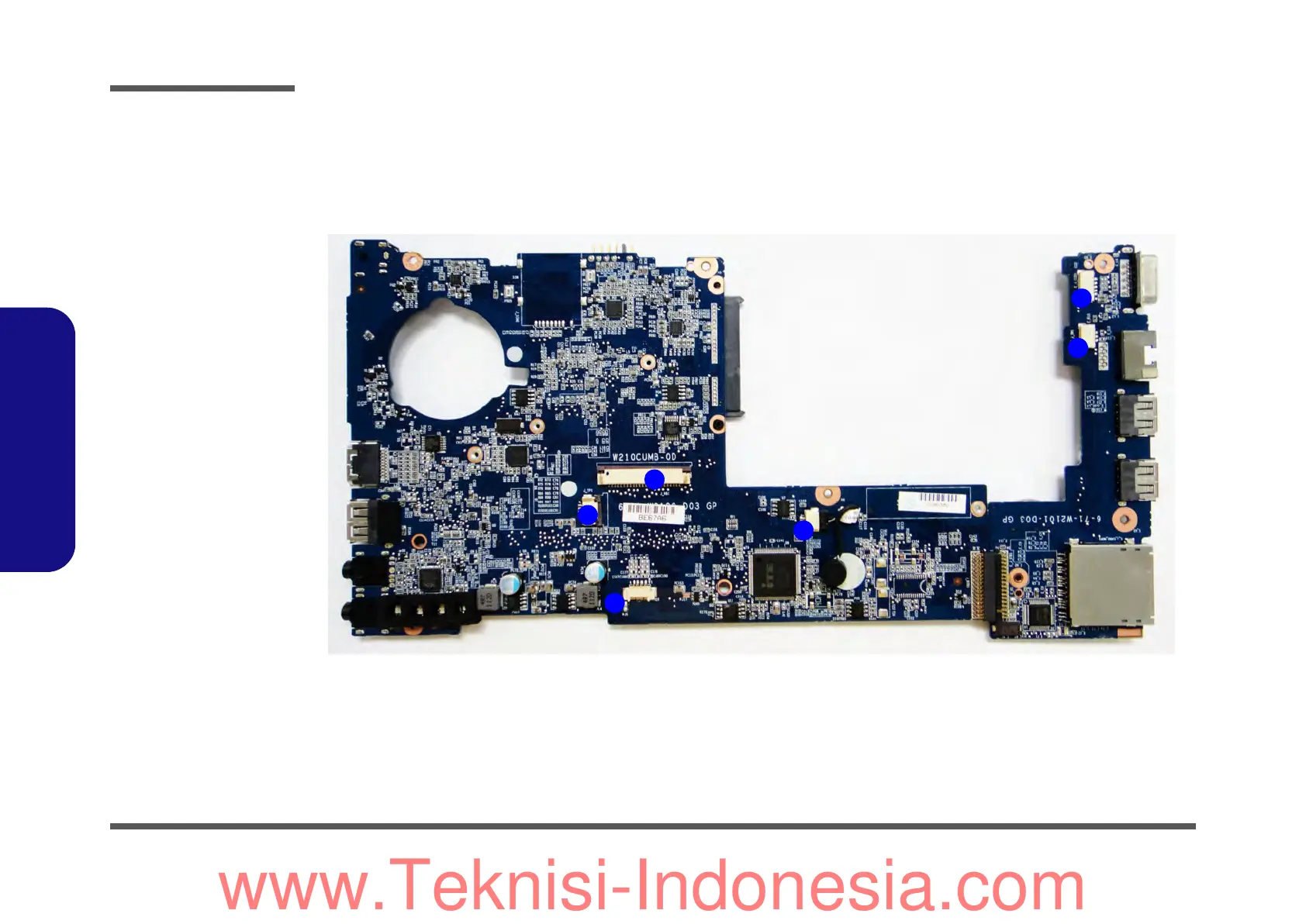

Figure 9
Mainboard Top
Connectors
1. Keyboard Cable
Connector
2. TouchPad Cable
Connector
3. Speaker Cable
Connector
4. Microphone
Cable Connector
5. Switch Board
Cable Connector
6. CCD Cable
Connector
6
5
1
2
3
4
