2 - 8 Removing the Wireless LAN Module
2.Disassembly
Removing the Wireless LAN Module
1. Turn off the computer, remove the battery (page 2 - 5) and the component bay cover (page 2 - 6).
2. Carefully disconnect cables & , then remove screw from the module socket (Figure 4a).
3. The Wireless LAN module (Figure 4b) will pop-up.
4. Lift the Wireless LAN module (Figure 4c) up and off the computer.

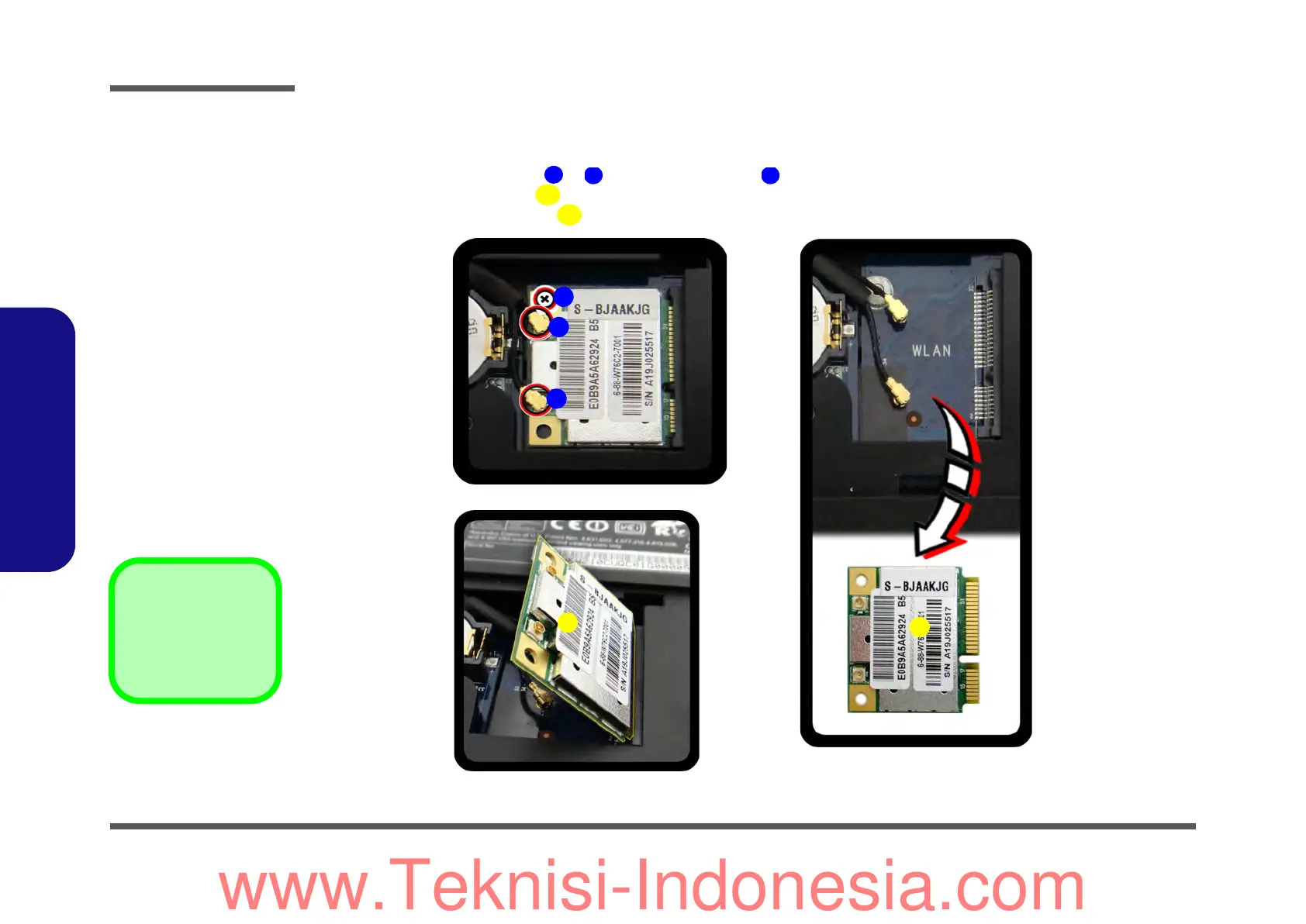

Figure 4
Wireless LAN
Module Removal
a. Remove the cover and
disconnect the cables
and remove the screw.
b. The WLAN module will
pop up.
c. Lift the WLAN module
out.
Note: Make sure you
reconnect the antenna
cable to ‘’1’’ +
‘’2’’socket (Figure
b).
1
2
3
4
4
4
b.
c.
a.
2
3
1
4

4. WLAN Module.
•1 Screw
