1 - 8 Mainboard Overview - Top (Key Parts)
1.Introduction

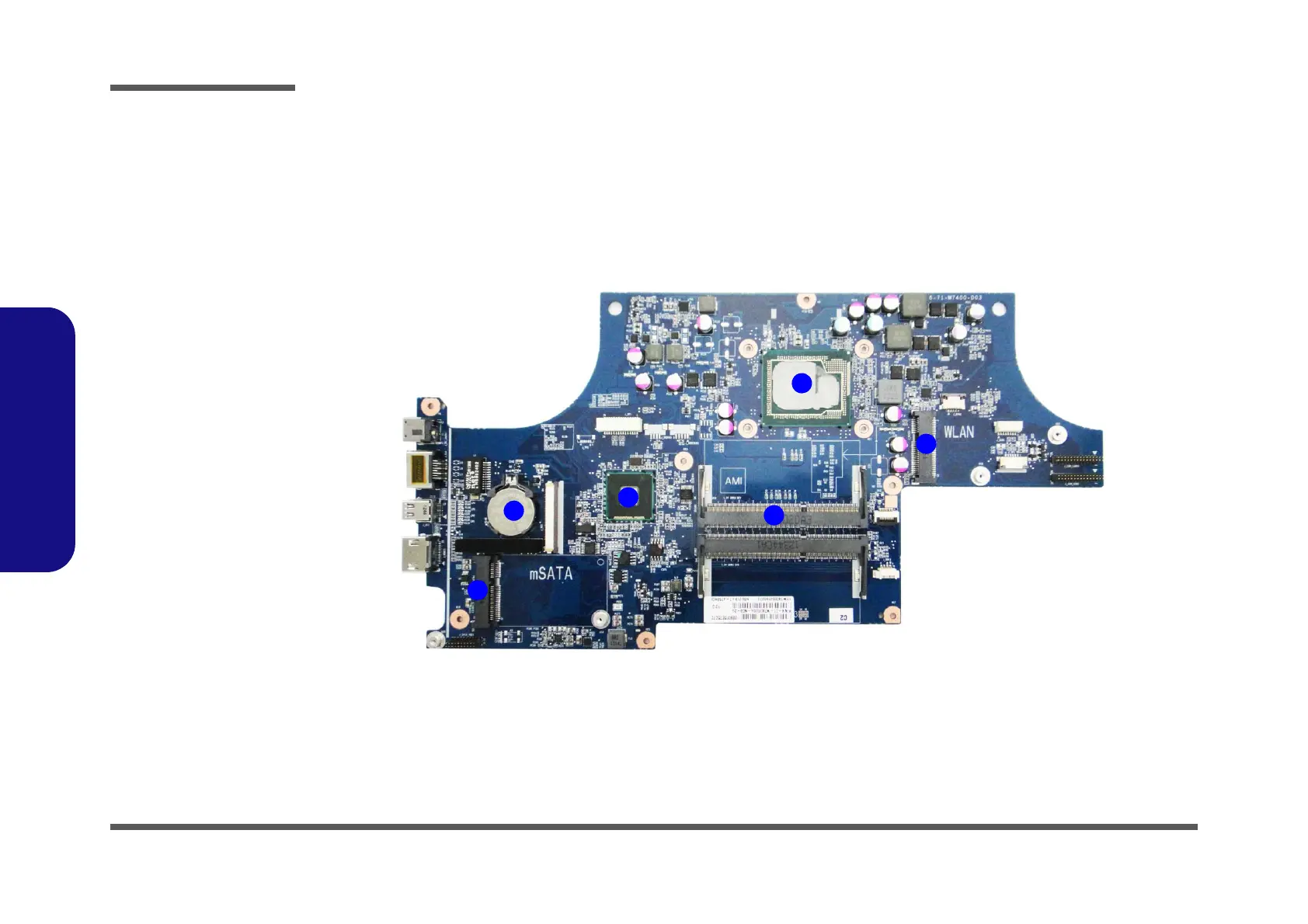

Mainboard Overview - Top (Key Parts)
Figure 7
Mainboard Top
Key Parts
1. Mini-Card
Connector (mSATA
Module)
2. Memory Slots
DDR3 SO-DIMM x 2
3. Mini-Card
Connector (WLAN
Module)
4. Intel CPU
5. Platform Controller
Hub
6. CMOS Battery
2
3
1
4
5
6
