Clevo W740SU - Removing the mSATA Module; 1; 2; 3

Disassembly
Removing the mSATA Module 2 - 11
2.Disassembly
Removing the mSATA Module
Figure 7
mSATA Module
Removal
a. Locate the mSATA mod-
ule.
b. Remove the screw.
c. The module will pop-up.
d. Remove the mSATA
module.

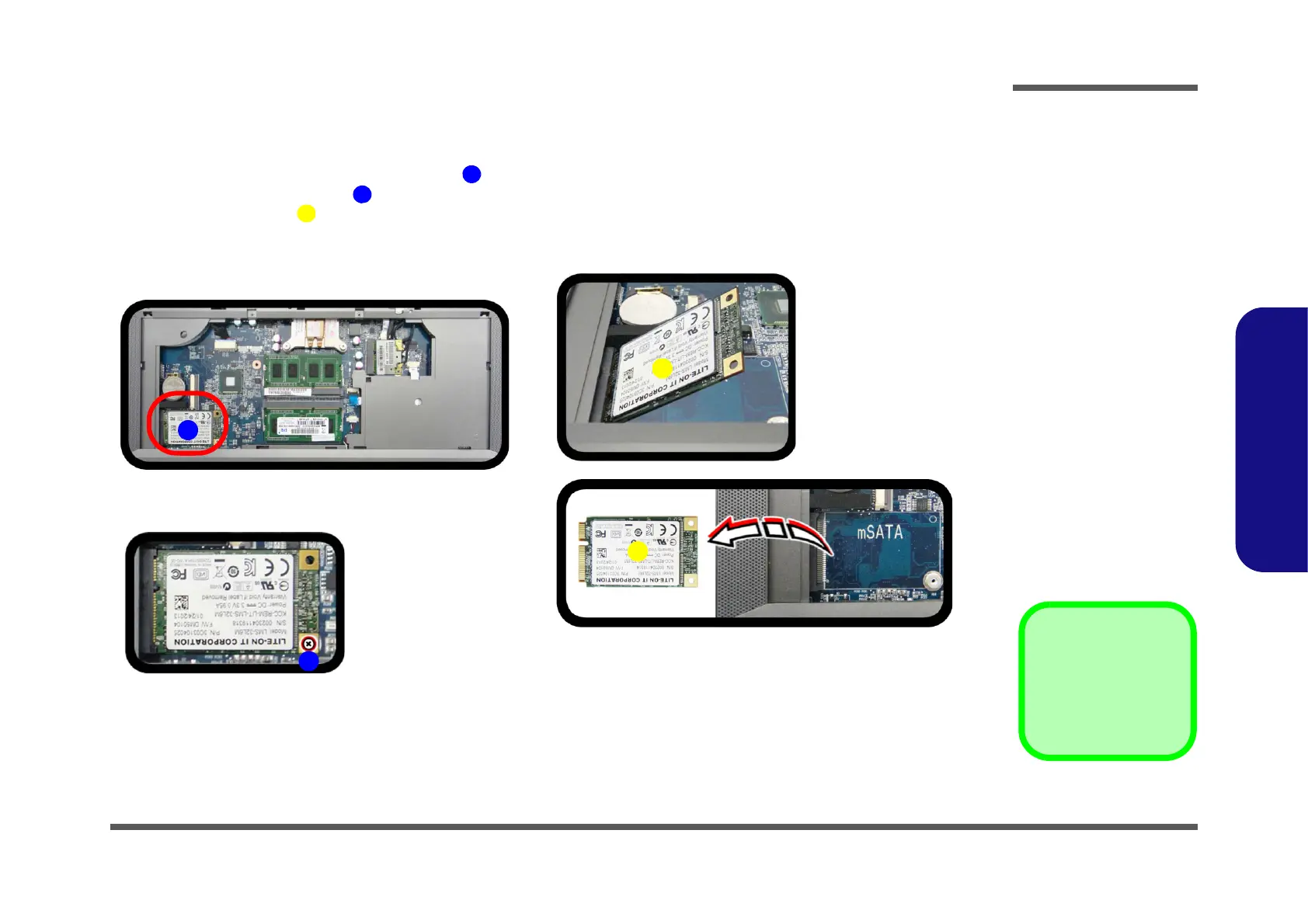

1. Turn off the computer, turn it over, remove the battery (page 2 - 5) and keyboard (page 2 - 8).
2. The mSATA module will be visible at point on the mainboard (Figure 8a).
3. Carefully remove the screw
(Figure 8b).
4. The mSATA module (Figure 8c) will pop-up, and you can remove it from the computer (Figure 8d).
1
2
3
b.
c.
a.
2
3
d.
3
1

3. mSATA Module
•1 Screw
