Mainboard Overview - Top (Connectors)

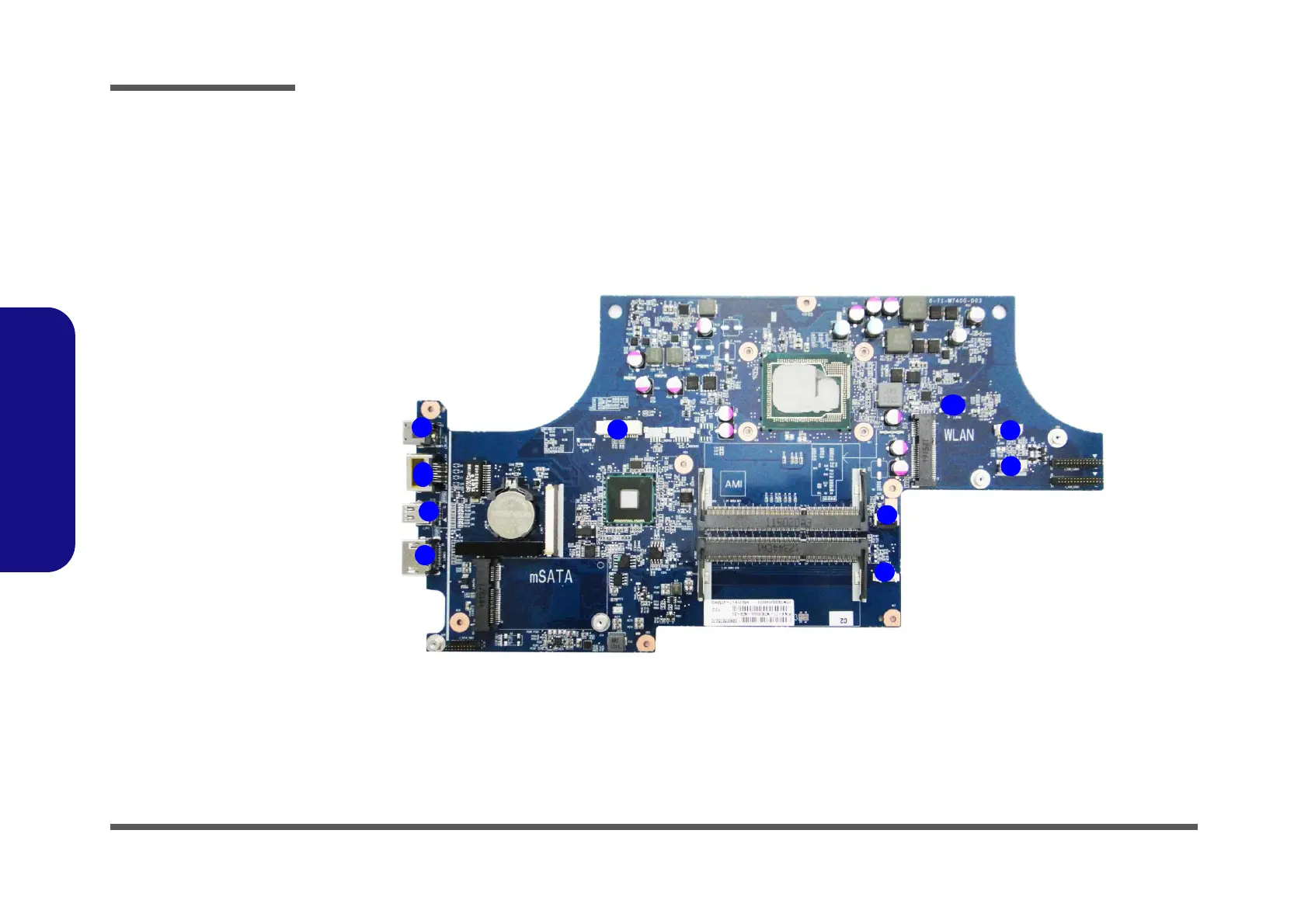

Figure 9
Mainboard Top
Connectors
1. DC-In Jack
2. RJ-45 LAN Jack
3. Mini Display Port
4. HDMI-Out Port
5. EDP Connector
6. Speaker
Connector
7. LED Connector
8. TP Connector
9. CCD Connector
10.Power Button
Connector
7
8
9
5
6
10
1
2
3
4
