Clevo W740SU - Removing the Keyboard; 1; 2; 3

Disassembly
Removing the Keyboard 2 - 7
2.Disassembly
Removing the Keyboard
1. Turn off the computer, turn it over, remove the battery (page 2 - 5).
2. Lift the center cover at point
toward the direction of the arrow (Figure 4a).
3. Remove the center cover module and screws - (Figure 4b).
4. Carefully lift the keyboard up, being careful not to bend the keyboard ribbon cable (Figure 4c).
5. Disconnect the keyboard ribbon cable from the locking collar socket (Figure 4c).
1
2
3
4
5
6
7
8
c.
4 5
3
1
a.
b.
2
7
8
8
6

3.Center Cover Module
6.Keyboard
•2 Screws
Figure 3
Keyboard Removal

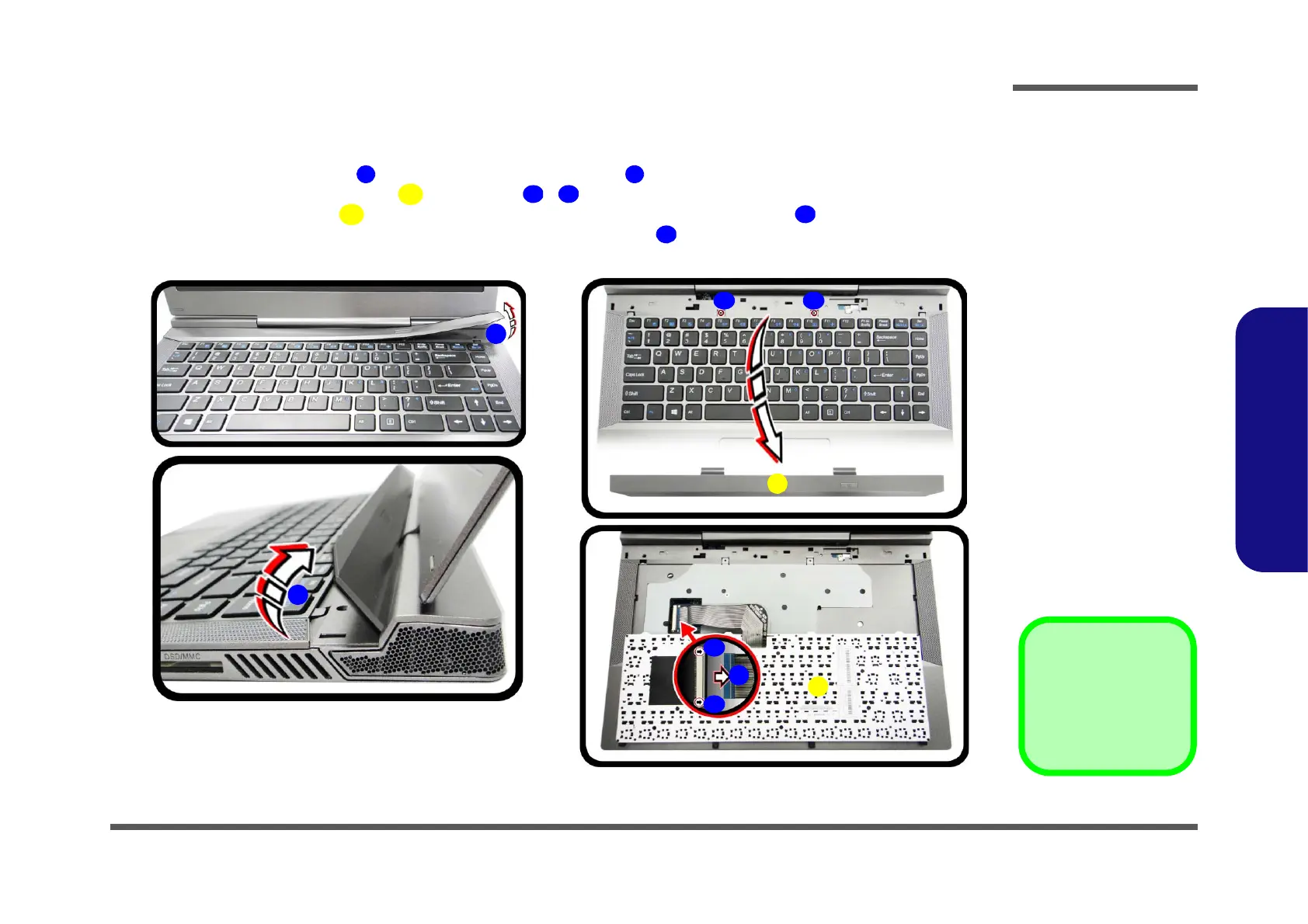

a. Lift the center cover.
b. Remove the center cov-
er and screws.
c. Disconnect the keyboard
ribbon cable from the
locking collar socket.
