Air Coil - To obtain maximum performance, the air coil
should be cleaned before start-up. A 10% solution of
dishwasher detergent and water is recommended for
both sides of the coil. A thorough water rinse should
follow. UV based anti-bacterial systems may damage
coated air coils.
Notice! Installation Note - Ducted Return: Many
horizontal WSHPs are installed in a return air ceiling
plenum application (above ceiling). Vertical WSHPs
are commonly installed in a mechanical room with free
return (e.g. louvered door). Therefore, fi lter rails are the
industry standard and are included on ClimateMaster
commercial heat pumps for the purposes of holding
the fi lter only. For ducted return applications, the fi lter
rail must be removed and replaced with a duct fl ange
or fi lter frame. Canvas or fl exible connectors should
also be used to minimize vibration between the unit
and ductwork.

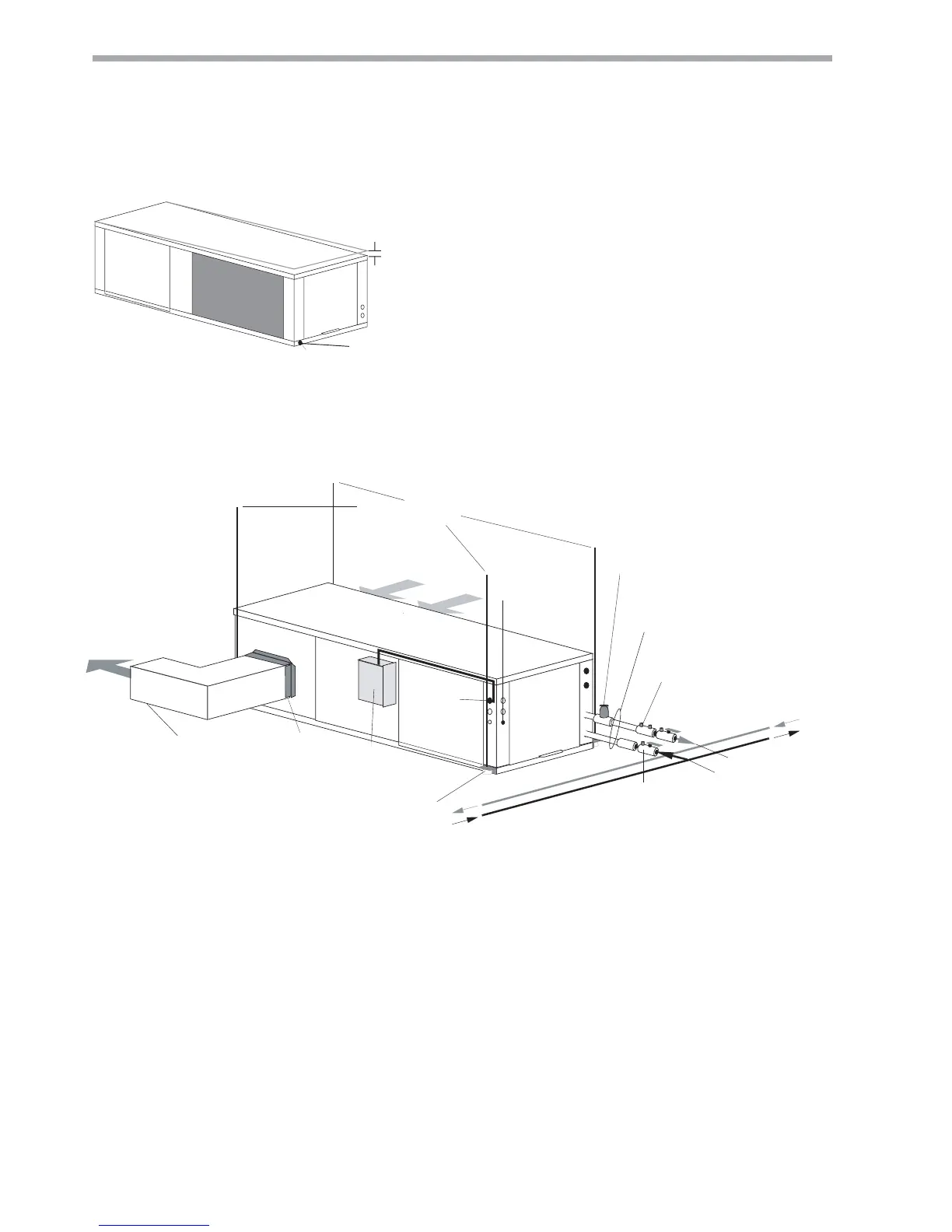

Figure 3: Typical Horizontal Unit Installation
(by others)
Thermostat
Wiring
Water In
Water Out
Optional Balancing Valve
Stainless steel braid hose
with integral "J" swivel
Building
Loop
Power Wiring
Return Air
Supply Air
Unit Hanger
Ball Valve with optional
integral P/T plug
3/8" [10mm] threaded rods
Unit Power
Flexible Duct
Connector
Insulated supply duct with
at least one 90 deg elbow
to reduce noise
Unit Power
Disconnect
(by others)
Optional Low Pressure Drop Water
Control Valve
(can be internally mounted
on some models)
Figure 2: Horizontal Unit Pitch
6.4mm pitch
for drainage
Drain Connection
