Tranquility 16 (TC) Series
Rev.: 25 July, 2017
ASPASPASP
CCPCCP
ASP
ASP ASP
BSP
BSP BSP
BSP
ASP ASP

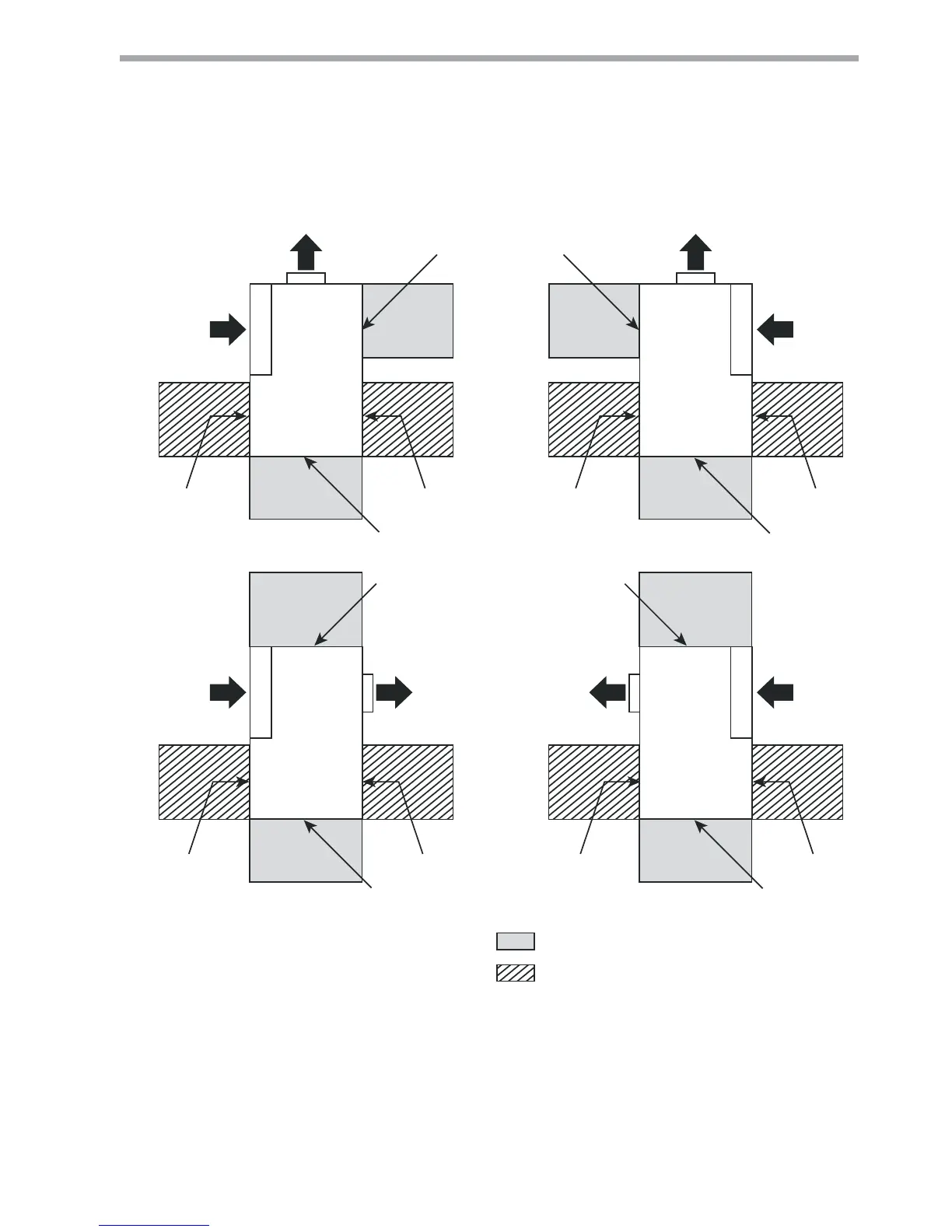

Return
Air Flow
Left Return Back Discharge
Supply
Air Flow
Air Coil
Right Return Back Discharge
Supply
Air Flow
Air Coil
Return
Air Flow
Return
Air Flow
Right Return Straight Discharge
Supply
Air Flow
Supply
Air Flow
Air Coil
Return
Air Flow
Left Return Straight Discharge
= mandatory 61 cm service access
= (optional) additional 61 cm service access
Air Coil
Front Front
FrontFront
CCP CCP
Notes:
1. While clear access to all removable panels is not required,
installer should take care to comply with all building codes
and allow adequate clearance for future fi eld service.
2. CCP and BSP requires 61 cm service access.
3. Blower service access is through back panel on straight
discharge units or through panel opposite air coil on back
discharge units.
4. ASP are removable panels that provide additional access to
the units interior. Clear access to ASP panels is not required
and they are not to be used in place of the mandatory CCP
and BSP panels.
Legend:
CCP = Control/Compressor Access Panel
BSP = Blower Service Panel
ASP = Additional Service Panel (not required)
