17
THE SMART SOLUTION FOR ENERGY EFFICIENCY
Tranquility
®
(TR) Series
Rev.: November 2, 2020
climatemaster.com
Ground-Loop Heat Pump Applications

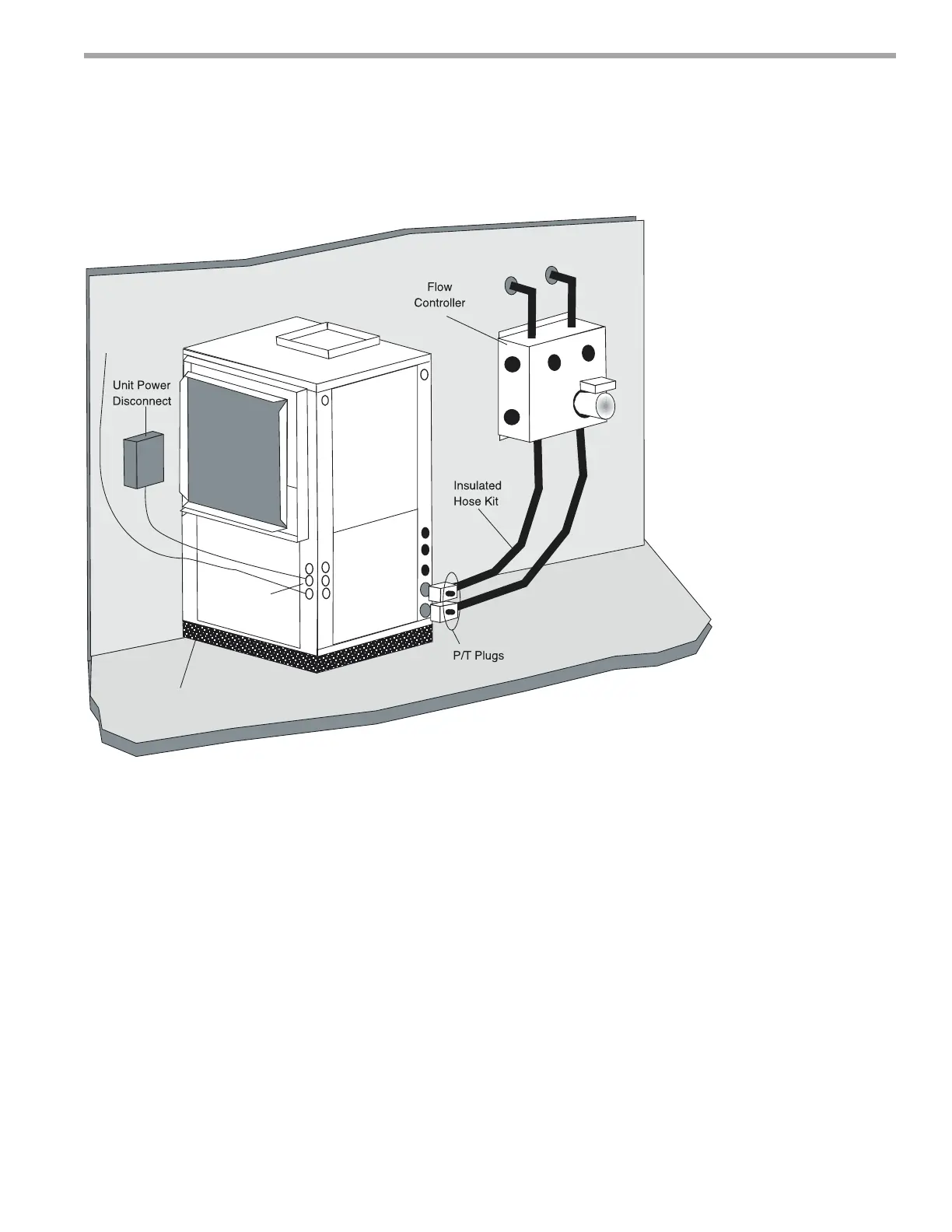

Figure 13: Typical Ground-Loop Application
High and
Low Voltage
Knockouts
Vibration Isolation Pad
To Thermostat
