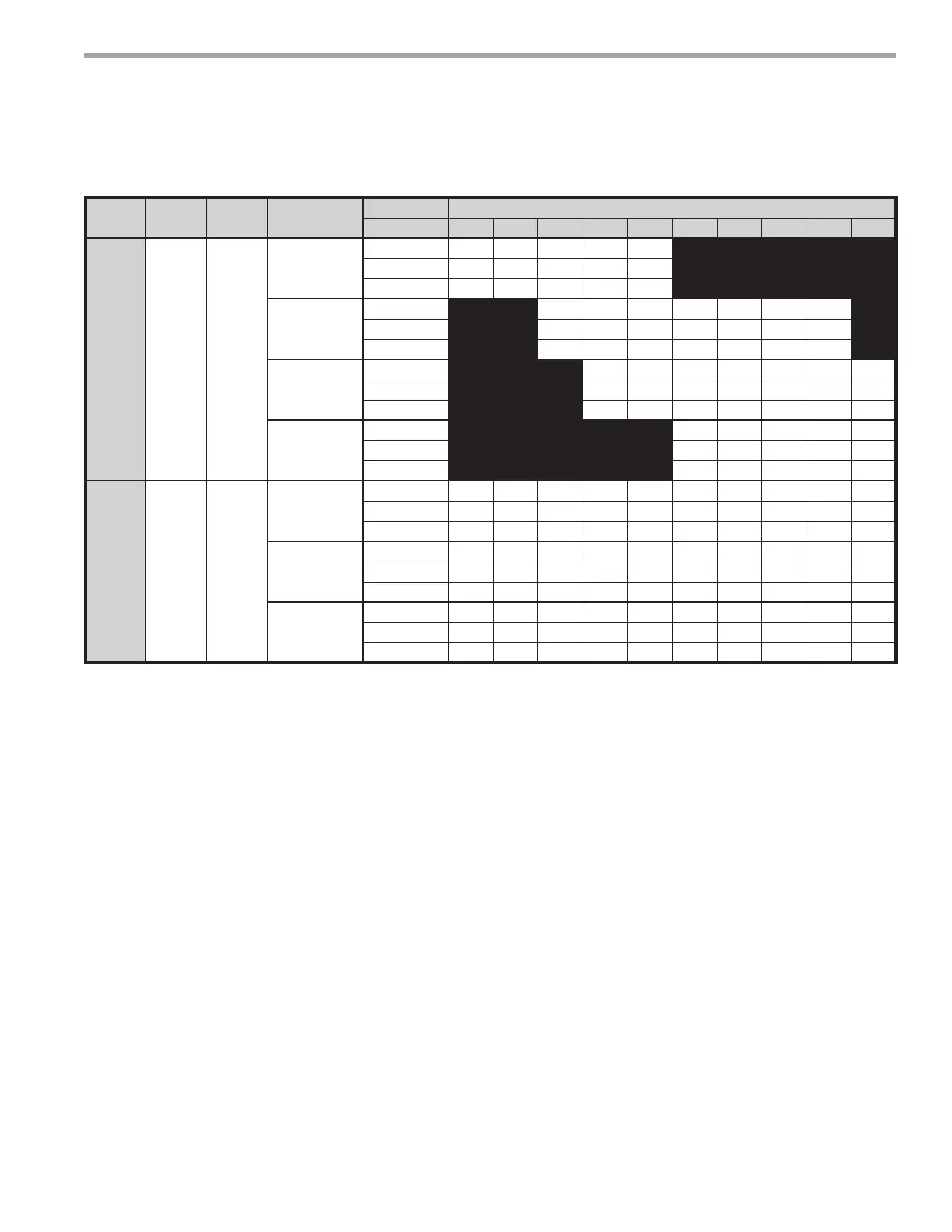

Blower Performance Data – TR Hybrid 006
Rated
CFM
Min CFM
Motor
Type
Motor Speed
Setting
External Static Pressure (in. wg)
0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0
225 150
ECM -
Constant
Torque
1
RPM 1019 1081 1165 1240 1322
Power (W) 30 33 35 37 40
CFM 228 211 190 168 158
2
RPM 1265 1336 1418 1475 1545 1616 1686
Power (W) 45 48 50 53 55 58 60
CFM 241 228 211 191 179 167 159
3
RPM 1381 1454 1522 1583 1646 1715 1782
Power (W) 57 60 61 64 66 68 70
CFM 247 235 220 202 190 180 169
4
RPM 1559 1624 1683 1741 1806
Power (W) 71 74 76 78 80
CFM 244 232 220 210 195
225 150
ECM -
Constant
Volume
Minimum CFM
RPM 926 1027 1124 1231 1343 1434 1531 1638 1740 1841
Power (W) 20 25 30 35 40 45 50 55 60 65
CFM 150 150 150 150 150 150 150 150 150 150
Default CFM
RPM 1029 1137 1248 1353 1456 1569 1680 1785 1893 2001
Power (W) 40 45 50 55 60 65 70 75 80 85
CFM 225 225 225 225 225 225 225 225 225 225
Maximum CFM
RPM 1084 1185 1285 1386 1487 1587 1687 1788 1888 1989
Power (W) 33 41 50 56 60 71 80 86 93 101
CFM 250 250 250 250 250 250 250 250 250 250
Interpolation is permissible; extrapolation is not.
All performance is based upon the lower voltage of dual voltage rated units.
Performance stated is at the rated power supply; performance may vary as the power supply varies from the rated.
See performance correction tables for operating conditions other than those listed above.
