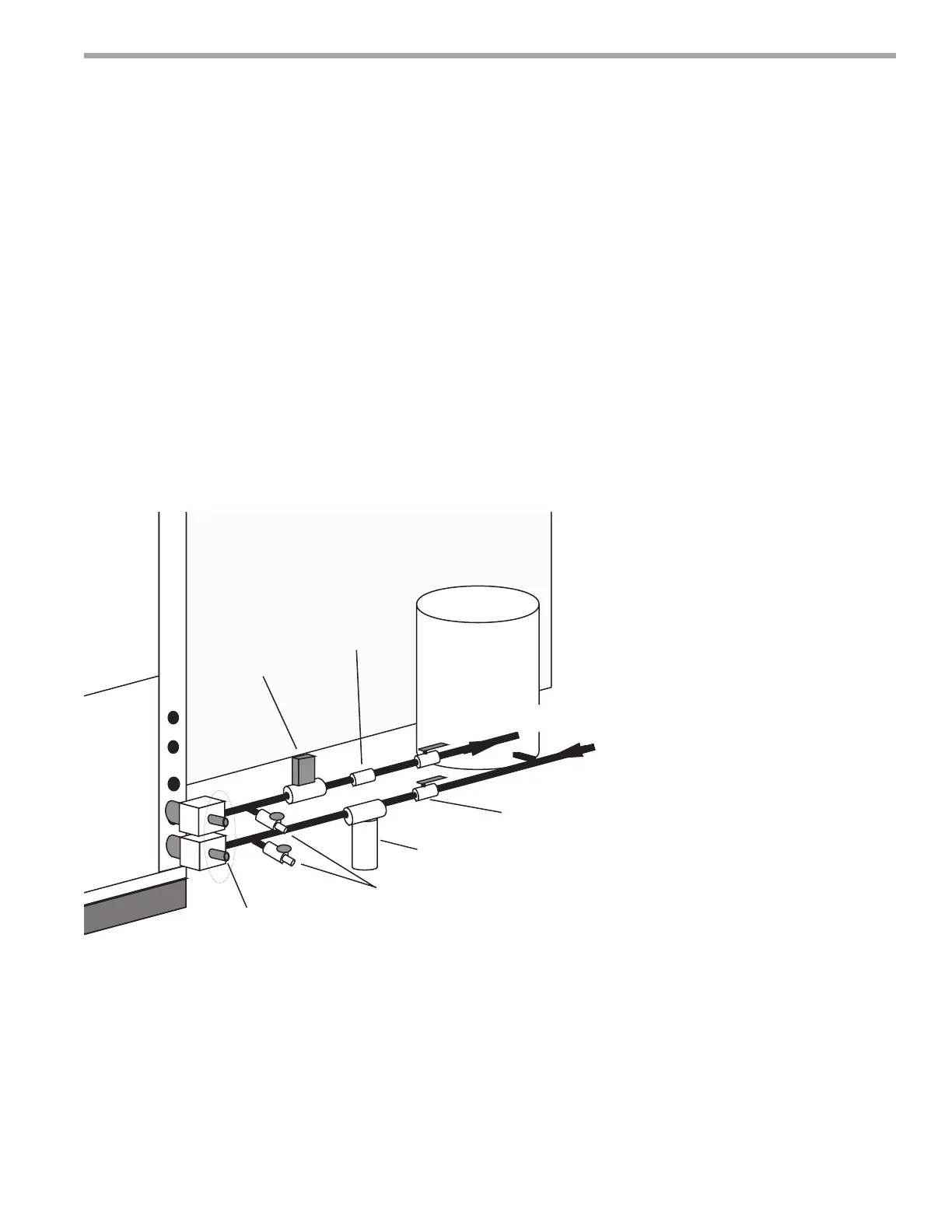

Figure 14: Typical Open Loop/Well Application
Tanque de
Presión
Válvula
de Retención
Drenajes
de Caldera
Regulador
de Flujo
Entrada
de Agua
Salida de Agua
Válvula
Filtro
Opcional
Tapones P/T
Vibration
Isolation Pad
Unit Power
Disconnect
High and low
voltage
knockouts
Pressure
Tank
Shut-Off
Va lve
Boiler
Drains
Flow
Regulator
Water In
Water Out
Water
Control
Va lve
Optional
Filter
P/T Plugs
To Thermostat
Ground-Water Heat Pump Applications
Flow Regulation - Flow regulation can be accomplished
by two methods. One method of ow regulation involves
simply adjusting the ball valve or water control valve on
the discharge line. Measure the pressure drop through
the unit heat exchanger, and determine ow rate from
Table 9. Since the pressure is constantly varying, two
pressure gauges may be needed. Adjust the valve until
the desired ow of 1.5 to 2 gpm per ton [2.0 to 2.6 l/m
per kW] is achieved. A second method of ow control
requires a ow control device mounted on the outlet of
the water control valve. The device is typically a brass
tting with an orice of rubber or plastic material that is
designed to allow a specied ow rate. On occasion, ow
control devices may produce velocity noise that can be
reduced by applying some back pressure from the ball
valve located on the discharge line. Slightly closing the
valve will spread the pressure drop over both devices,
lessening the velocity noise.
Note: When EWT is below 50°F [10°C], 2 gpm per
ton (2.6 l/m per kW) is required.
Water Coil Low Temperature Limit Setting - For all
open loop systems the 30°F [-1.1°C] LT1 setting (factory
setting-water) should be used to avoid freeze damage to
the unit. See “Low Water Temperature Cutout Selection”
in this manual for details on the low limit setting.
