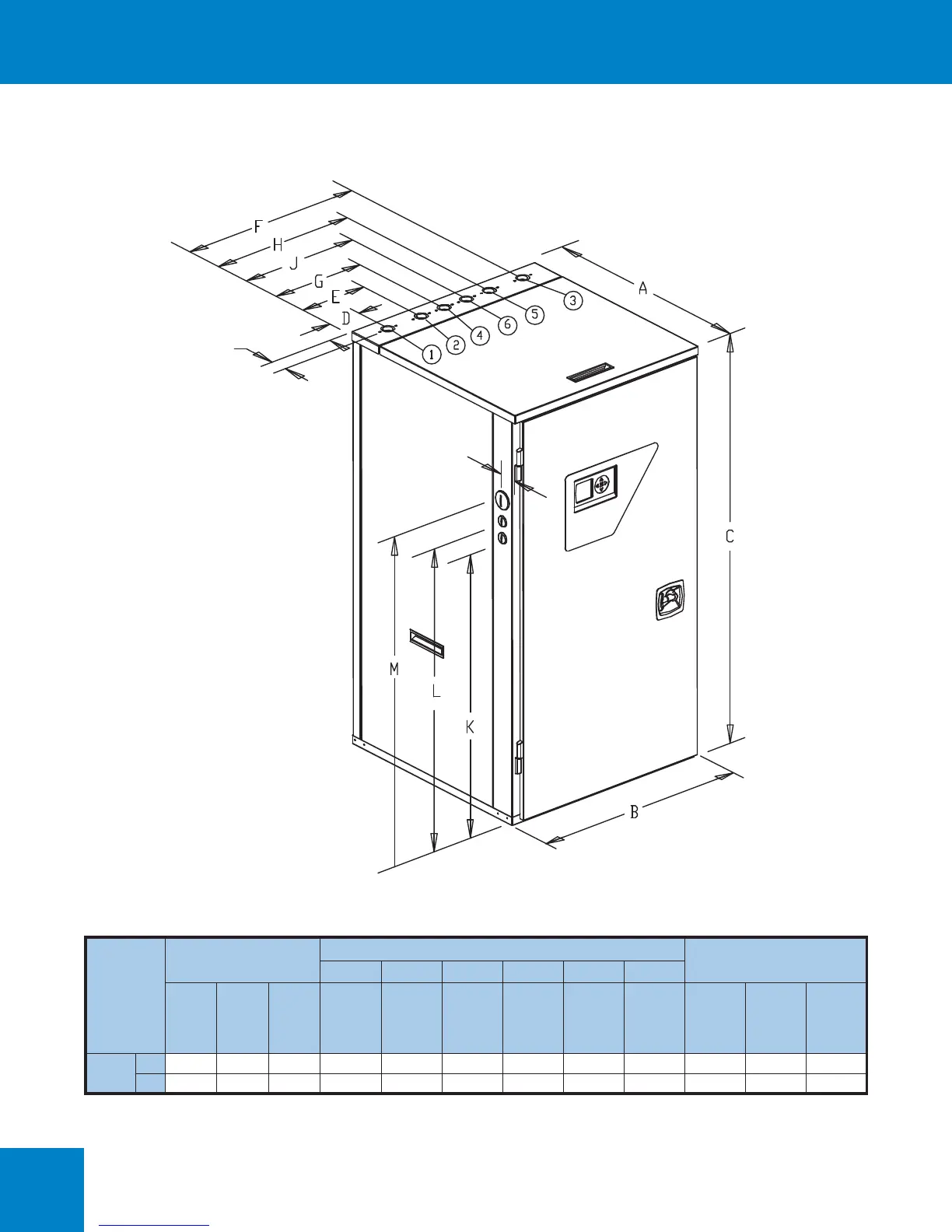

THW Dimensions
1.9” [4.9cm]
2.1” [5.3cm]
Model
Overall Cabinet
Water Connections
Electric Access Plugs
123456
A
Depth
B
Width
C
Height
D
Source
(Outdoor)
Water In
E
Source
(Outdoor)
Water Out
F
Load
(Indoor)
Water In
G
DHW
Water Out
H
Load
(Indoor)
Water Out
J
DHW
Water In
K
Low
Voltage
L
Low
Voltage
M
Power
Supply
010
in. 26.8 25.6 48.9 3.4 8.1 22.3 11.3 17.7 14.4 33.6 35.6 38
cm. 68.1 65.1 124.2 8.6 20.6 56.6 28.7 45 36.6 85.3 90.4 96.5
