CLIMAVENETA EVOLUTION - Flow Charts for Accessing Screens; Main Loop Screens Flowchart

7
English
TERMINAL EVOLUTION

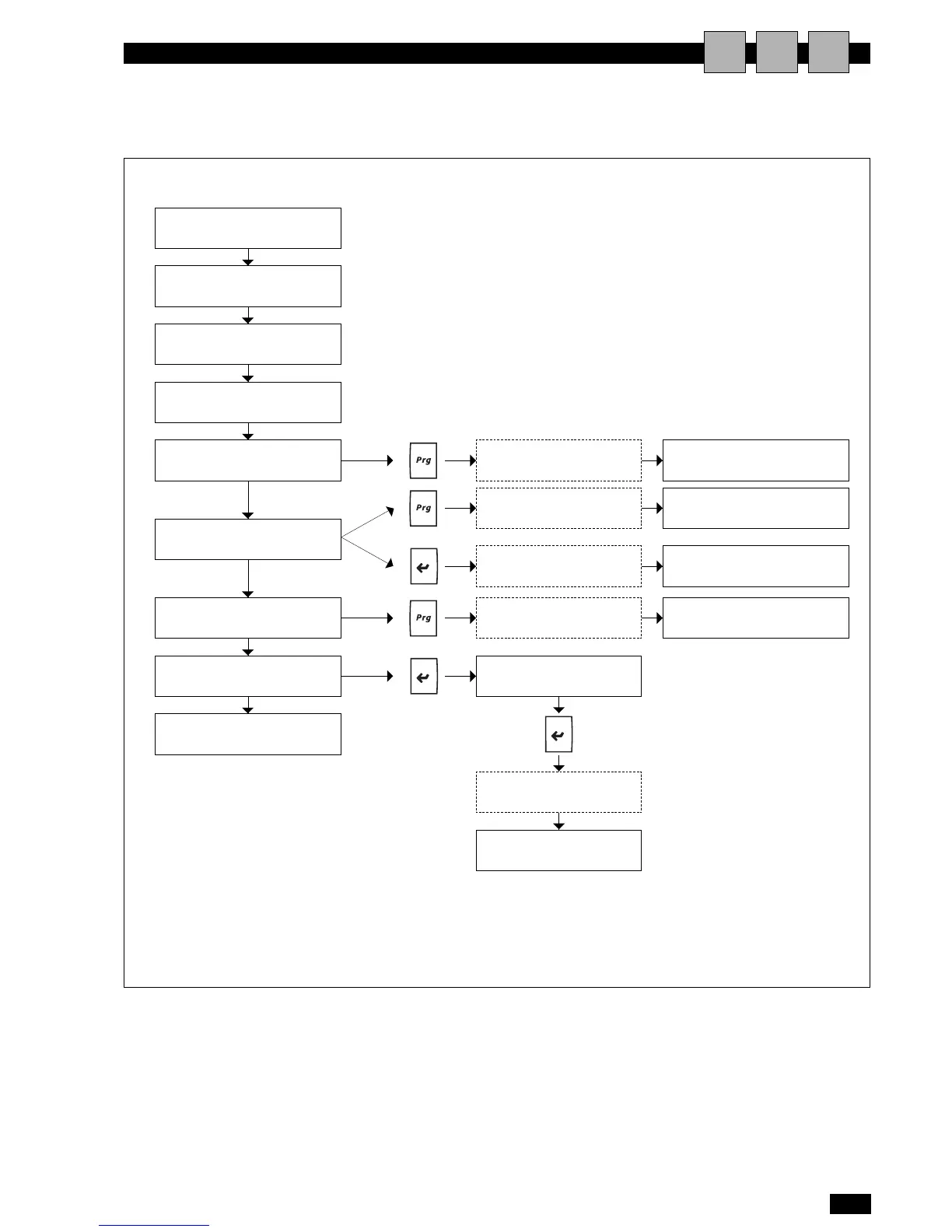

FLOW CHARTS FOR ACCESSING THE SCREENS
AIU
MAIN SCREEN
Water valve status
Optional probe readings
LAN status
Humidifier status
Set points
Operating hours
Number of starts
Log access
Software INFO
MAIN LOOP SCREENS
User PASSWORD
Change set point
Change proportional band
User PASSWORD Reset number of starts
Display alarm log
Manufacturer PASSWORD
Delete alarm log
User PASSWORD Change maintenance threshold
User PASSWORD Reset operating hours
A
B
C
D
E
F
G
H
NB: le maschere sopra indicate riportano al loro interno
solo indicaziioni ad icone grafiche
