9 - MAINTENANCE
Do not use solvents or detergents to clean the plastic compo-
nents.
For descaling use a vinegar or acetic acid solution at 20%,
subsequently rinsing with water
PERIODICAL CHECKS
15
days
Cylinder:
not over 300 hours of work
checking operation, general state, no leaks
90
days
Cylinder:
not over 1000 hours of work
checking operation, general state, no leaks, any
replacement
1 year
Cylinder:
not over 2500 hours of work (disposable cylinders)
Load solenoid valve replacement: disconnect
electric power supply, dismantle valve, clean the
drain solenoid valve filter:
disconnect electric power supply, remove reel and
dismantle valve body and any impurity and rinse
the power supply bowl, piping:
check they are free and without impurities
5 years
Cylinder:
not over 10000 hours of work (inspectional
cylinders)
replacement
HUMIDIFIER CYLINDER DRAINAGE
Cylinder must be drained in these situations:
 cleaning of the cylinder
 emptying of the cylinder to avoid ice forming
 replacement of the cylinder
The manual drainage is carried out by means of selector SA7:
see ELECTRIC CONNECTIONS chapter.
REPLACEMENT OF THE CYLINDER
To remove the cylinder: :
 completely drain the water
 Interrupt power supply voltage of humidifier by means of
the unit isolator
 remove the vapour pipe from the cylinder
 disconnect the electric connections of the electrodes and
remove the pins from the high level electrodes.
 loosen the ring nut to remove the pipe unions and the filter
(when filter is outside the cylinder)
 lift the cylinder to remove it
Before mounting it :
 the filter body does not require replacing, wash it with
water and remount it on the new cylinder, using the new
gasket provided with the latter

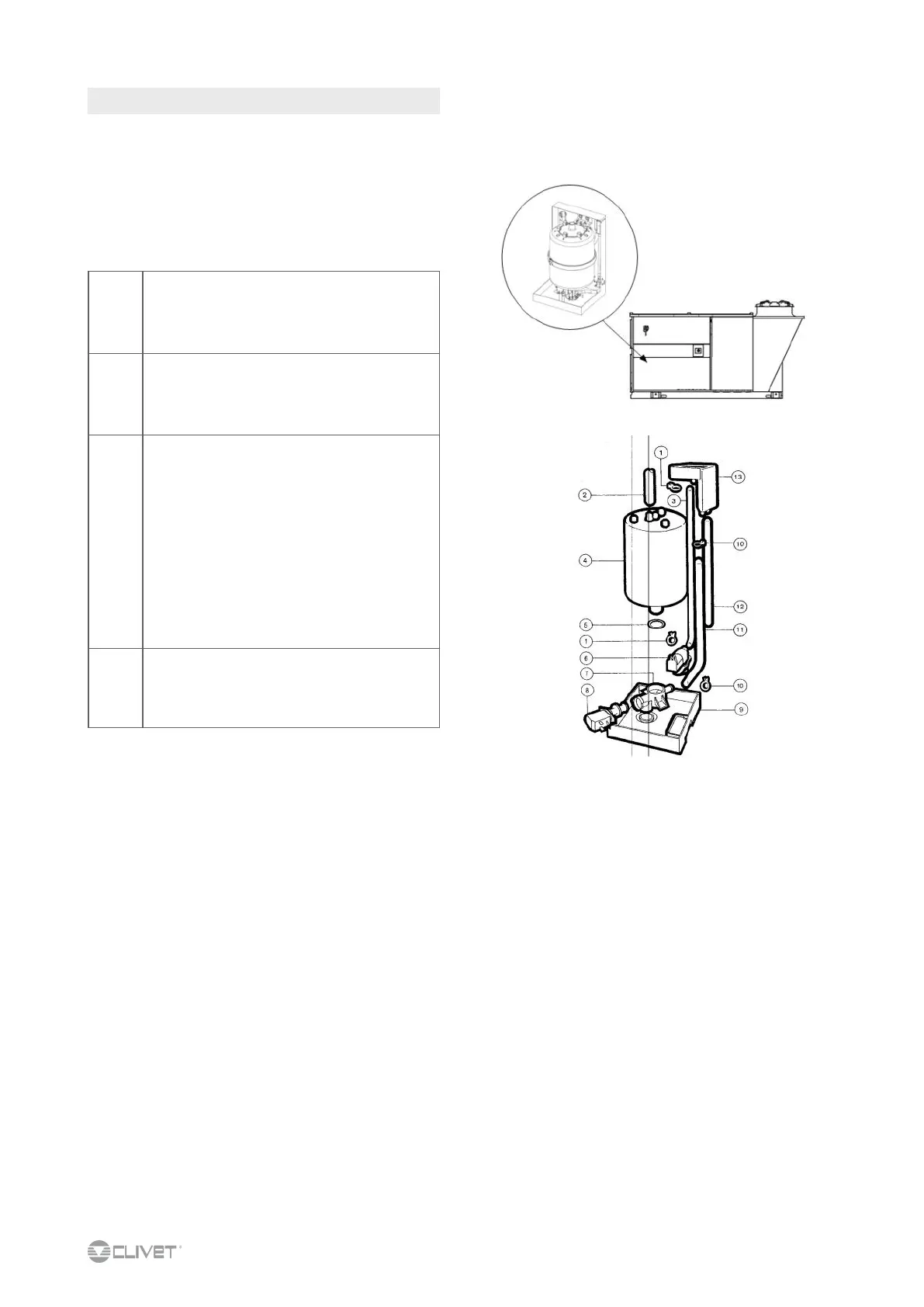

1. pipe fixing spring
2. vapour pipe
3. load pipe
4. vapour cylinder
5. seal O-rings
6. load valve
7. valves support
8. drain valve
9. bottom tank
10. pipe fixing spring
11. load pipe
12. too full pipe
9.11 Immerged electrodes humidifier- option
 check the seal gasket between the cylinder and the drain
unit
 remount the cylinder repeating the operations in reverse
order
