7
 difficulty of exchange
 leaves or other bodies that can obstruct the exchange
coils
 winds contrasting or favouring the air flow
 heat sources near the unit (chimneys, extractors, etc.)
 sources of dust or pollutants
 stratification (cold air that stagnates at the bottom)
 recirculation (ejected air that is taken back via suction)
 positioning underneath the ground level, near very
high walls, underneath roofs or in corners (can give
rise to stratification or recirculation phenomena).
Neglecting the previous indications can lead to:
 worsening of the energy efficiency.
 blocks due to HIGH PRESSURE (in summer) or LOW
PRESSURE (in winter).
Avoid snow and ice accumulation in front of the external air
outlets and of the exhaust air ejection.
1 strisce in neoprene di spessore 2 cm
2 platea in calcestruzzo
3 solaio
3 - POSITIONING
!
i
The functional spaces have the aim of:
 guarantee good operation of the unit
 allow maintenance operations
 protect the authorised operators and exposed
persons.
Respect the functional spaces indicated in the TECHNICAL
INFORMATION chapter
Double the functional spaces if more units are aligned.
The units have been designed to be installed :
 OUTDOORS
 INDOORS (OPTION)
 in permanent position.
Choose the place of installation depending on the following
criteria:
 level of sound emissions admitted by the local
standards
 Customer approval
 safely accessible position
 technical spaces requested by the unit
 maximum distance admitted from the electric
connections
 support points with adequate capacity for the unit
weight
 spaces for air ejection and suction
 disposal of condensate water
Prefer places where the unit does not disturb neighbours.
Avoid snow accumulating obstructing the coils
Avoid places that may be subject to floodings
Install the unit lifted from the ground.
Protect the unit with suitable fence in order to avoid
access to unauthorised personnel (children, vandals, etc.)
Limit the transmission of vibrations:
 use anti-vibration devices or neoprene strips on the
unit support points
 install flexible joints on the hydraulic connections
 install flexible joints on the aeraulic connections.
A correct air circulation on the coil is essential to guarantee the
good operation of the machine.
Avoid:
 obstacles to air flow (strong prevailing winds, hedges,
fences, etc.)
!
Work respecting the current safety standards.
For detailed information (dimensions, weights, technical
features, etc.) refer to the TECHNICAL INFORMATION
chapter.
To perform the operations use the protective equipment:
gloves, goggles, etc.
3.1 Preliminary information
3.2 Functional spaces

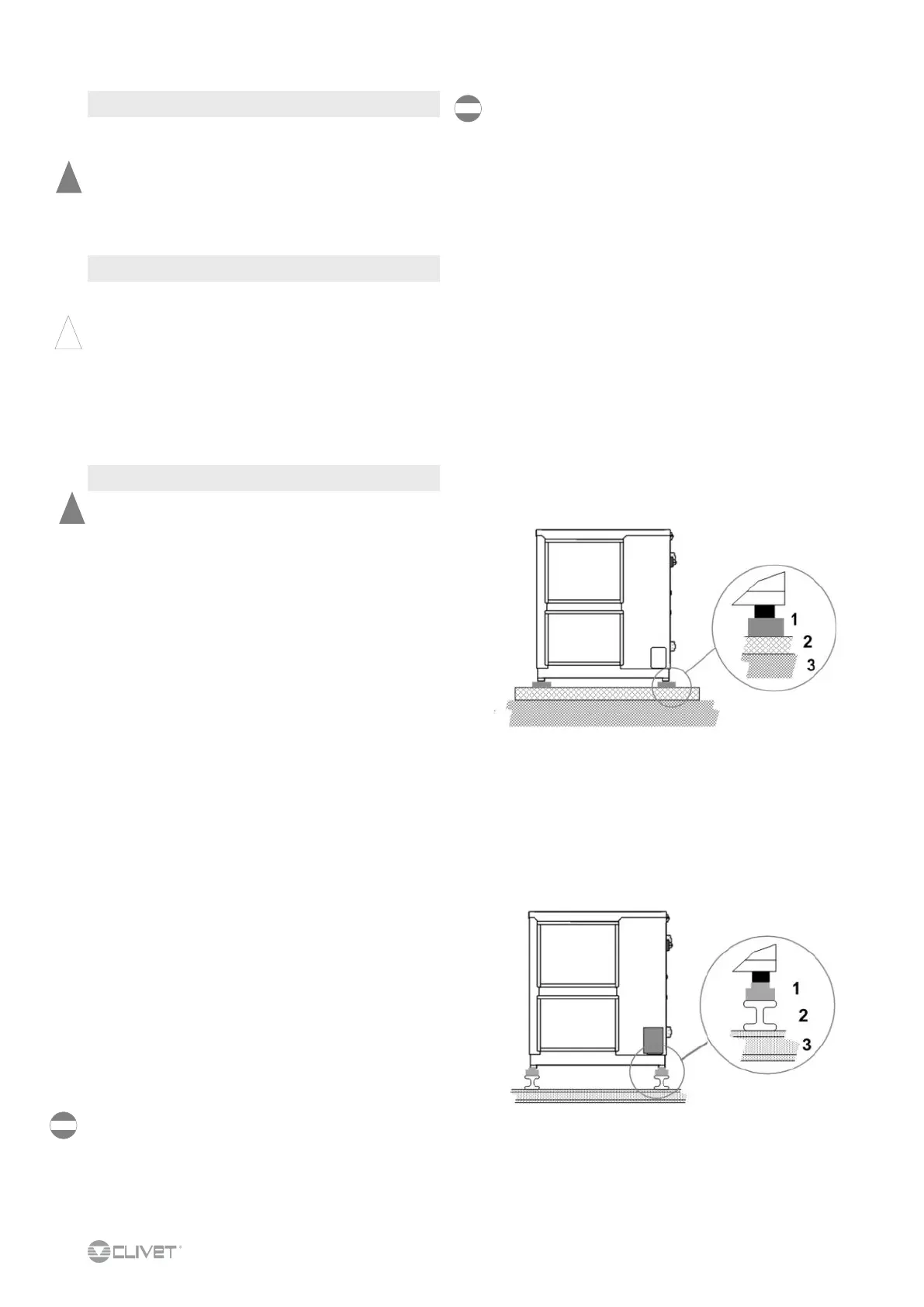

3.3 Positioning
Positioning on concrete floor
1 anti-vibration devices
2 steel structure
3 steel structure
Positioning on steel structure
