SIZE 2
DAA5Gsize2_0
Date: 21/09/2012

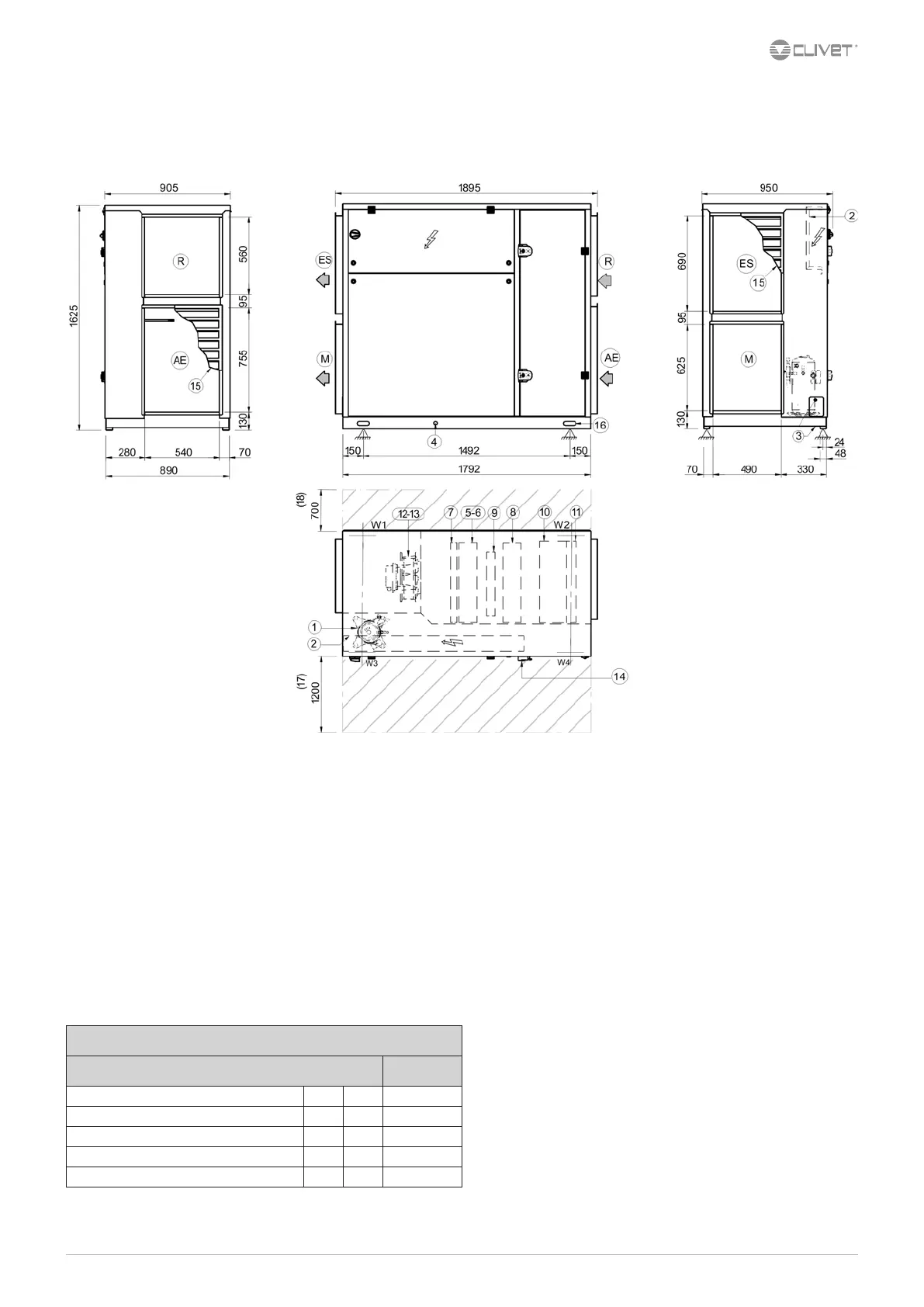

(1) Capacity modulating compressor
(2) Electrical panel
(3) Power input
(4) Condensation drain pipe Ø 20 mm
(5) Standard outdoor air exchanger (below)
(6) Exhaust air standard exchanger (above)
(7) Capacity modulating post-heating with hot gas recovery
(8) Hydronic recovery device for extended operating range (Optional)
(9) Electrical heaters
(10) Electronic lters
(11) Class G4 air lters on outdoor and exhaust air
(12) Supply fan (below)
(13) Exhaust fan (above)
(14) Air lters access
(15) Grid for indoor installation (Optional)
(16) Lifting holes
(17) Functional spaces
(18) If the unit is placed against the wall provide the space for the replacement of the roof electric fan
(R) Return Air
(M) Supply Air
(AE) Outdoor air intake
(ES) Exhaust air
WEIGHT DISTRIBUTION
Size Size 2
W1 Supporting Point kg 110
W2 Supporting Point kg 115
W3 Supporting Point kg 116
W4 Supporting Point kg 109
Shipping weight kg 450
