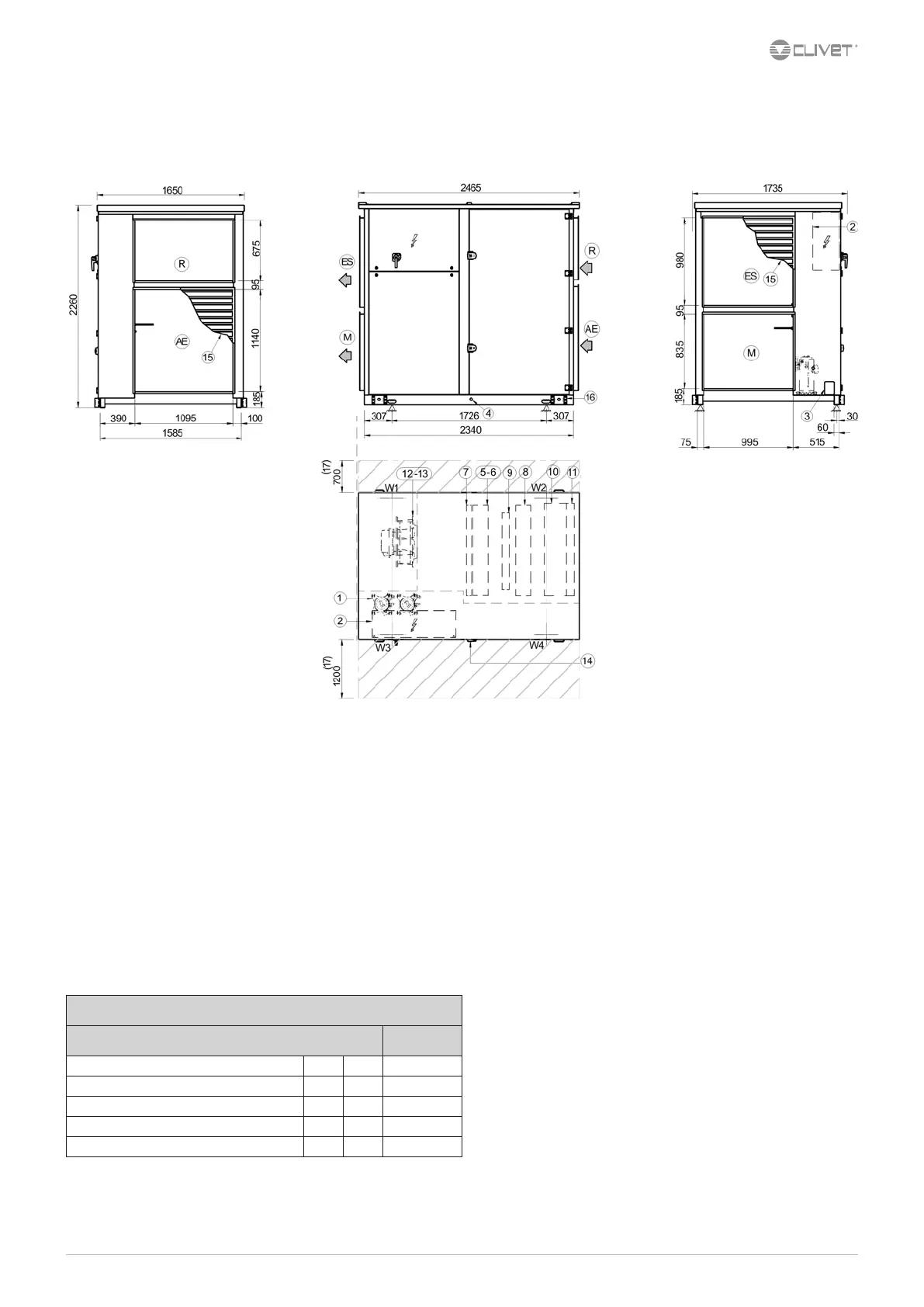

Size 4
DAA5Gsize4_0
Date: 21/09/2012
(1) Capacity modulating compressor
(2) Electrical panel
(3) Power input
(4) Condensation drain pipe Ø 20 mm
(5) Standard outdoor air exchanger (below)
(6) Exhaust air standard exchanger (above)
(7) Capacity modulating post-heating with hot gas recovery
(8) Hydronic recovery device for extended operating range (Optional)
(9) Electrical heaters
(10) Electronic lters
(11) Class G4 air lters on outdoor and exhaust air
(12) Supply fan (below)
(13) Exhaust fan (above)
(14) Air lters access
(15) Grid for indoor installation (Optional)
(16) Support brackets (can be removed after the unit is positioned)
(17) Functional spaces
(18) If the unit is placed against the wall provide the space for the replacement of the roof electric fan
(R) Return Air
(M) Supply Air
(AE) Outdoor air intake
(ES) Exhaust air
WEIGHT DISTRIBUTION
Size Size 4
W1 Supporting Point kg 312
W2 Supporting Point kg 328
W3 Supporting Point kg 347
W4 Supporting Point kg 299
Shipping weight kg 1285
