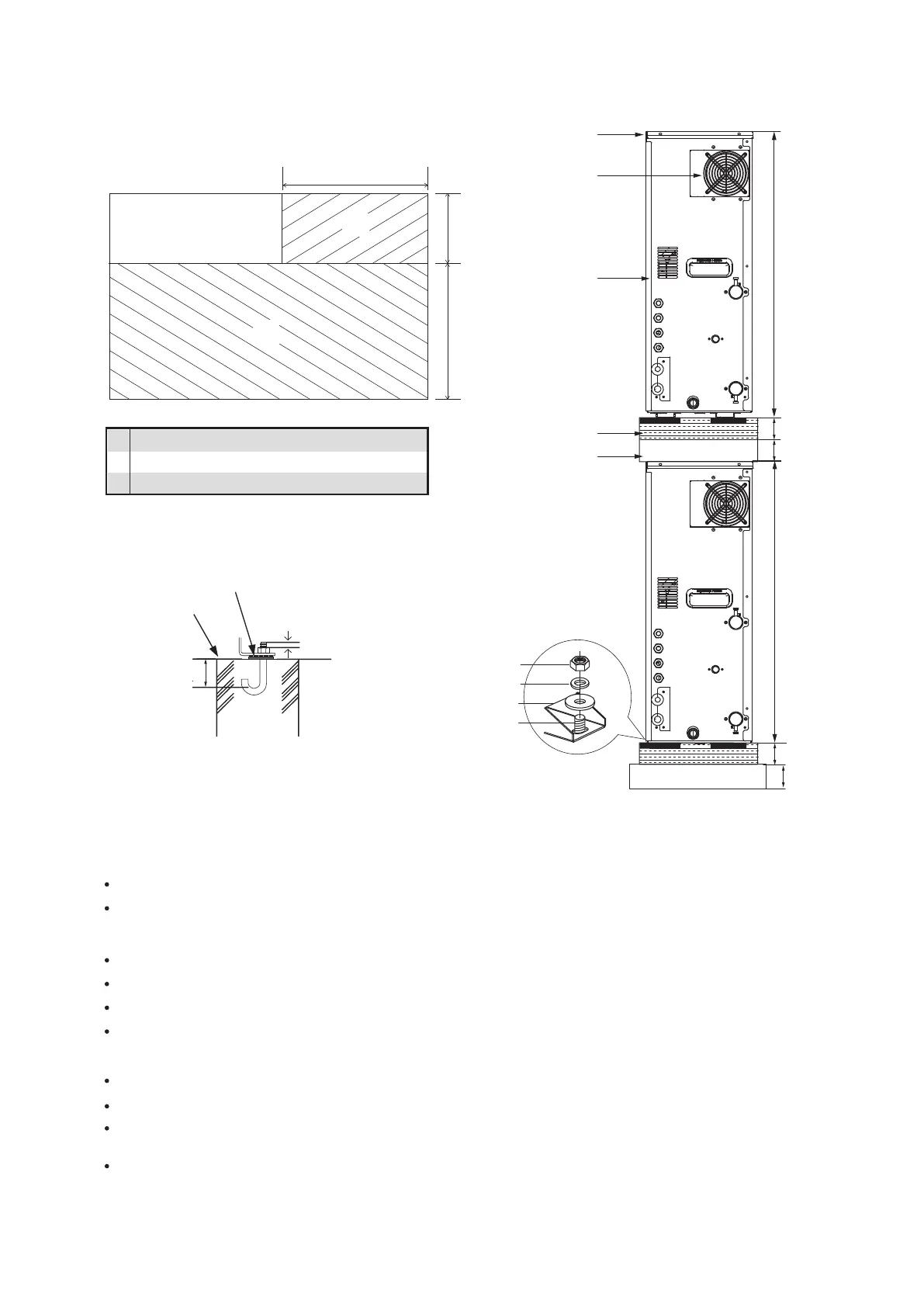

4.3 Installation Space
A
a
b
c
C
B
795100
100
795
100
100
Space
Air inlet
Air outlet
Space
Anti-vibration material
A
B
C
Hydro module unit
Space for installing piping (on the right side)
Space for installation and maintenance (in the front)
Flat washer
Anchor bolt
Spring washer
Nut
Anti-vibration material
Concrete base
Support
75(2-15/16)
3 or more screw
threads of the 2
bolts must be shown
General Precautions about Installation Sites
Select an installation site that meets the following conditions:
The floor that supports unit weight should be hard enough. The floor should be level to avoid vibration and noise.
The space around the unit should be wide enough for maintenance and repair. The space dimensions are as follows: a ≥ 400
mm; b ≥ 300 mm; c ≥ 600 mm. If double-layer installation is required, the upper and lower space between units should be
not less than 150 mm.
There should be enough space around the unit for ventilation.
If flammable gas leaks, ensure that there are no hazards that could lead to fire.
This unit is not designed to operate in an environment where explosions could occur.
Select the installation site according to the corresponding legal provisions. The noise should not affect any person. Carefully
select an installation site. Do not install the unit in an environment that is sensitive to sound, such as living rooms and
bedrooms.
If water leaks, the leakage should not cause damage to the installation site or the surroundings.
Take enough measures according to the corresponding legal provisions to deal with refrigerant leakage.
When the unit is installed in a small room, take measures to ensure that concentration of the leaking refrigerant cannot
exceed the allowed limit.
For applicances intended for use at altitudes exceeding 2000 m, the maximum altitude of use shall be stated.
H-Beam supporter
Concrete supporter
