CLIVET SCHIARA 2 User Manual

13
Installation

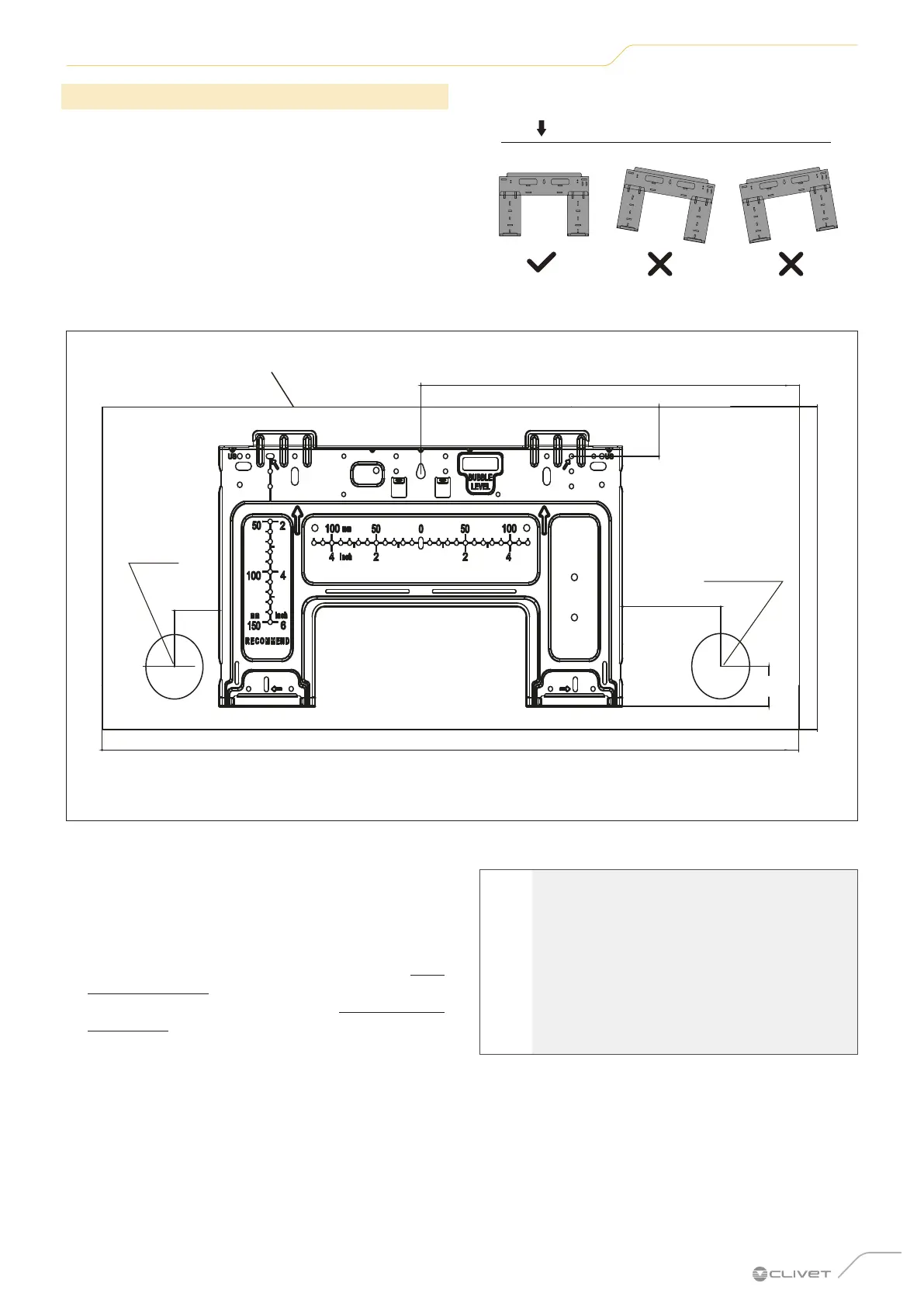

2.4.2 Mounting plate
MOUNTING PLATE DIMENSIONS
The mounting plate is used to fix the indoor unit to the
wall.
Correct orientation of the mounting plate
Modello 27M - 35M
Profilo dell’unità interna
Foro nel
muro
65 mm
Foro nel
muro
65 mm
920 mm
40 mm
410 mm
110 mm
50 mm
49 mm
321 mm
Fig. 5
FIX THE MOUNTING PLATE TO THE WALL
1 Remove the screw that fastens the mounting plate to
the back of the indoor unit.
2 Place the mounting plate on the wall in a position
that meets the requirements listed in paragraph “2.4.1
Installation room” (for detailed information on the
dimensions of the mounting plate see “Mounting plate
dimensions”.)
3 Drill the holes for the fixing screws in positions that:
– are strong enough and have sucient capacity to
support the weight of the unit
– match the holes in the mounting plate
4 Fix the mounting plate to the wall using the screws
provided.
5 Check that the mounting plate is in line against the
wall.
l
WARNING
If the wall is made of brick, concrete or similar
materials, drill holes with a diameter of 5 mm
and insert the anchors provided. Then fix the
mounting plate to the wall by tightening the
screws directly into the anchors.
If the wall is made of other materials, use
suitable fasteners and check that they are
properly sealed.
