10
3 - POSITIONING
3.5 OUTDOOR VERSION

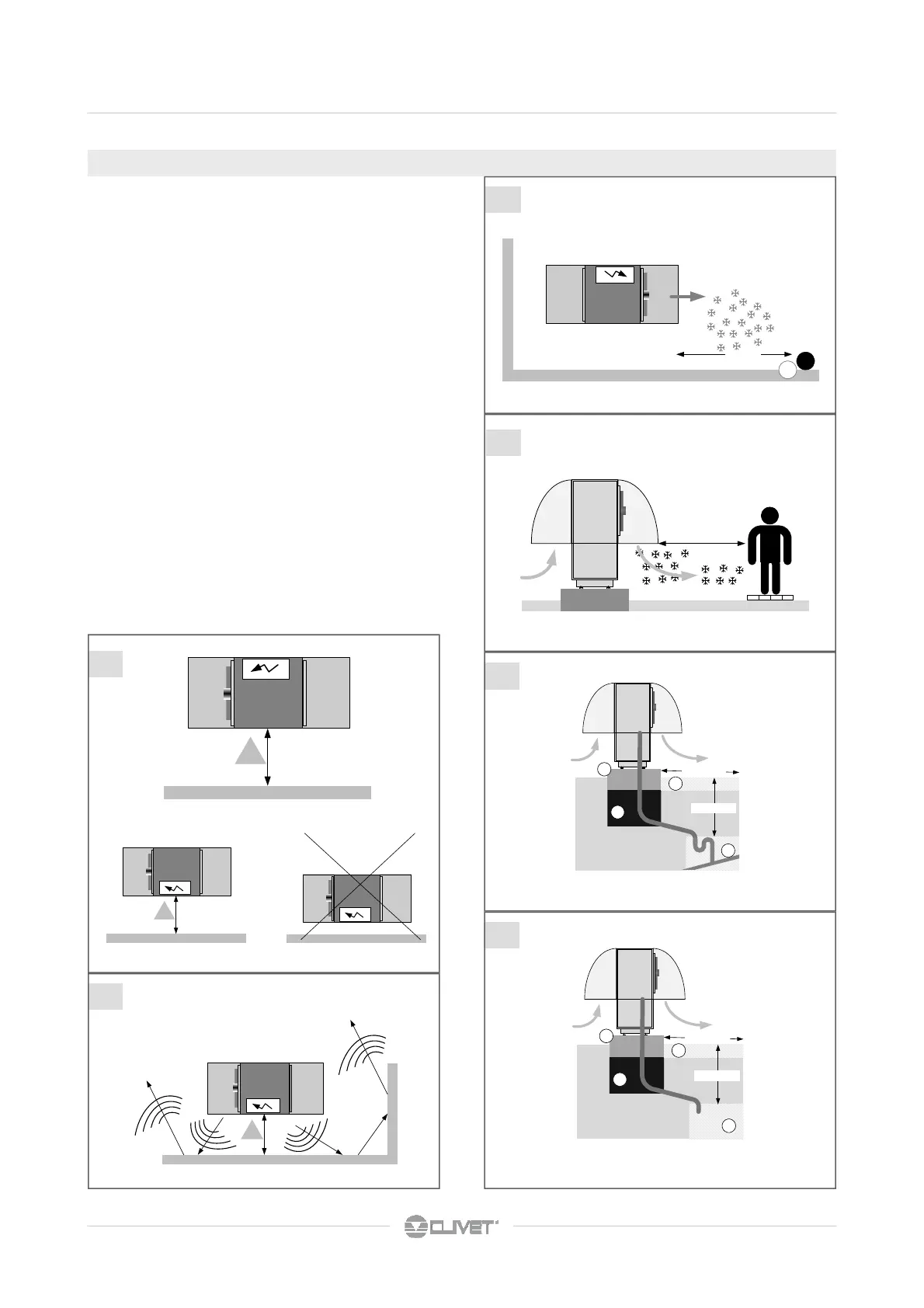

Please respect the clearances.(1)
If possible, position the unit so that the electrical panel is not
facing the wall.
The walls reflect and amplify noise emitted from unit : avoid
placing it in the corners (2).
In winter, the exhaust air from the unit reaches temperatures
below 0 ° C, with outside temperature of +10 ° C.
Maintain safe distances to avoid formation of frost on rain
water drains (3-A) and pedestrian walkways (4).
Provide (5):
• raised cement base (A)
• gravel for frost protection (B)
• gravel - crushed stone for exhaust air condensate
absorption ( C )
Dispose the condensate produced from unit in winter mode in
ducts (5-D) or wells (6-E) below the frost line ( 900 mm).
!
1,5 mt
3
1
4
2
!
!
1,5 mt
A
B
C
1000 mm
D
900 mm
A
5
B
C
1000 mm
E
900 mm
A
6
