11
10
8
7
9

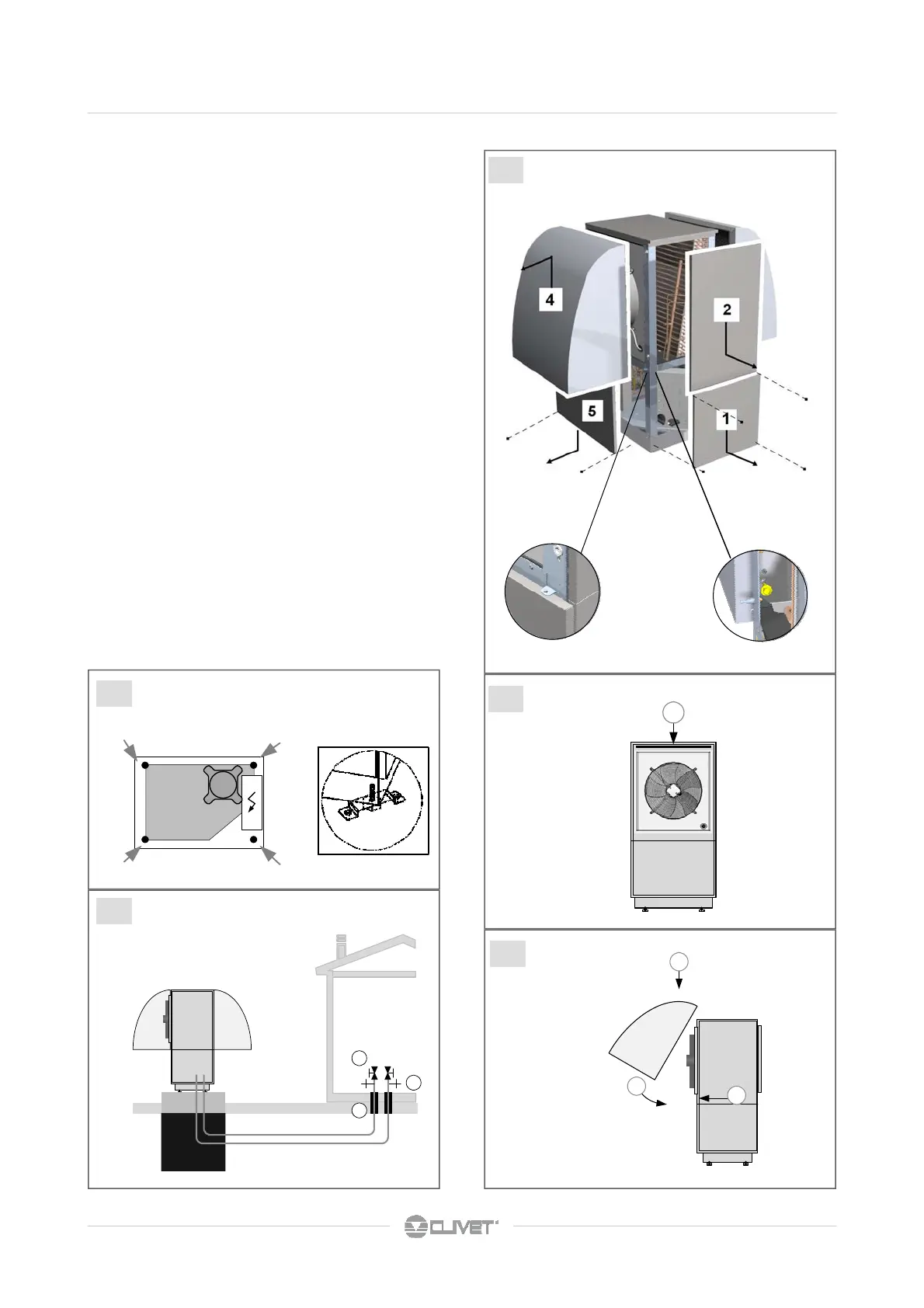

3 - POSITIONING
A
B
C
Anchor the unit to the ground with anchor bolts (7) so as to
ensure the stability to the wind.
Prepare for the water connections:
• shut-off valves (A)
• drain valves for vent by compressed air (B)
• through holes with flanges at water tight (C)
To access inside the unit ( 9 ) remove in sequence :
1 - lower lateral panels
loosen screws, lower panel, extract
2 - upper lateral panels
lower panel, extract
3 - casing fixing screw
4 - casing
turn up the casing, extract
5 - lower panels
loosen screws, lower panel, extract
CASING ASSEMBLY
1 Insert into the groove (10-1)
2 Pull down (11-2)
3 Push
4 Fix the casing from inside with the screws.
11
3
1
2
3
4
